ACL SR-219 Receiver

Technical data

The SR-219 is similar to the SR-209 and the SR-209C but with a smaller foot-print as it only includes one tuner slot and one IF strip.
The related tuner head series is displayed here.
The model displayed here has been modified before I got it. It may have been used for telemetry purpose as it included a XR2206 modem based extension.

Pictures

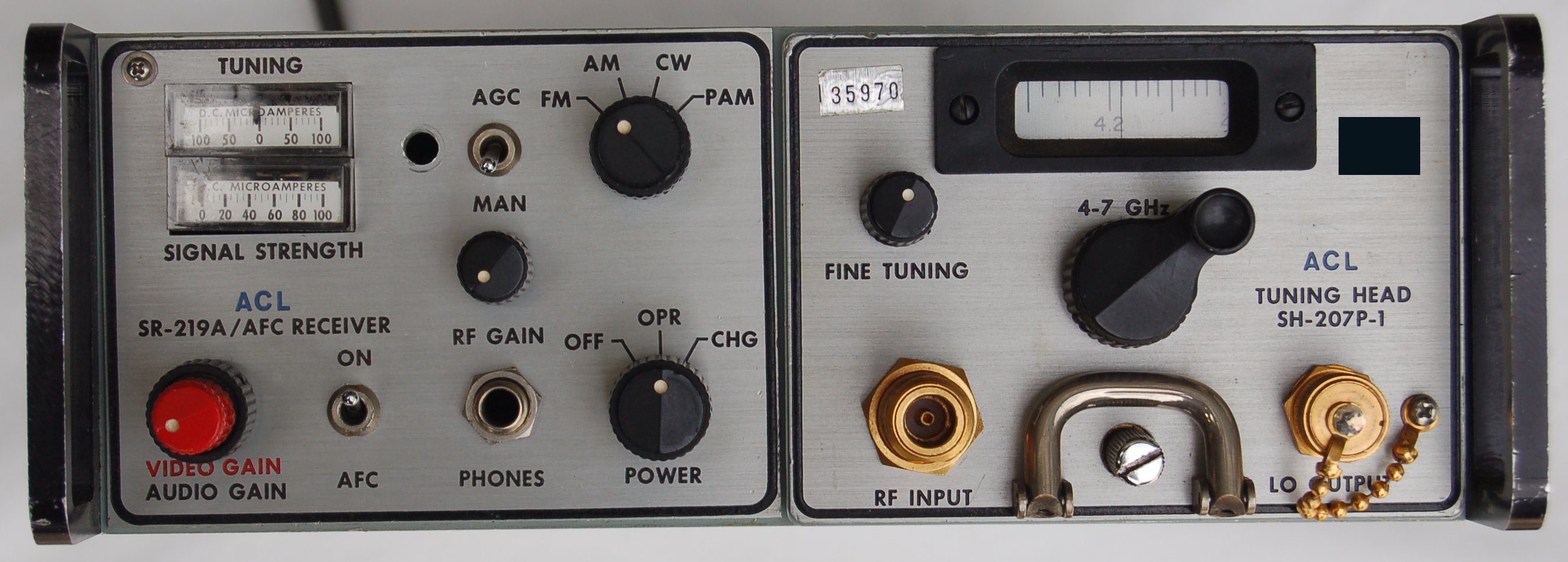

Front Face

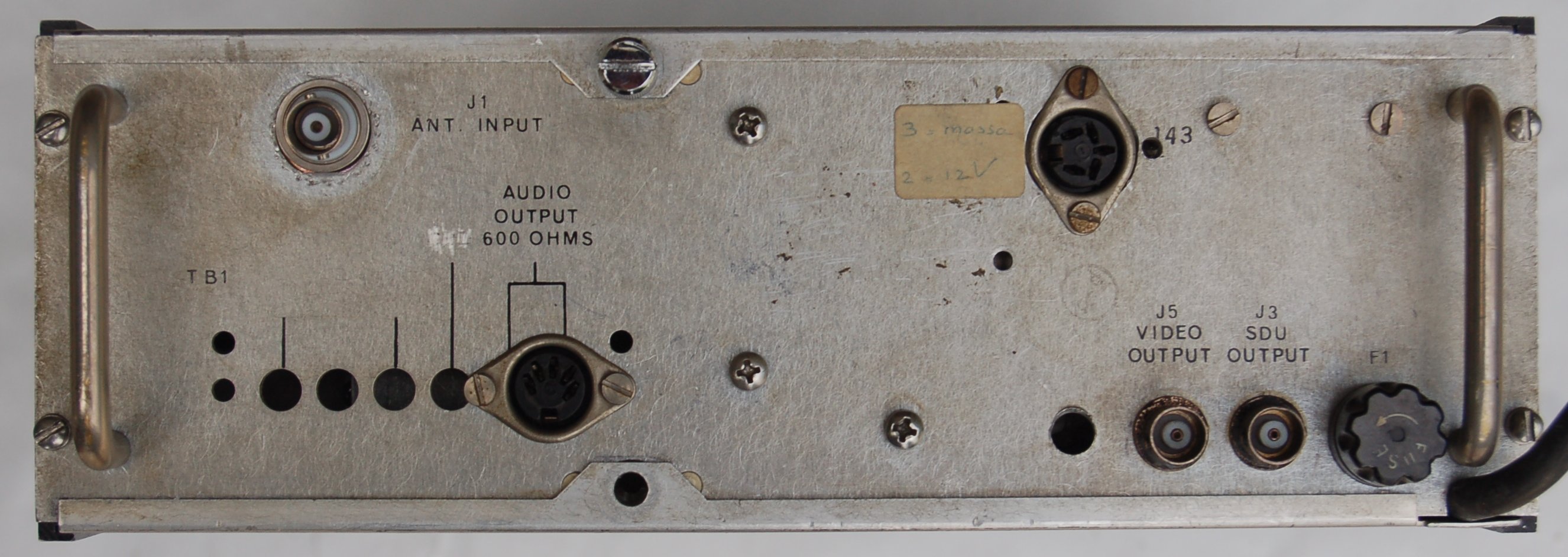

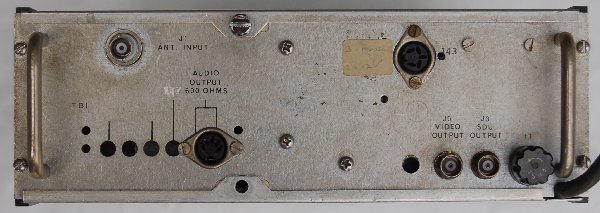

Rear view

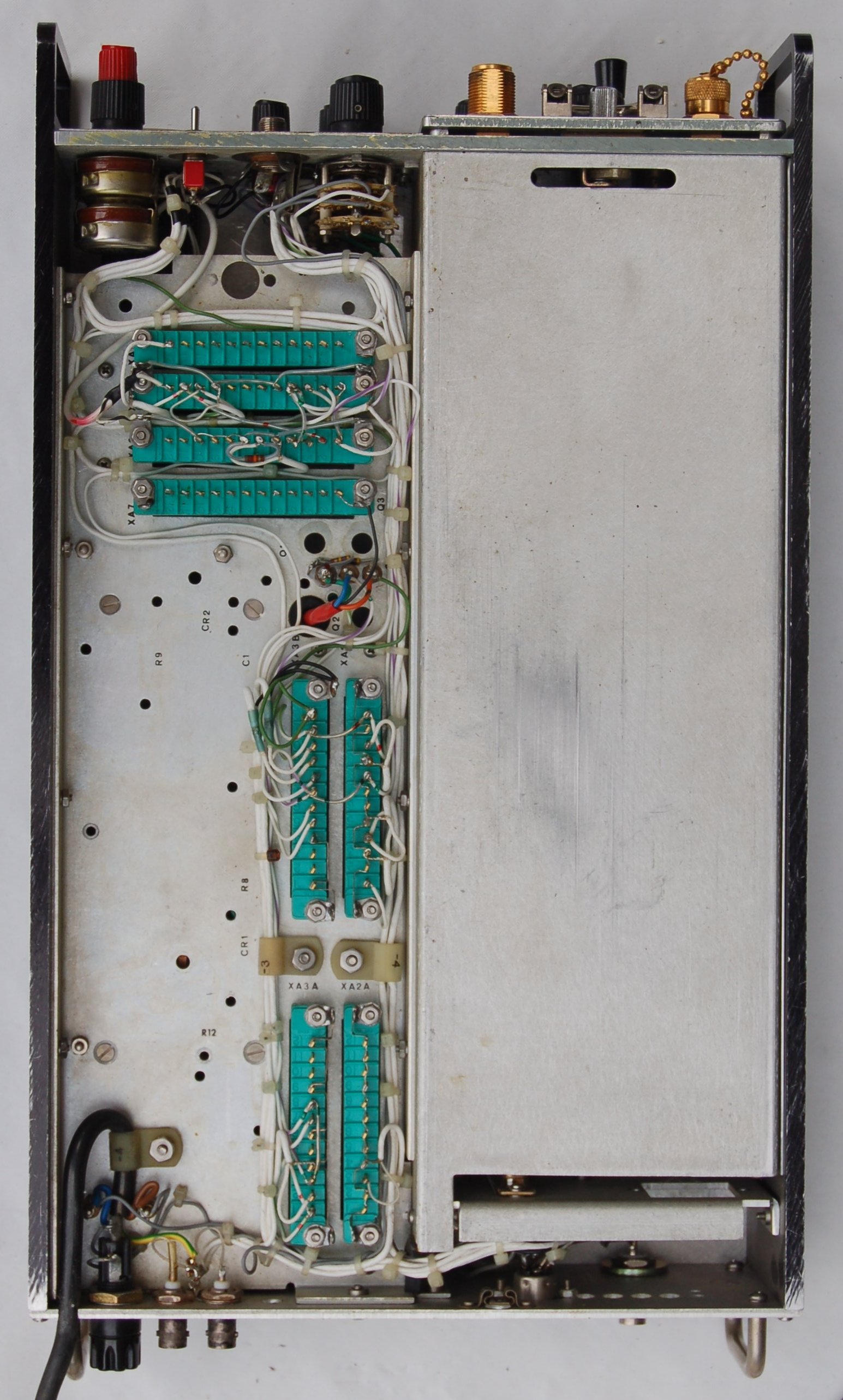

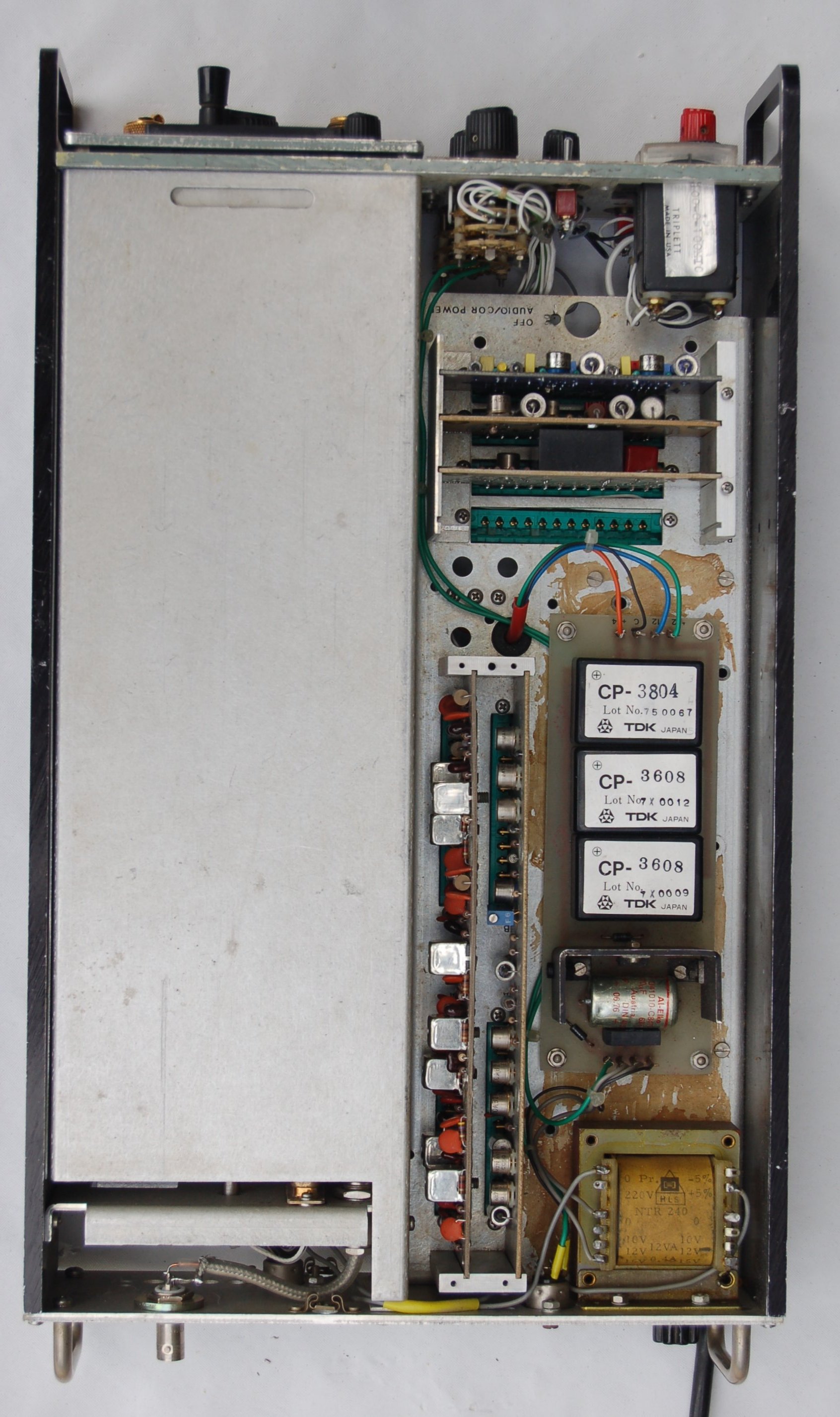

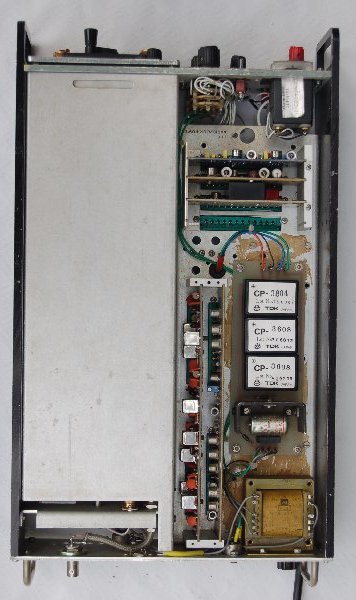

Upper view Under view


Last revision: 2011/08/28
