ACL SR-209 Receiver

Technical data

The SR-209 is an oldest version of the SR-209C and similar to the SR-219 the but with a larger foot-print.
It includes two slots for tuner units with the left one been able to accept a display unit. It allows adding up to three IF strips.
The related tuner head series is displayed here.

Pictures

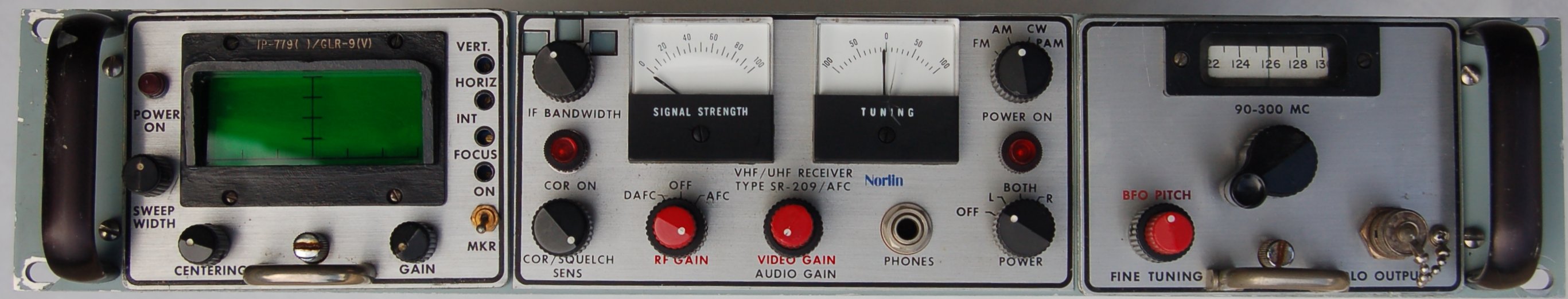

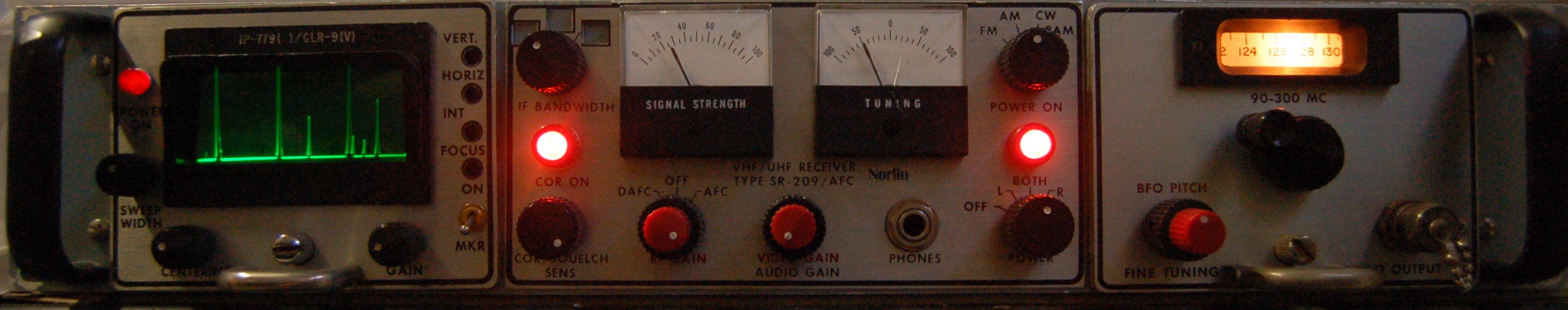

Front Face

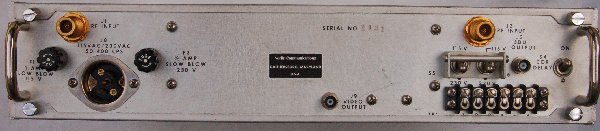

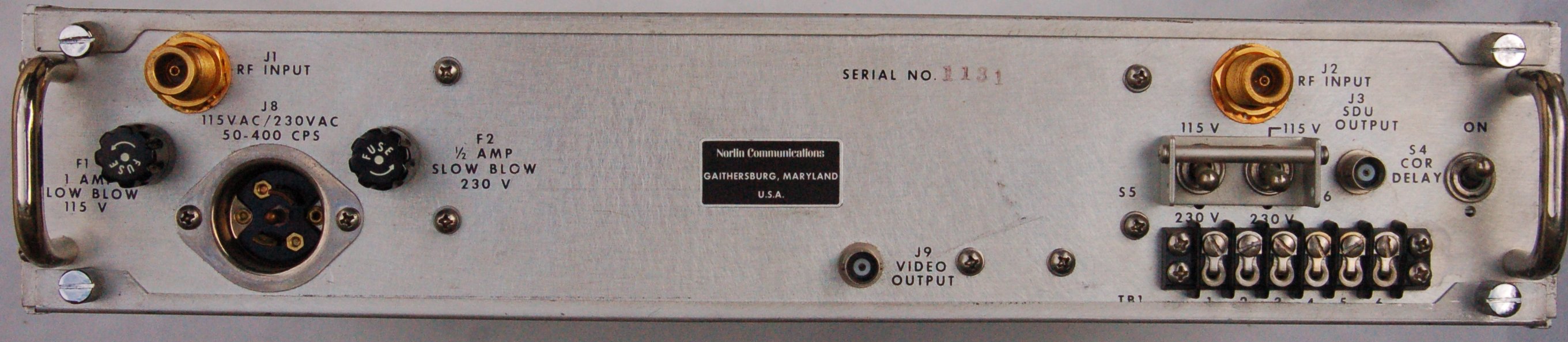

Rear view

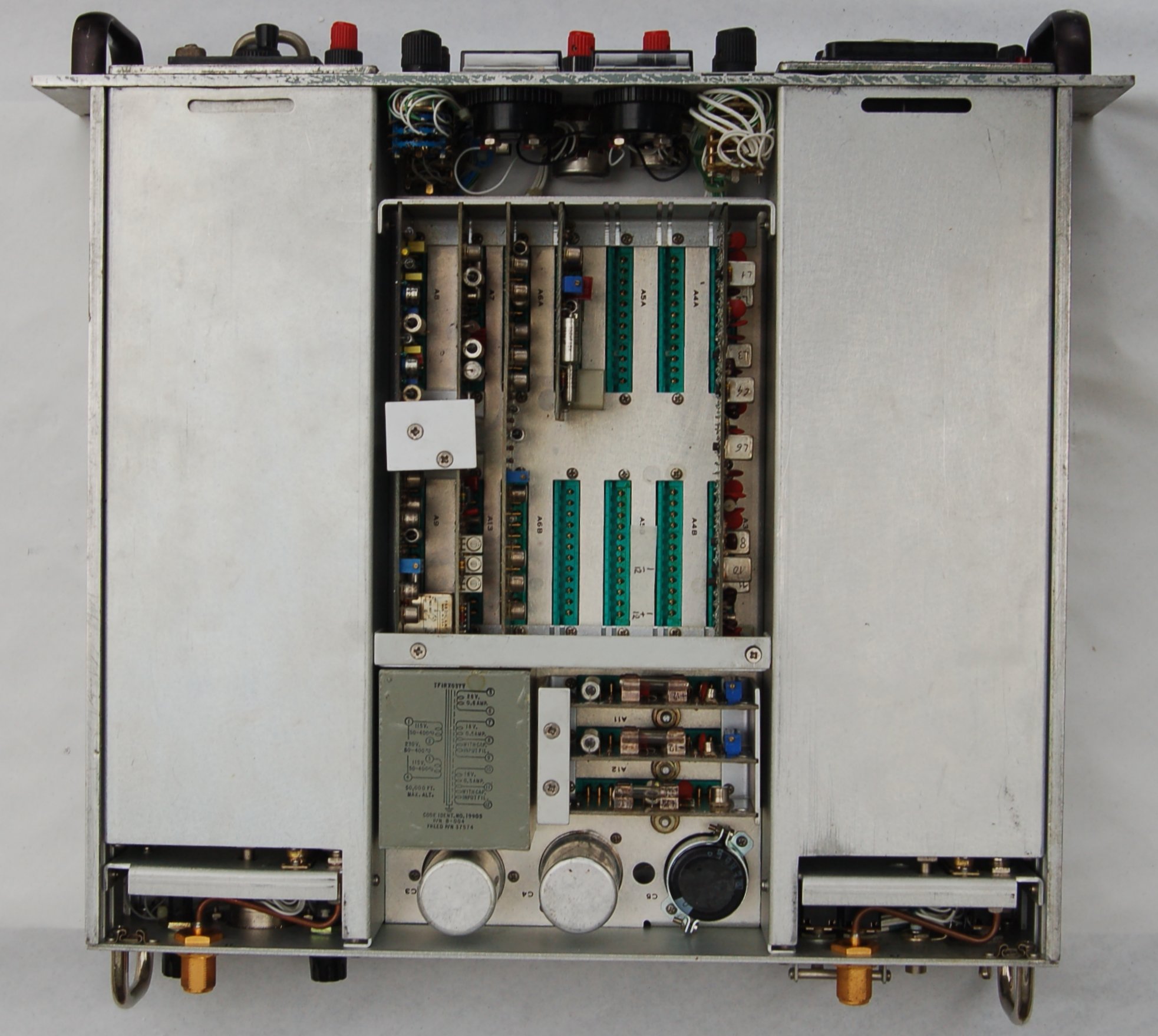

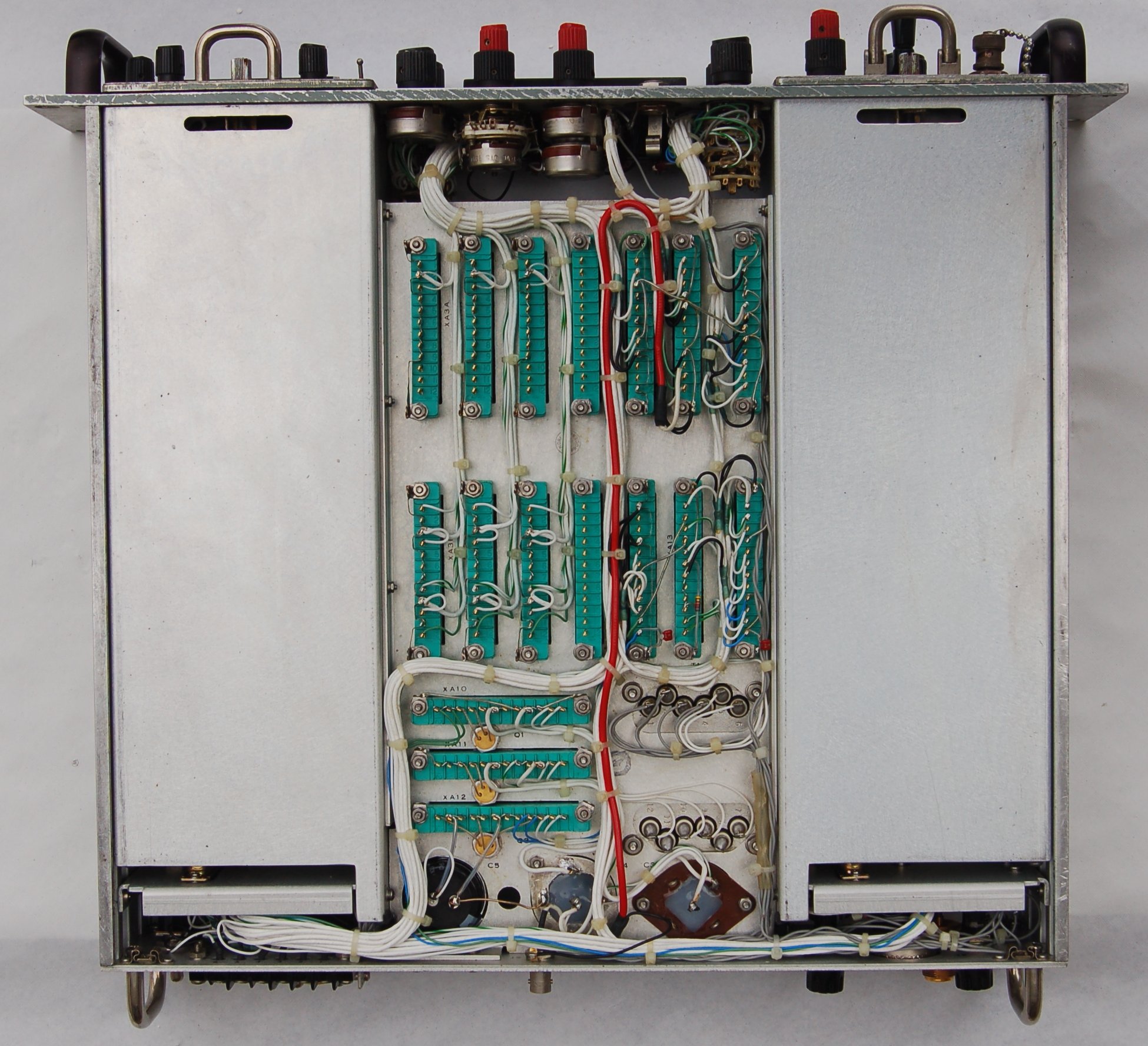

Upper view Under view
Front Face

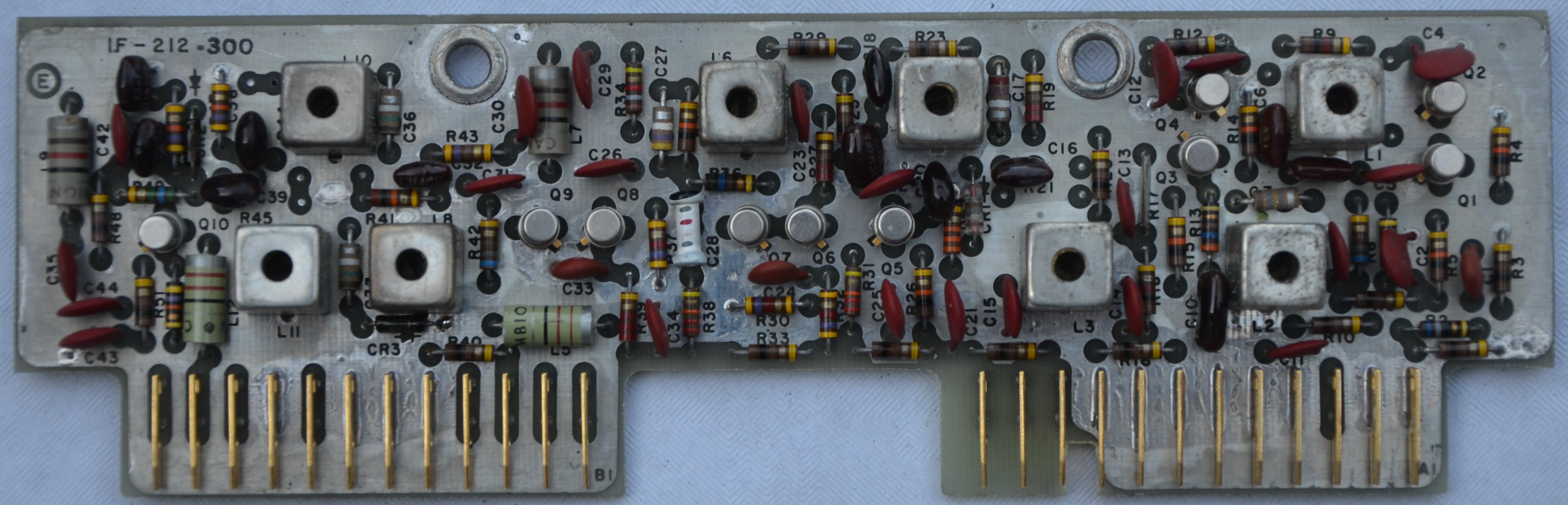

300kHz IF strip

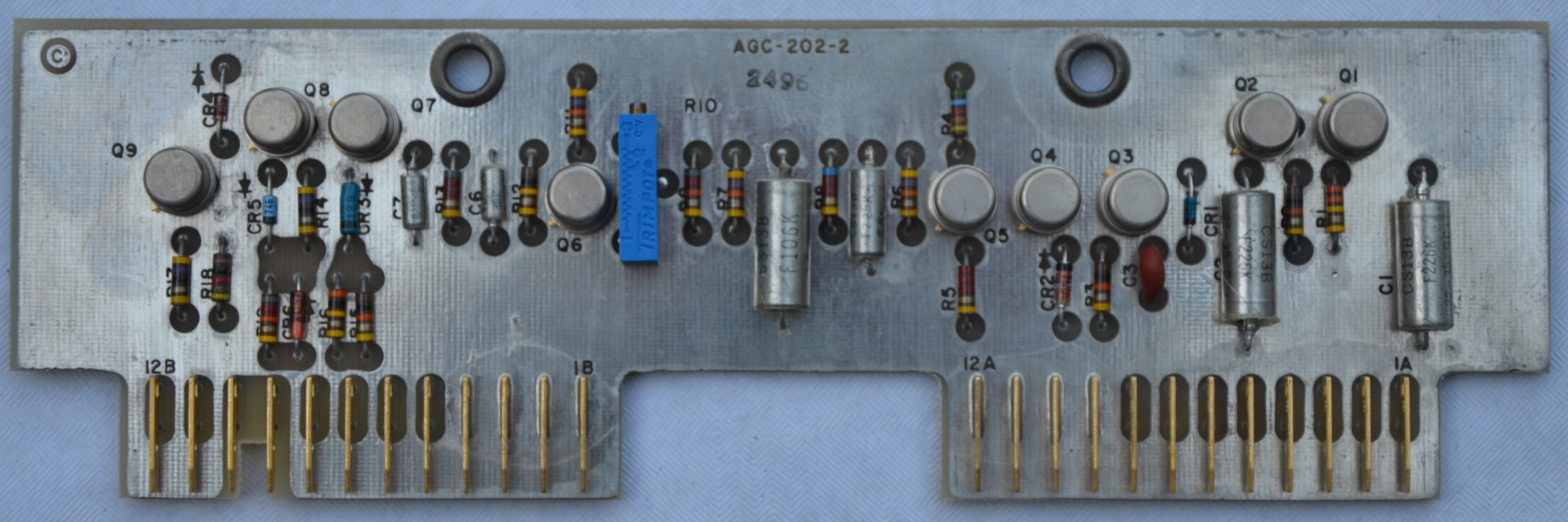

AGC strip
D/AFC strip

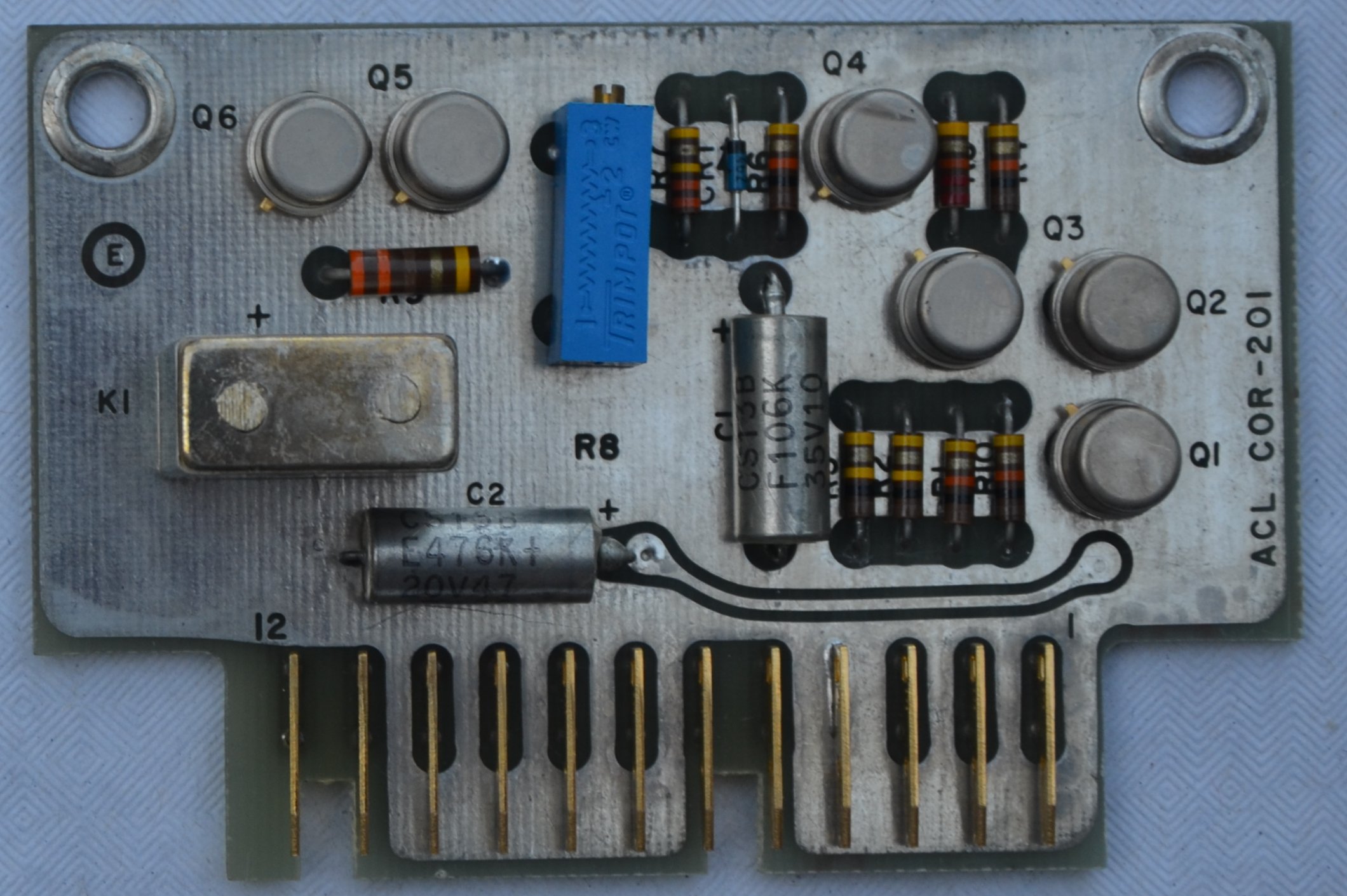

COR strip
AGC strip

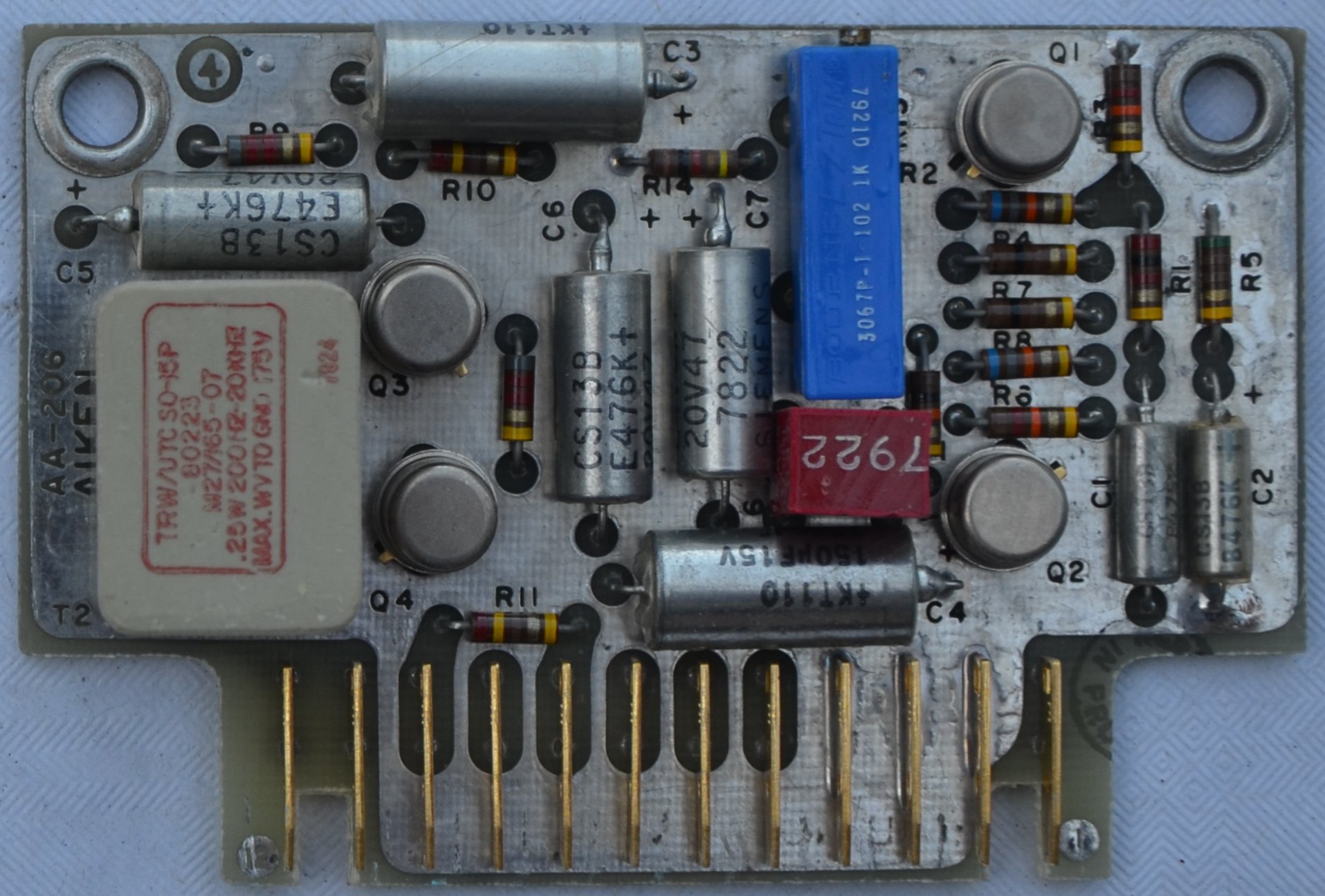

Audio strip
