ACL SR-209C Receiver

Technical data

The SR-209C seems to be the latest version of the SR-209.
This model has been manufactured in UK probably for the European defence market while my other unit was made in the USA by Norlin.
It includes two slots for tuner units with the left one been able to accept a display unit. It allows adding up to three IF strips.
The related tuner head series is displayed here.

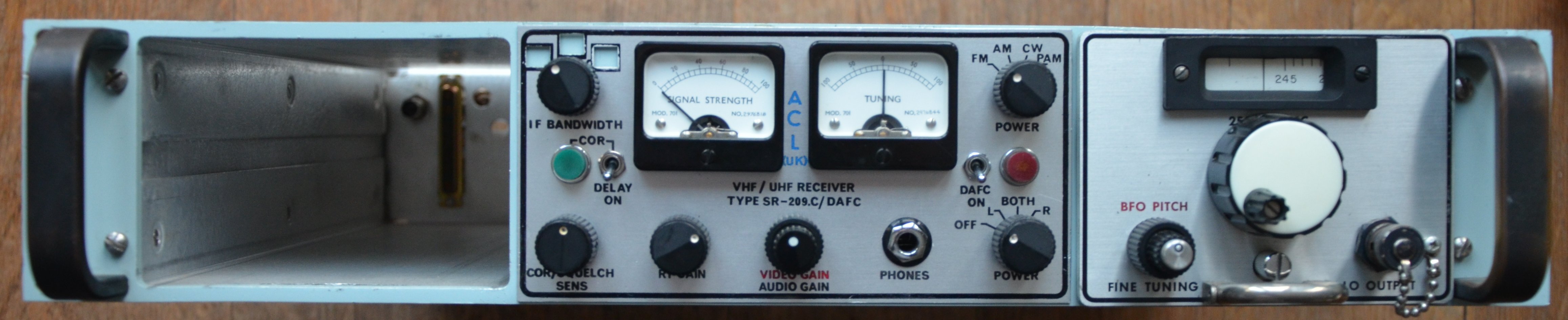

Front Face

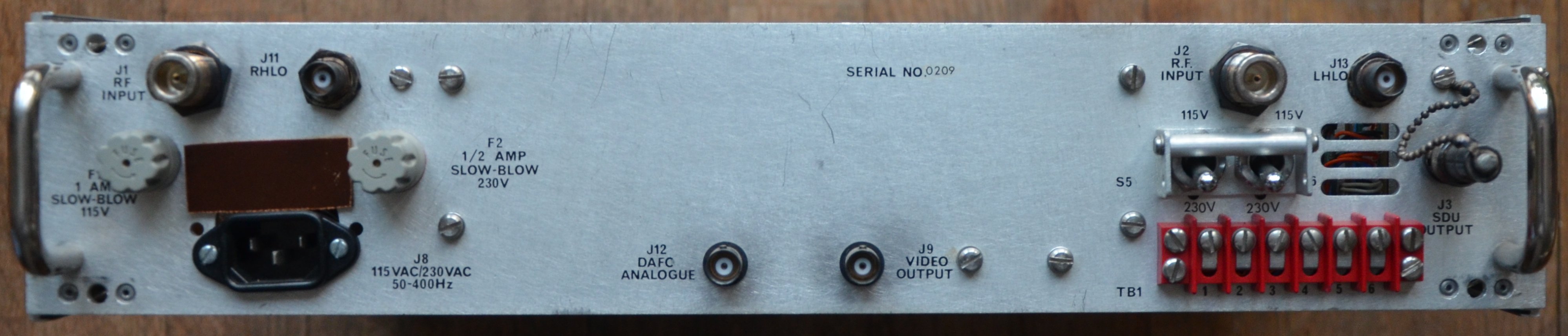

Rear view

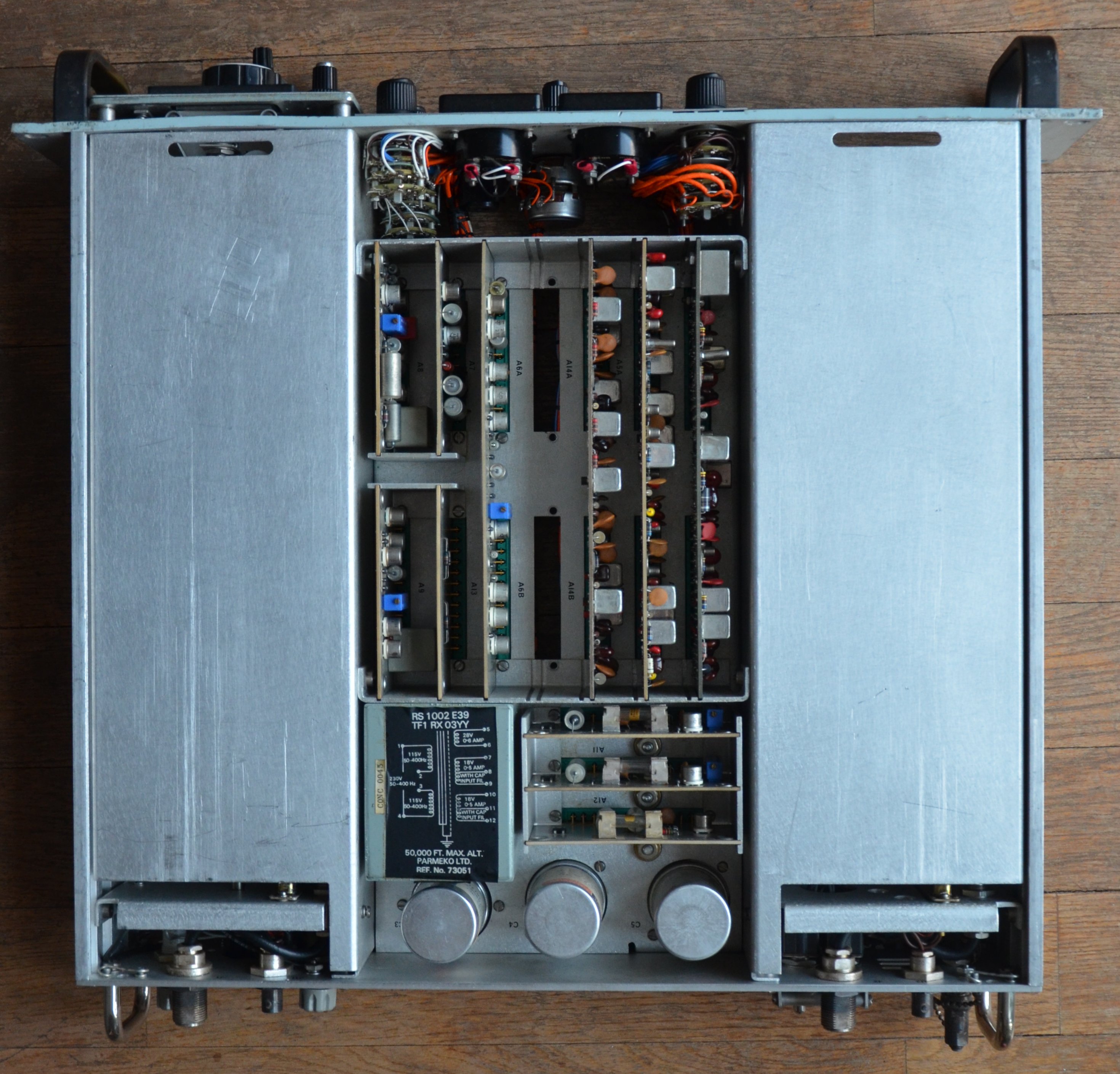

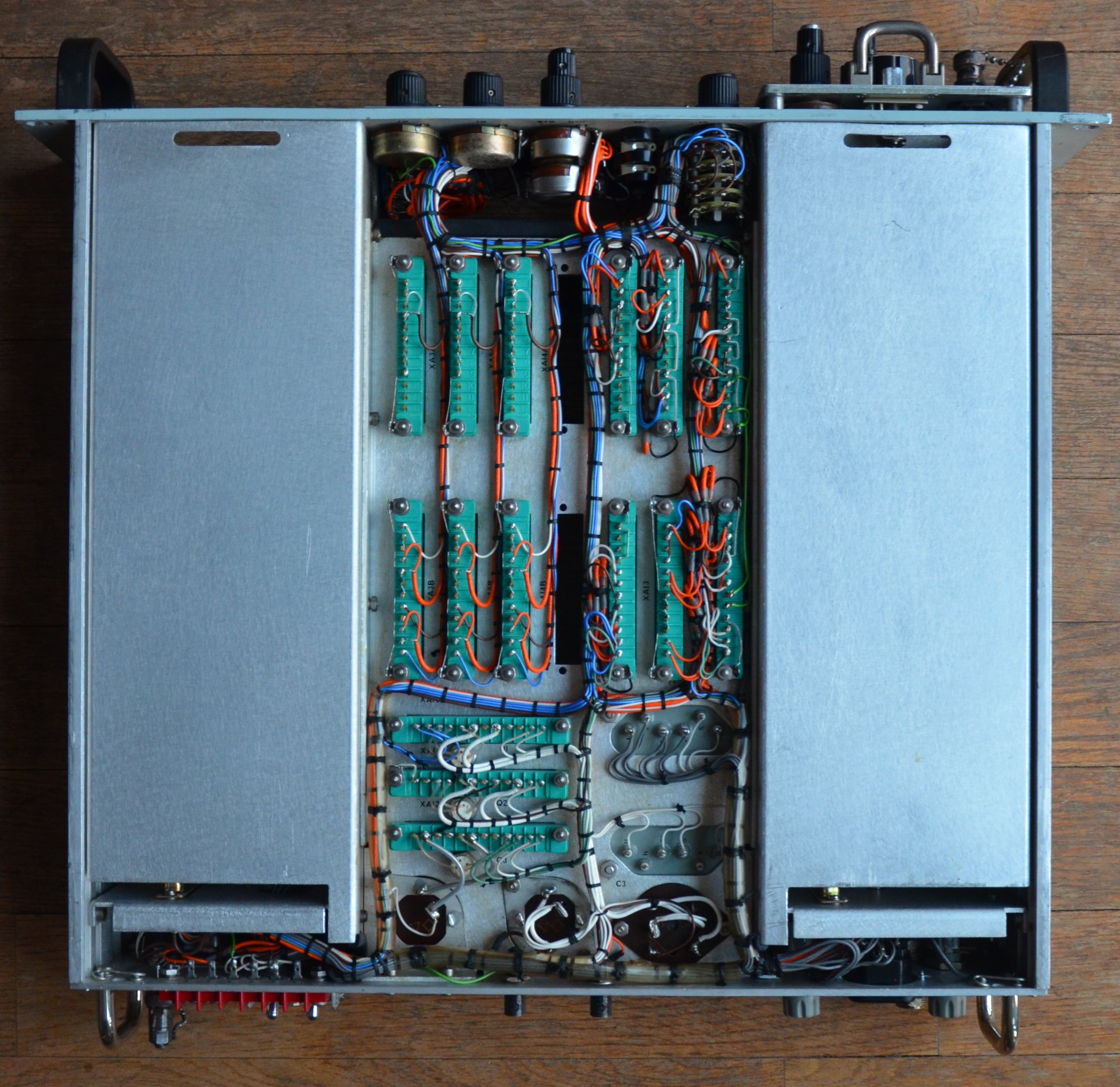

Upper view Under view

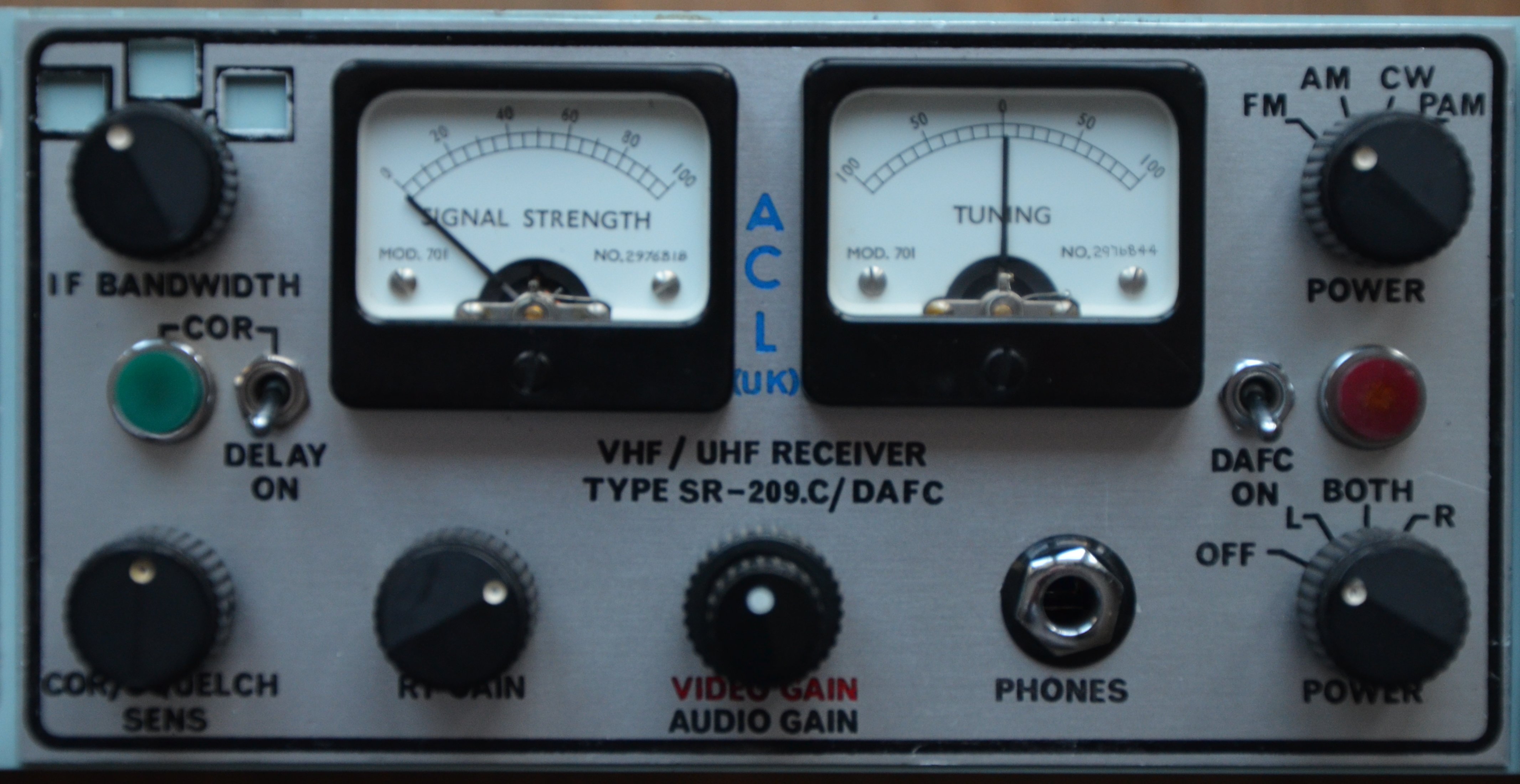

Front Face

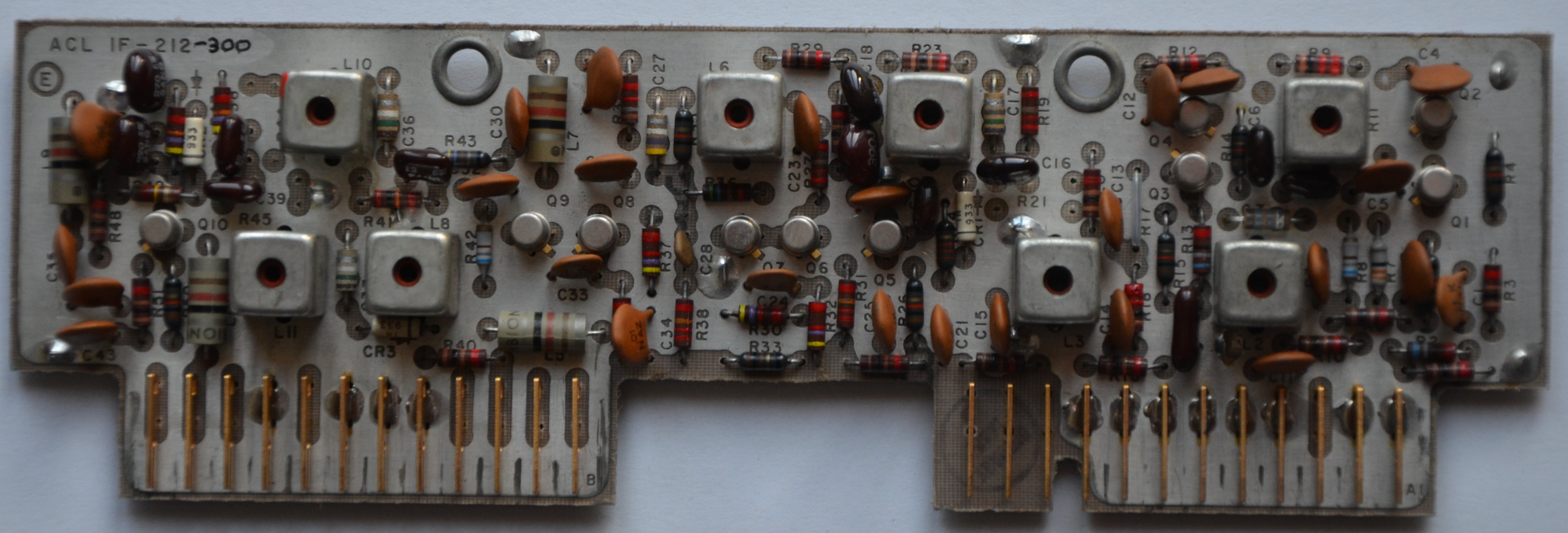

300kHz IF strip

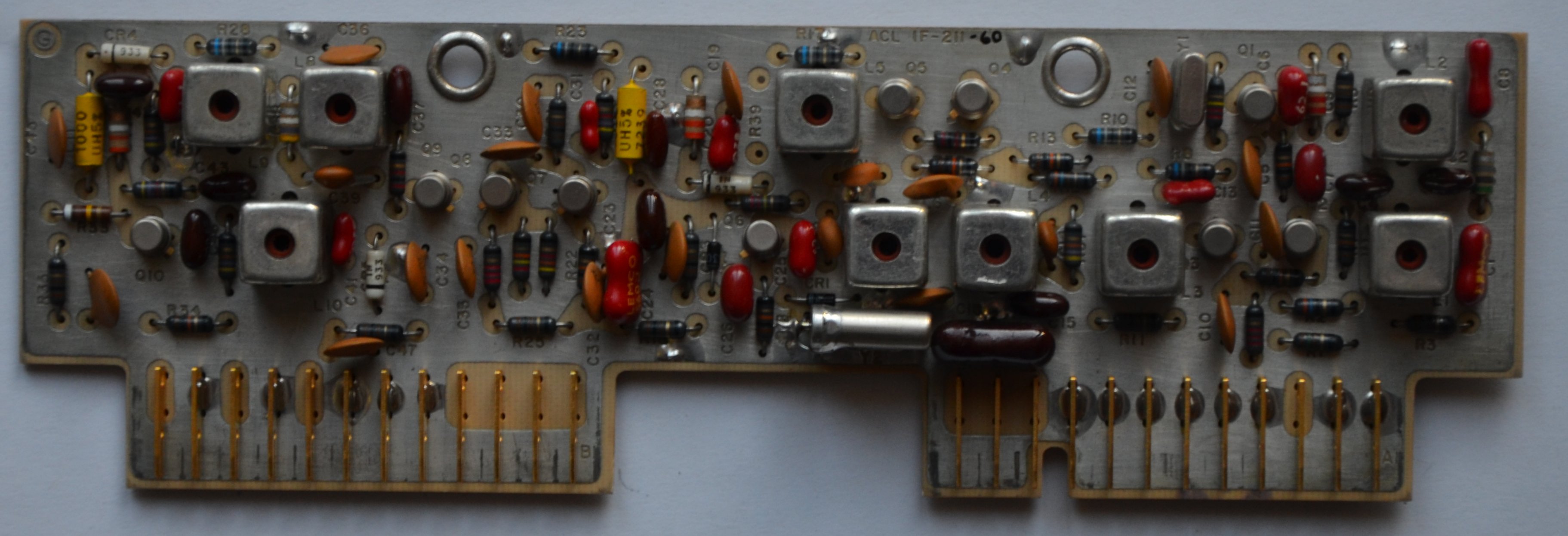

060kHz IF strip

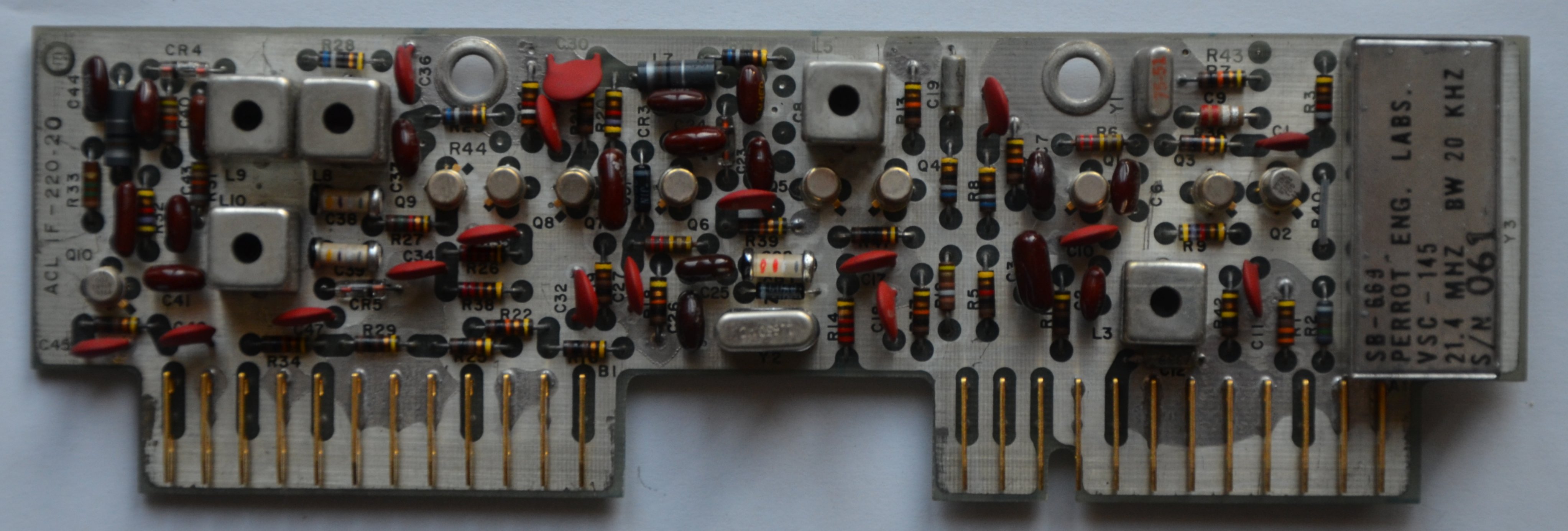

020kHz IF strip

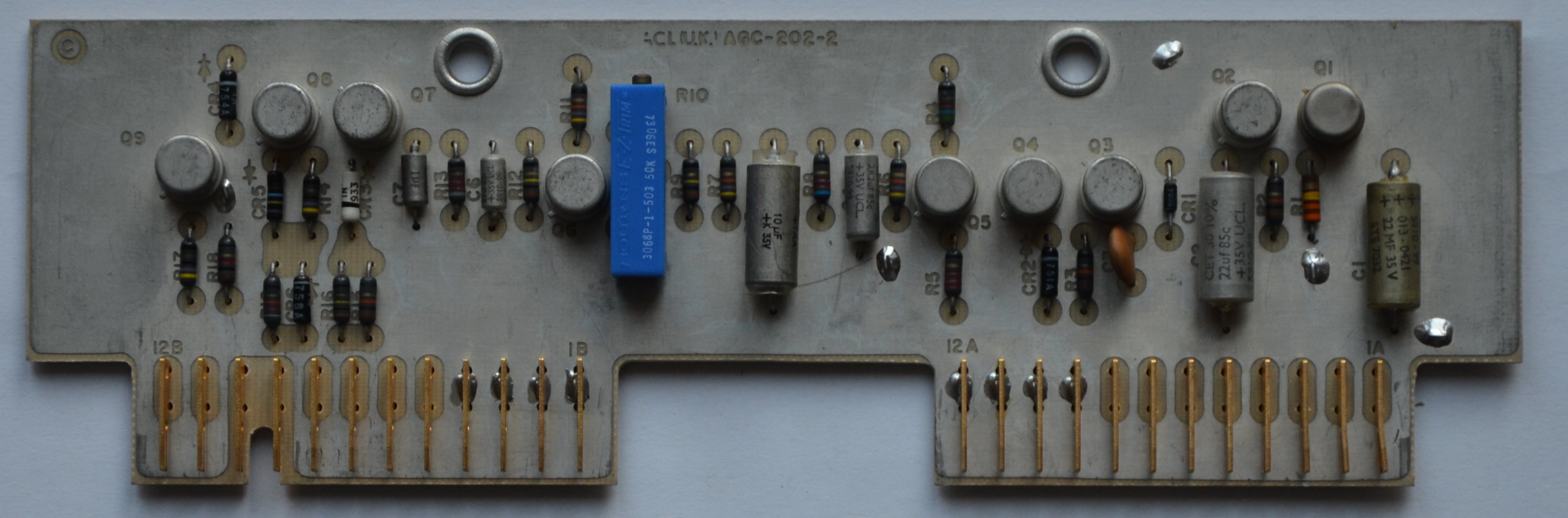

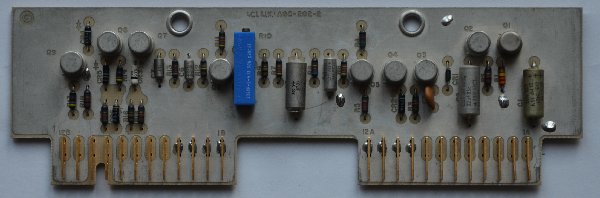

AGC strip

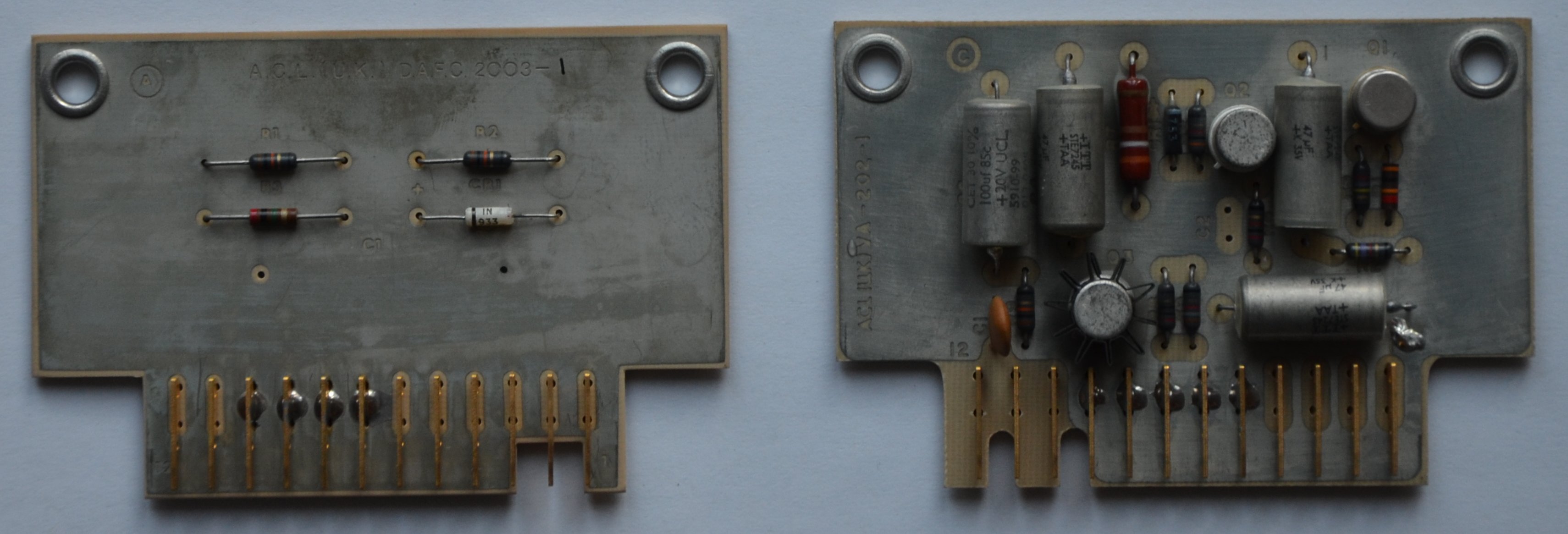

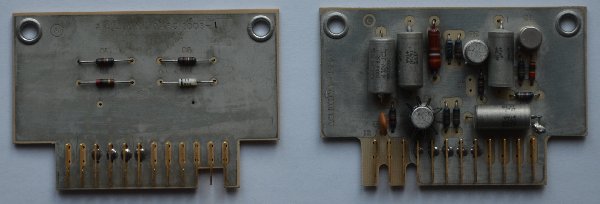

DAFC/VDU strips

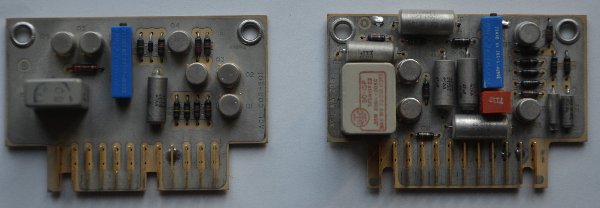

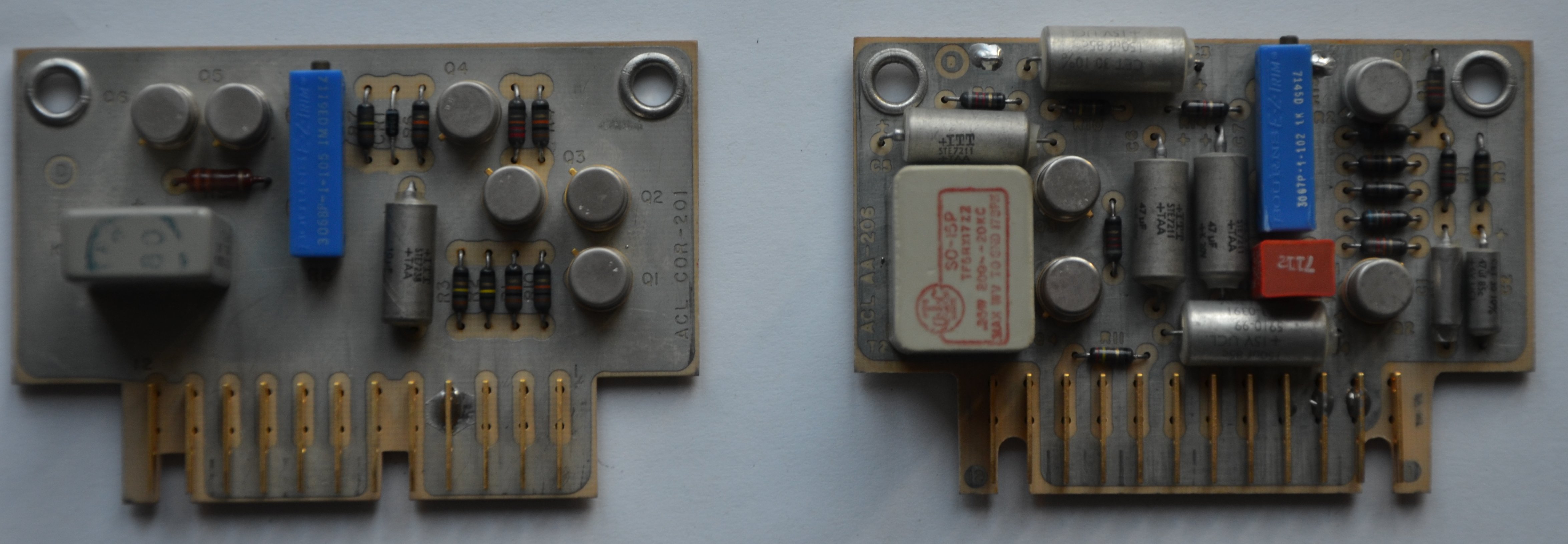

COR/AUD strips

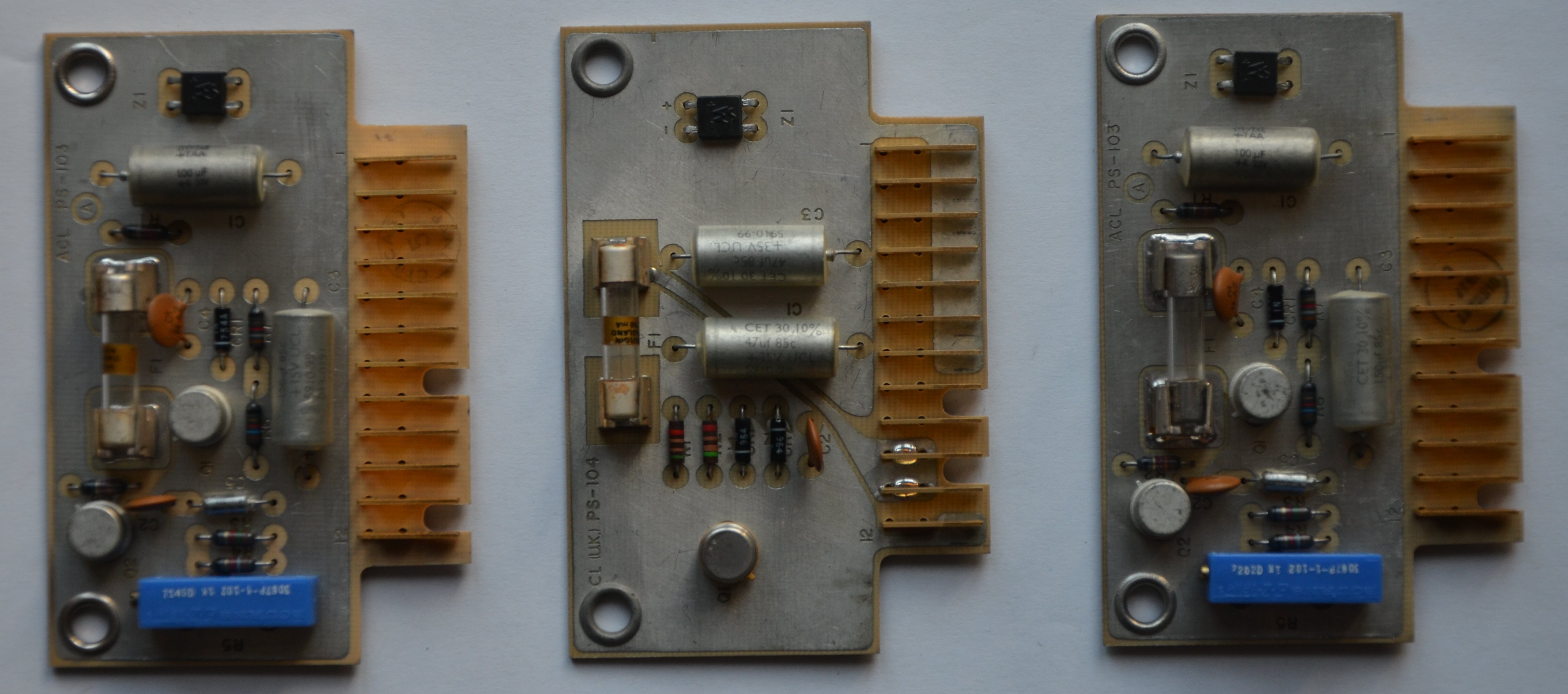

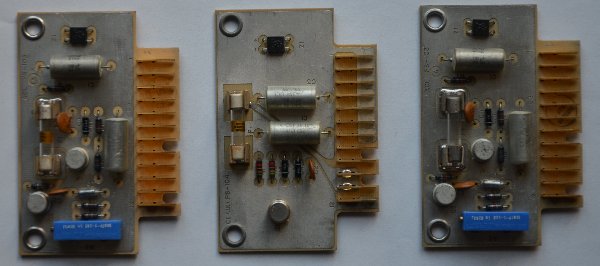

Power supply strips
