THOMSON CSF TRC-3941

Technical data

The TRC-3941 is the panoramic receiver designed by CSF to be jointly used with the TRC394 HF receiver family and mainly with the TRC-394C model.
It is a panoramic receiver that gets its input from the antenna but uses the receiver local oscillators. Its bandwith is the one of its own roofing filter and not of the receiver one.
It uses the same schematics, case and mechanical arrangement than the TRC-3941B with an HF head included.

Pictures

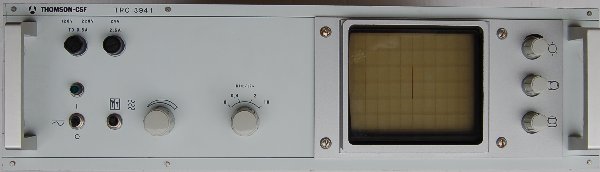

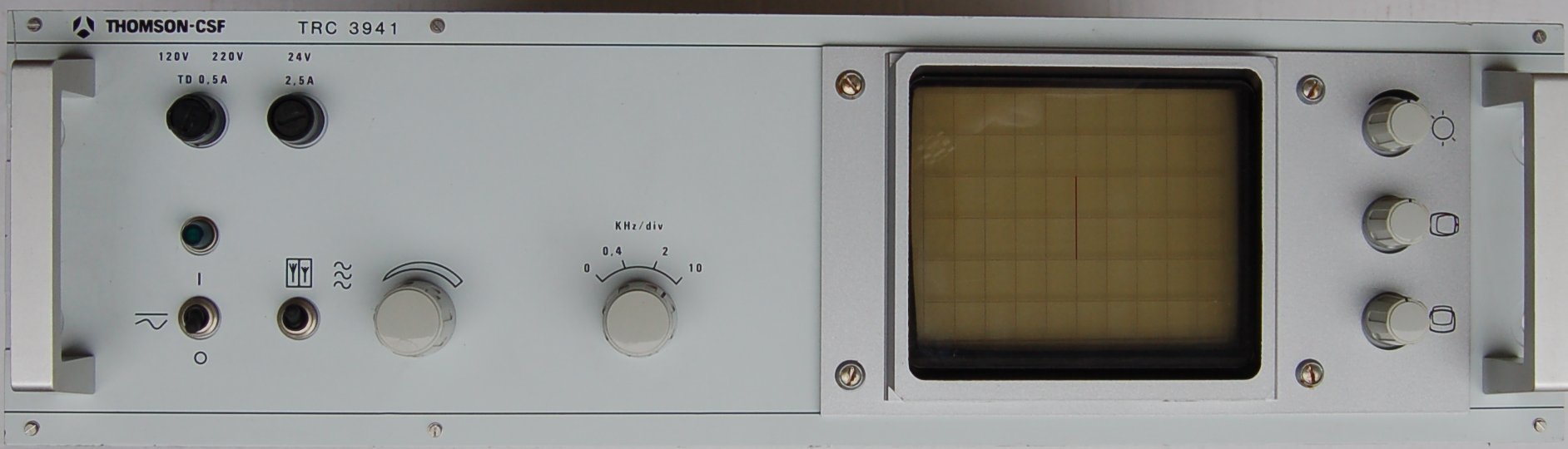

Front view

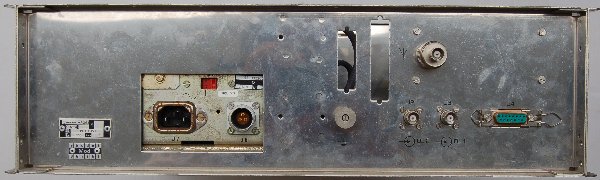

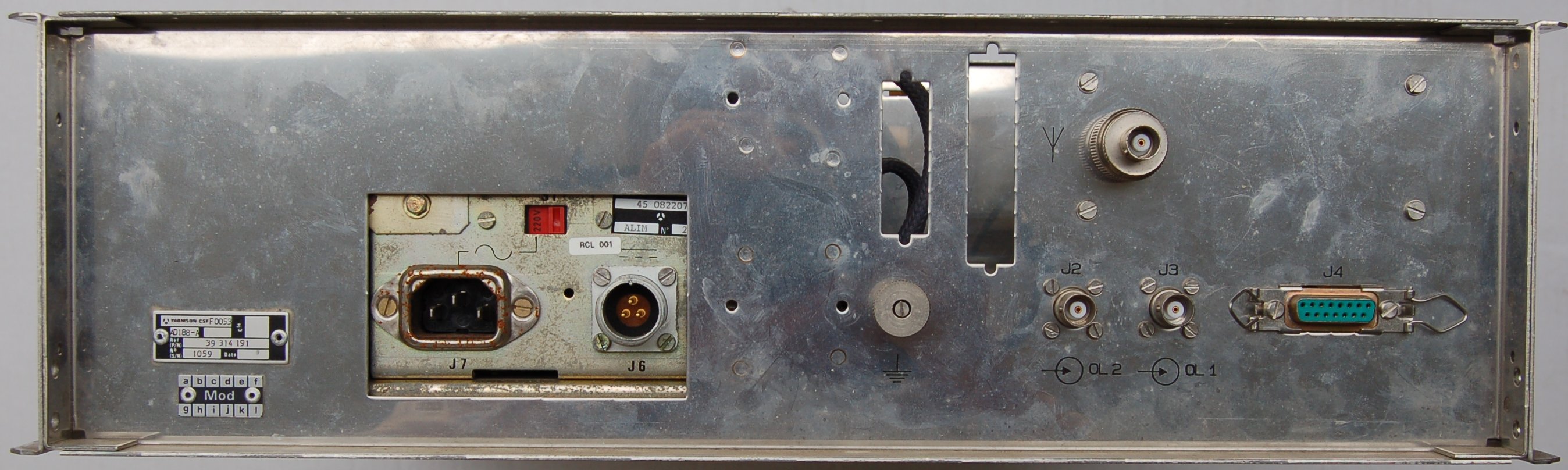

Rear view

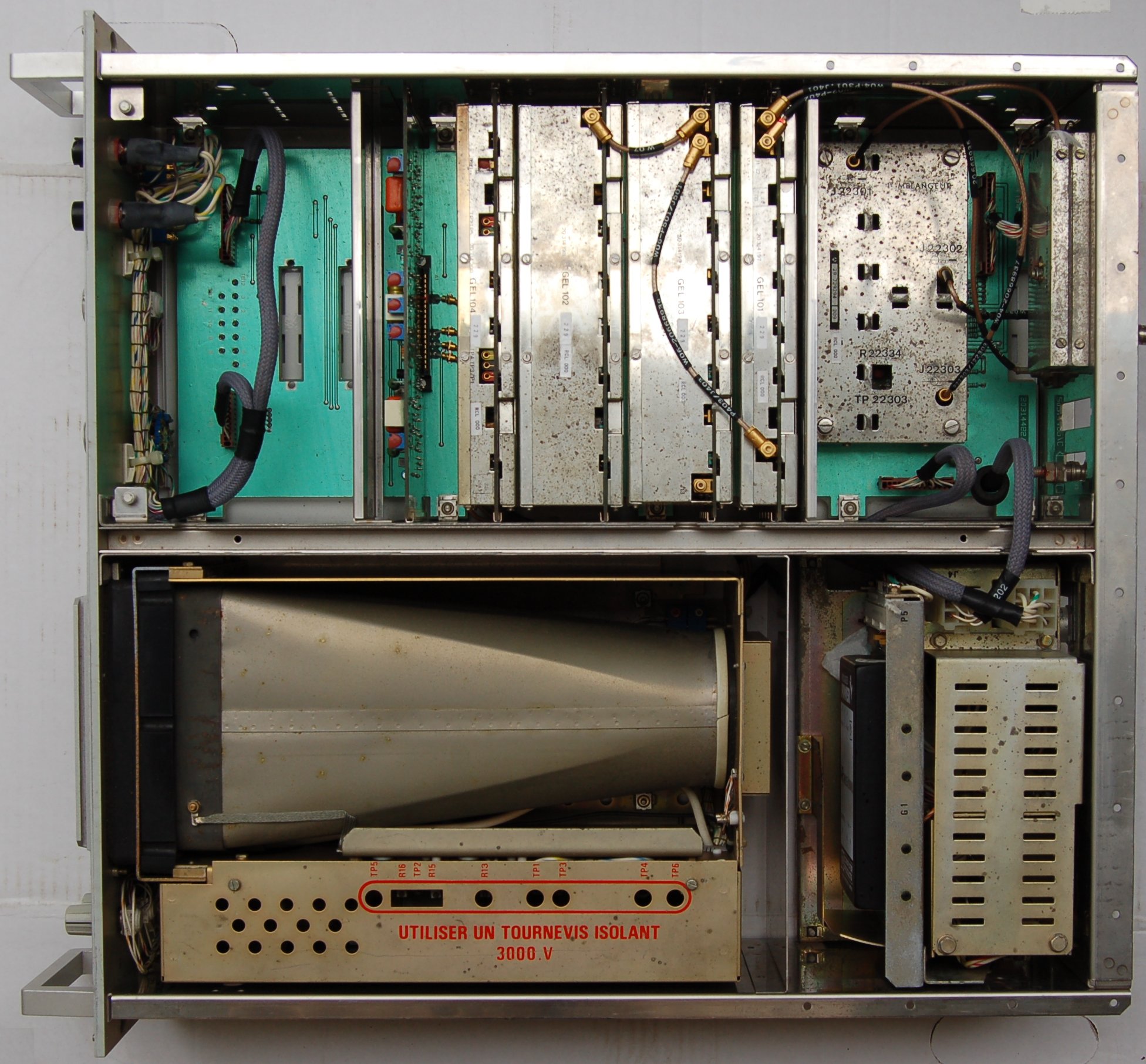

Upper view

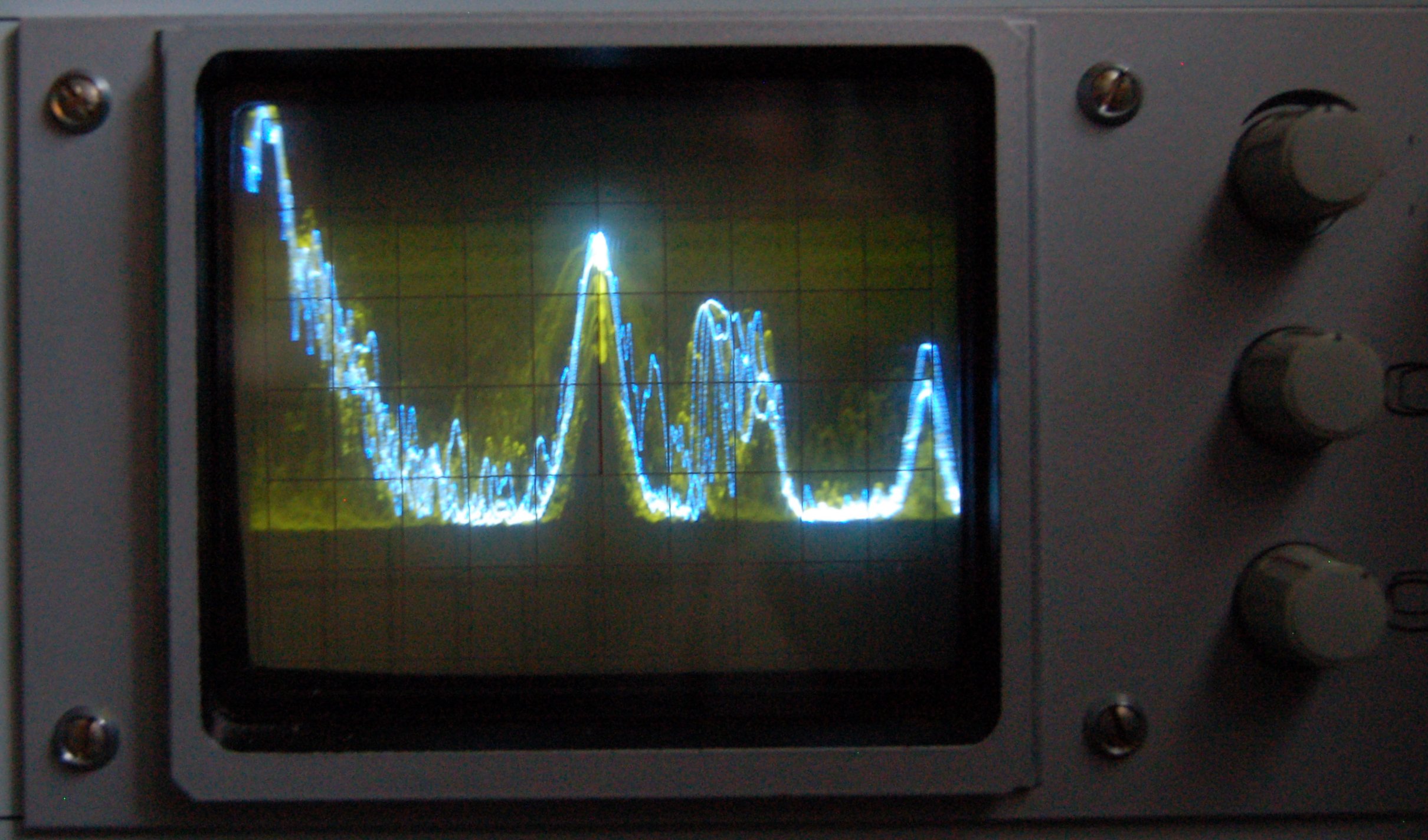

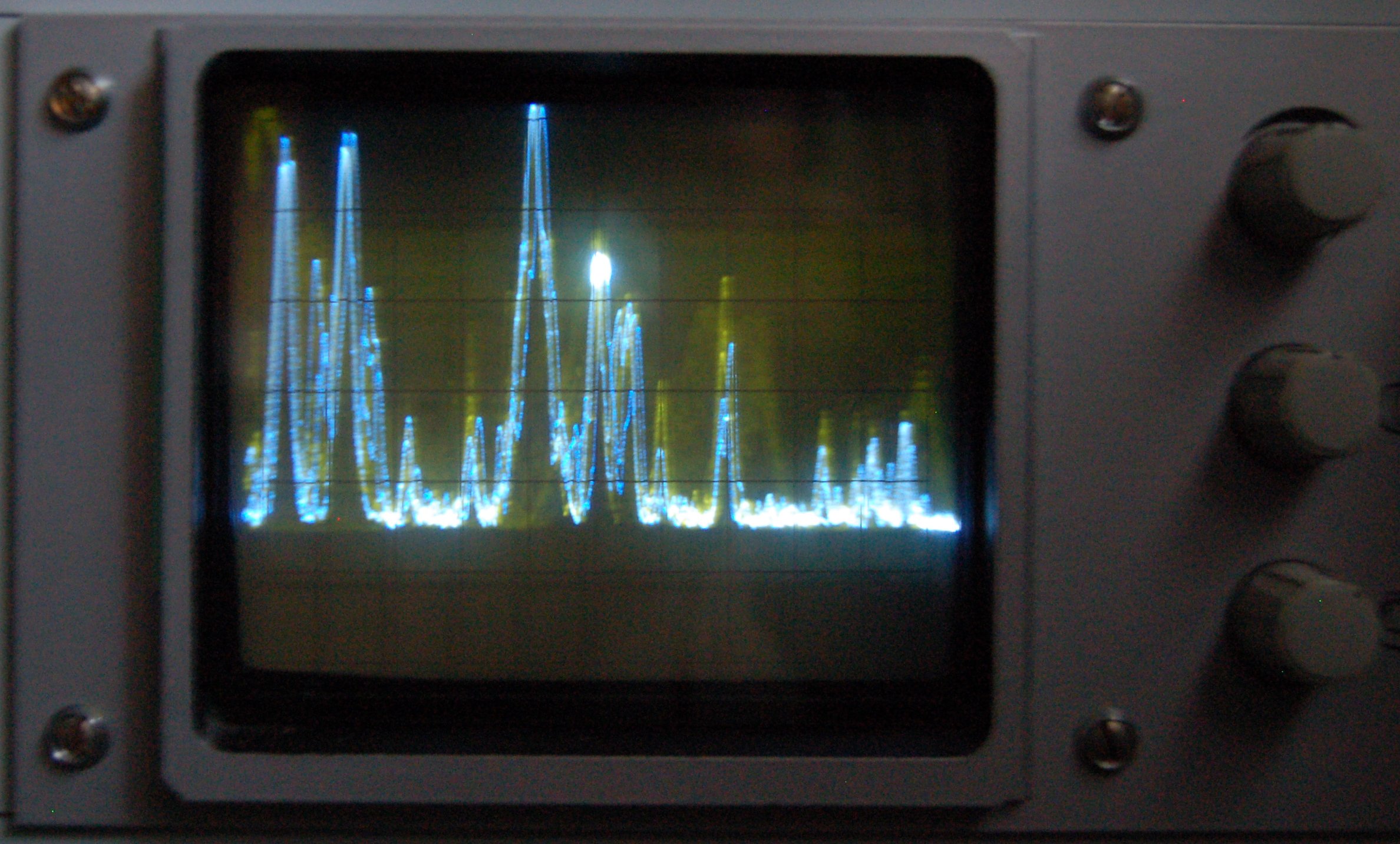

Display 10kHz/div Display 2kHz/div

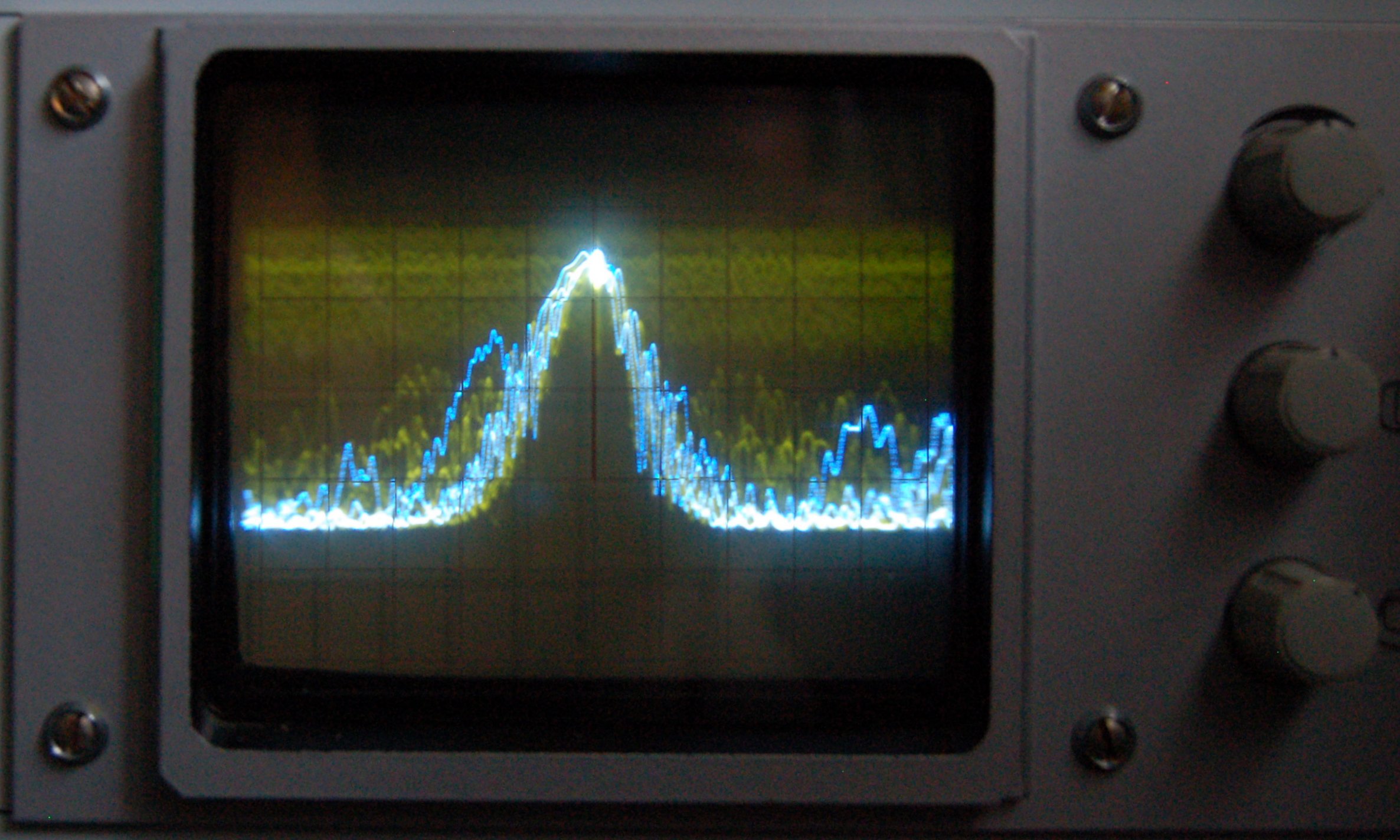

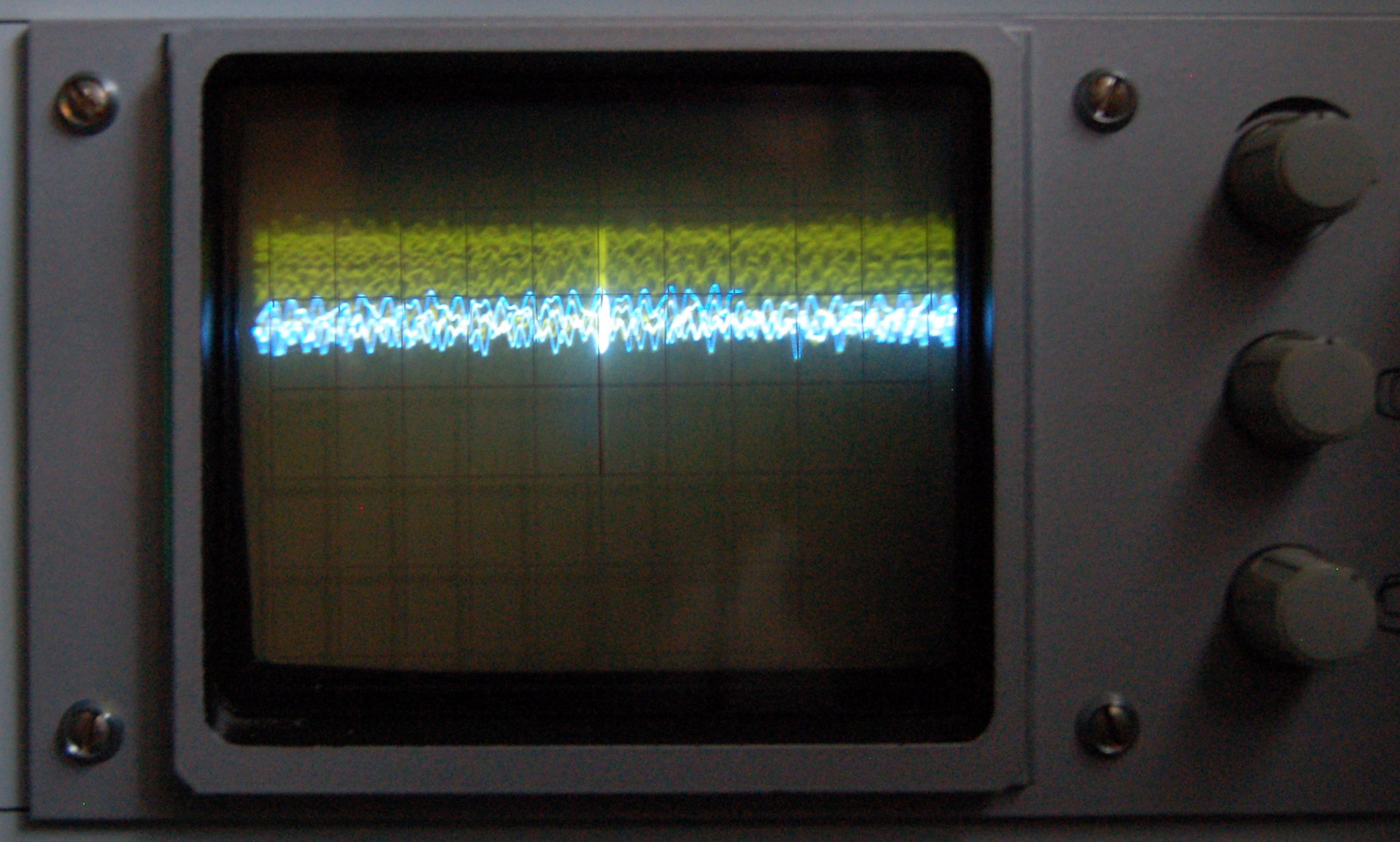

Display 400Hz/div Display signal


Last revision: 2009/07/14
