Generic Receiver Active/X Control Software

Software

  • Generic Receiver Active/X Control V1.3.5.1 [NRD535,RA6790,RA1792,TRC243,TRC241,TRC294,T264,EK085,HF2050] UPDATED 2016/02/28
      Take care that this version is no more compatible with the previous 1.1 ones !
  • Visual Basic 6 test sample sources
  • ChangeLog  Changes made in the last version
    •

    This Active/X control requires you manually register it by using the 'regsvr32 ReceiverCtl.dll'. You may also have to download some common generic Microsoft components such as MsComm32.ocx and MsWinSck.ocx.

    Donations are welcome ...

    Details

    This Active/X control implements a generic set of control functions and event notifications that can be used to handle any receiver serial remote control protocol.
    It allows to:
    - Connect through any local serial port (COM1 to COM12) or through TCP/IP to RS232 connection,
    - Drive up to 8 receivers selected in the following supported receivers list:
       NRD535, RA6790, RA1792, HF2050 (using the GPIB/RS232 converter) and EK085, TRC241, TRC243, TRC294, EK085 (on request),
    - Drive the main receivers control commands such as frequency, mode, filters and so on,
    - Send notification on any setting changes from any configured receiver,
    - Can forward any change made on master receiver to all other slave receivers,
    - Get the HF level in dBuV, 'S' Point or native value (excepted for the RA1792/RA6790/EK085 that doesn't support this).

    This application has been written in Visual C++ language.

    Programming Interface

    Here is the V1.3.4.1 Help files

    Pictures

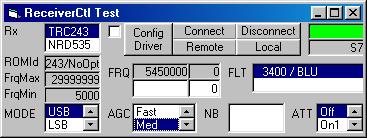

    Testing application Screen shot

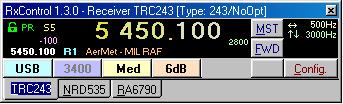

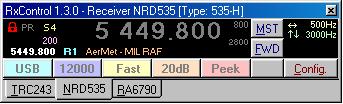

    Some views of RxControl, a VB application using this control

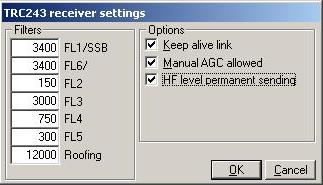

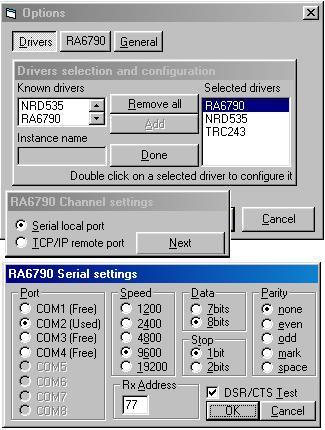

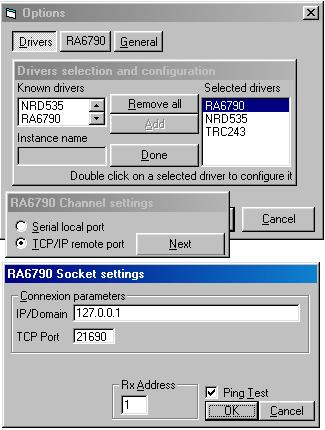

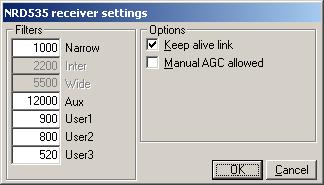

    The following foreground windows are automatically handled by the control

    Last revision: 2013/05/08
