TE-704C Teletron HF receiver Tone Converter


  • Schematic
  • Board
  • Software

    Any TTY terminal can be used including our WIN32 RTTY Terminal software or our PIC TTY Terminal


    The TE704-C TELETRON HF Receiver includes a tone output which is intend for Fax decoding but that can be used for RTTY decoding given a tone converter. Our simple design returns a Mark/Space RS-232 level that follows the 1800Hz tone signal. This requires the receiver being accurately tuned. Once done with the help of the red/green LED meter, it will do its job very nicely

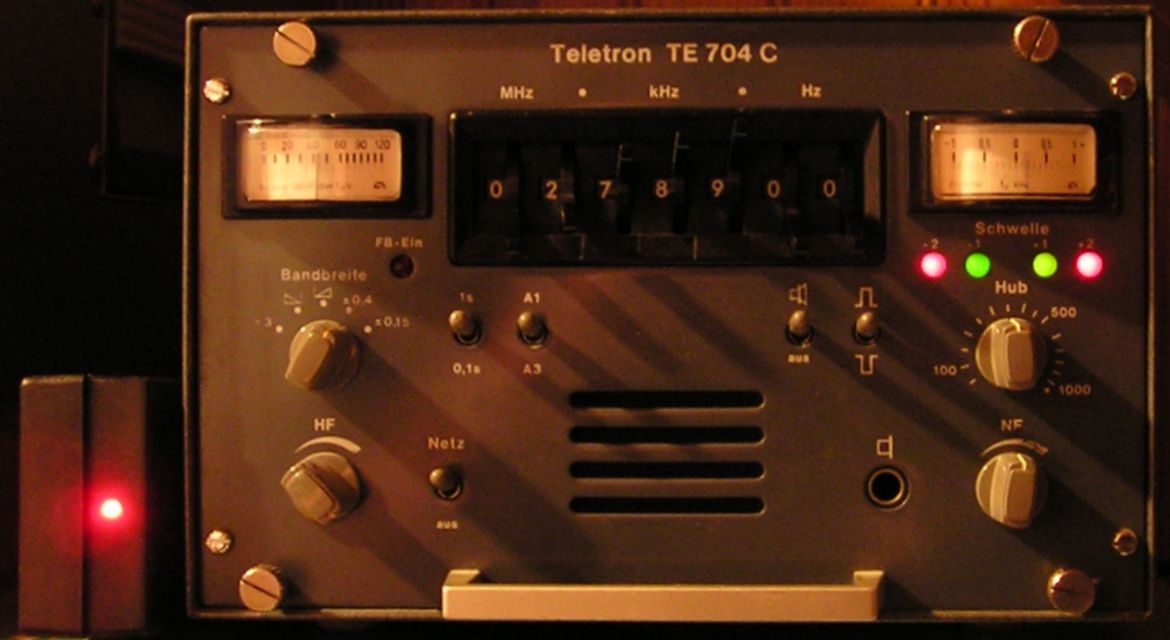

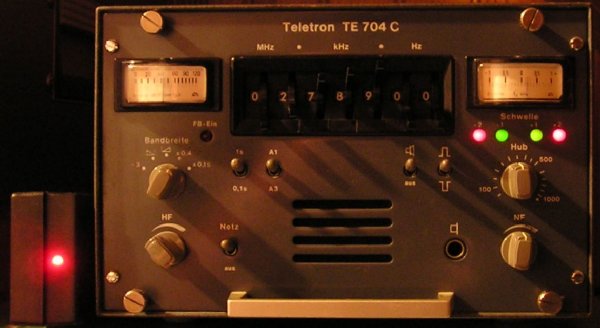

    The tone converter is on the right of the receiver
