EKA8562 based Audio Sound USB modification

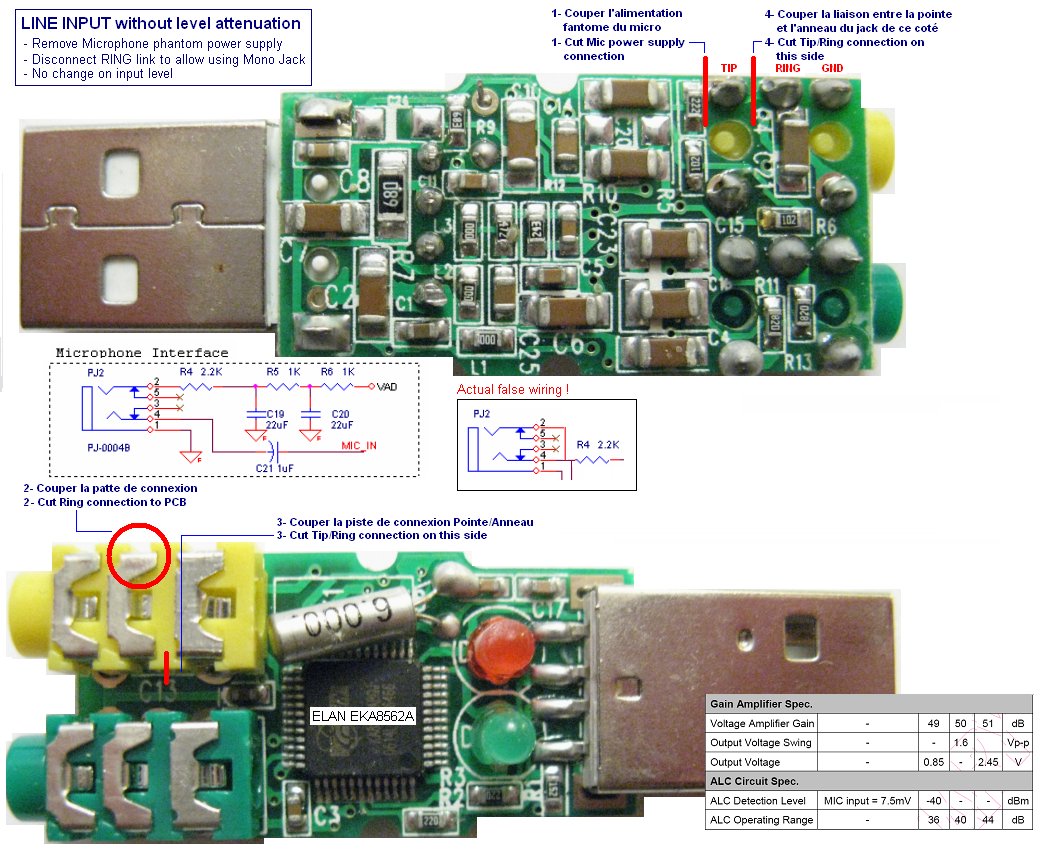

Changing Microphone to Line input

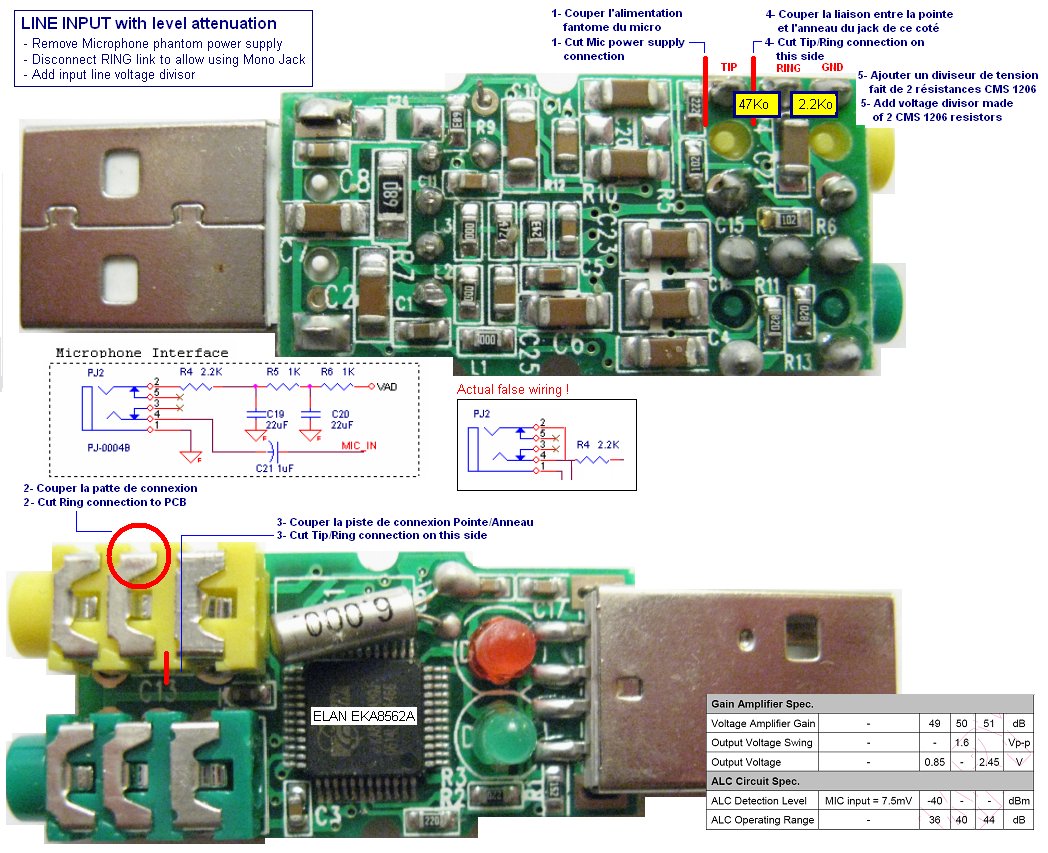

Changing Microphone to Line input with level attenuation

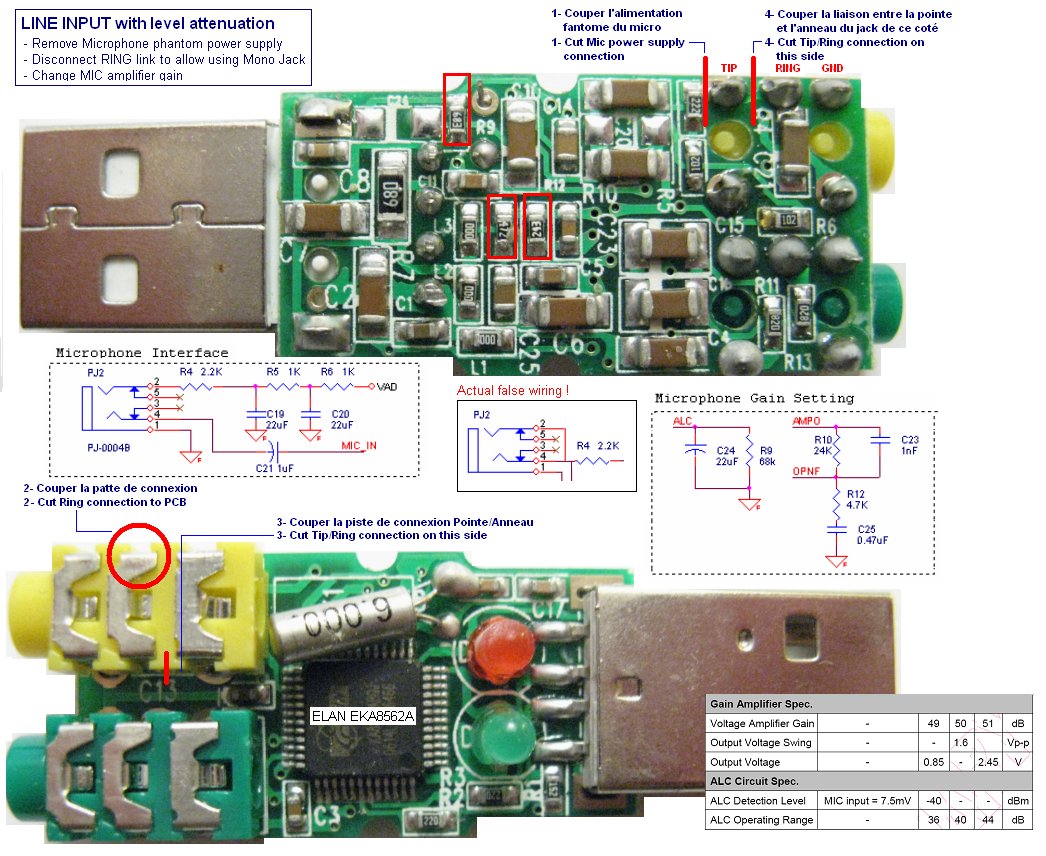

Changing Microphone to Line input with reduced gain


ELAN EKA 8562 datasheet can be found here.
