THOMSON CSF TRC-3941B

Technical data

The TRC-3941B is a panoramic equipement designed by CSF to be used with the TRC243 HF receiver family.
It is a real panoramic adapter that gets its input from the receiver FI then limited the receiver roofing filter bandwidth.
It uses the same schematics, case and mechanical arrangement than the TRC-3941 excepted it doesn't include the HF head.

Pictures

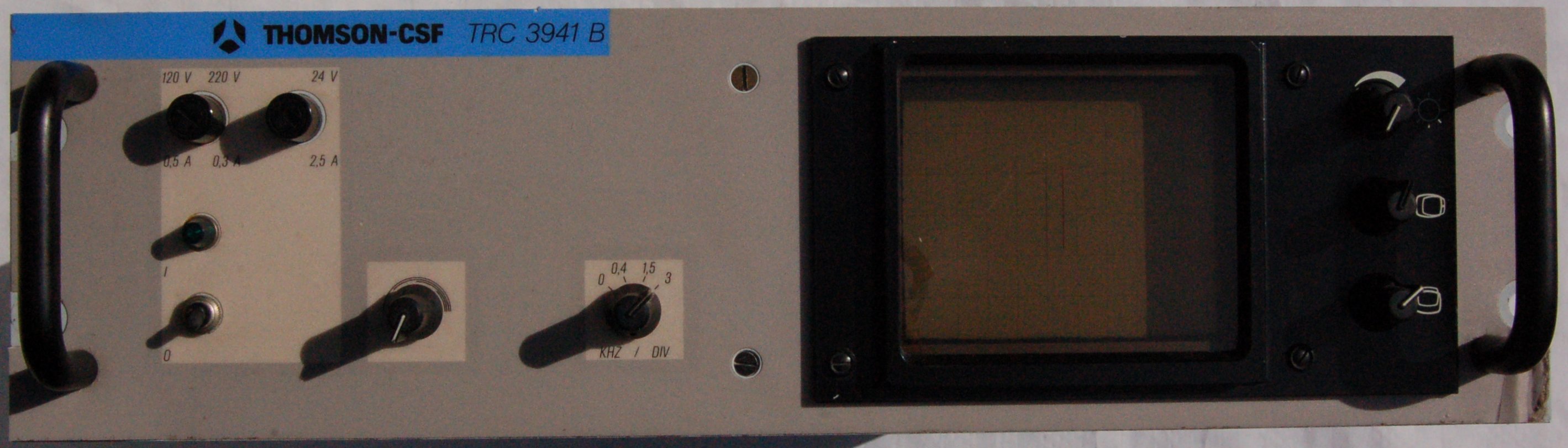

Front view

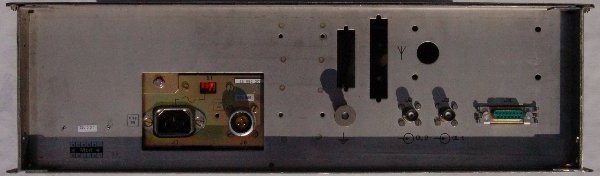

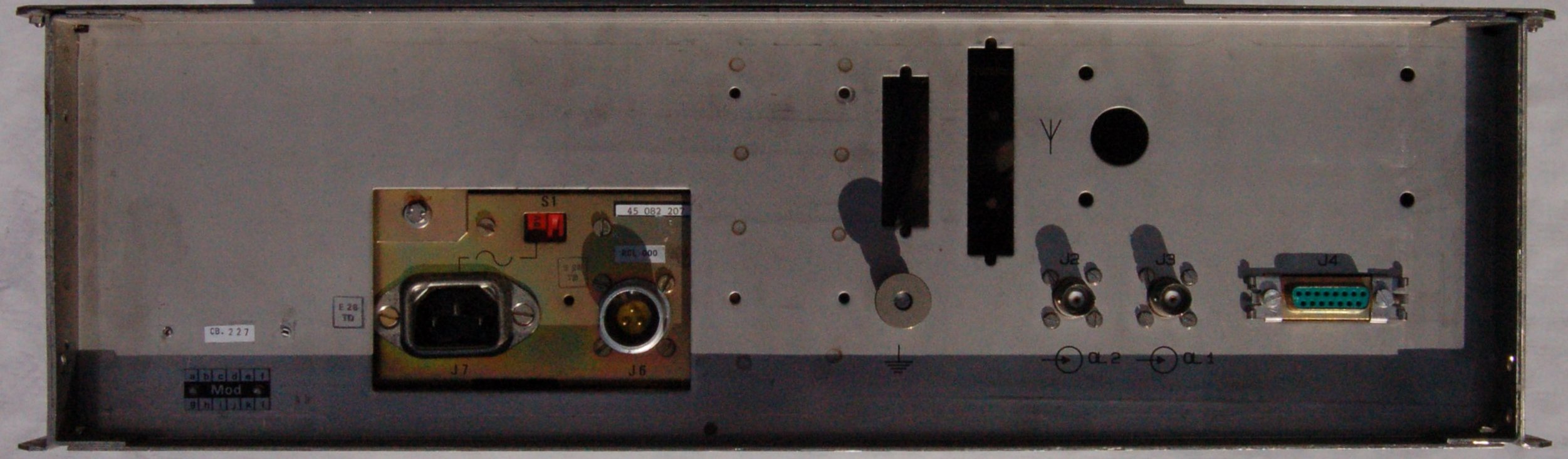

Rear view

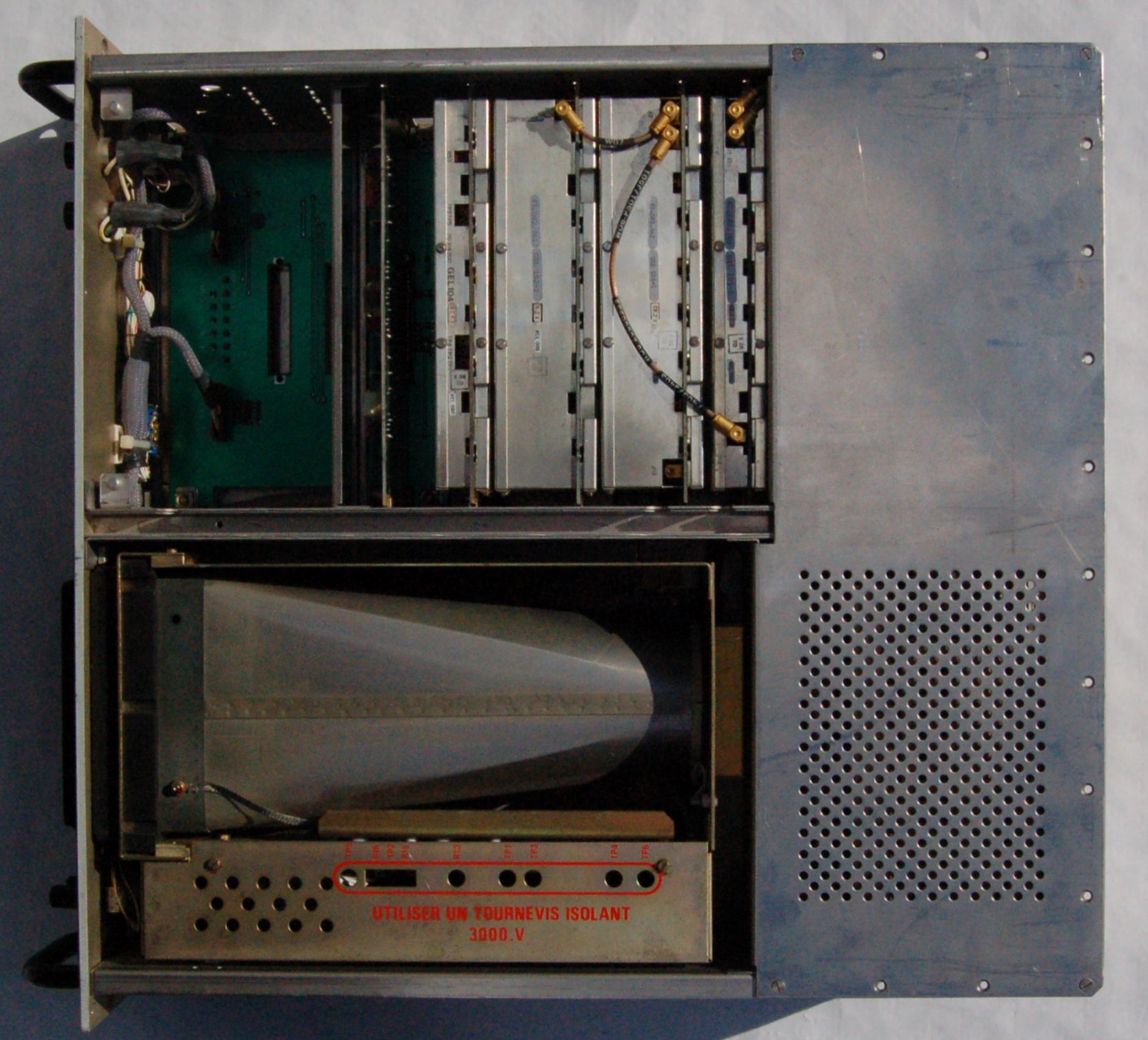

Upper view

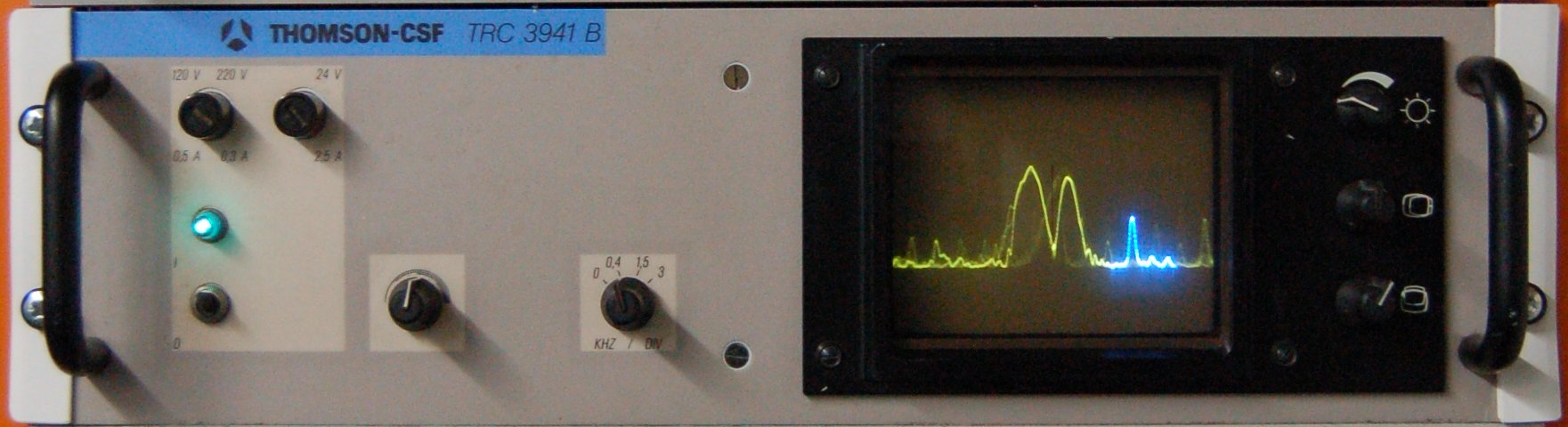

Display 400Hz/div


Last revision: 2011/06/22
