Technical data
The TRC-243 is the CSF reference for an HF solid-state receiver used by the french army. This model has been designed around 1986.

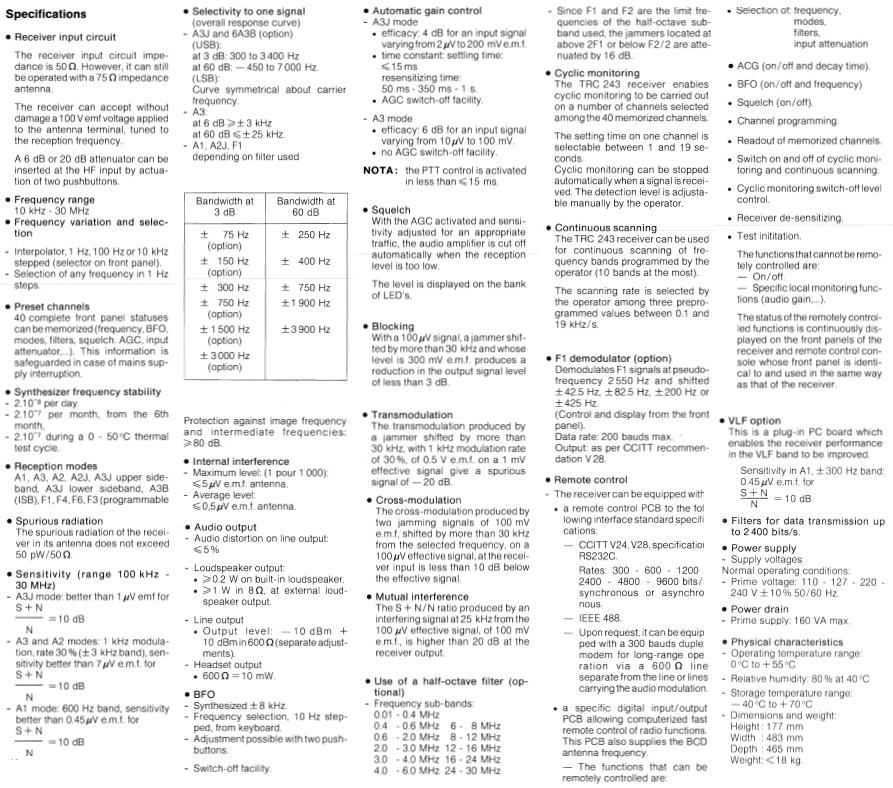

Here are its technical specifications (detailed specifications here):
- Receiving mode:
AM,USB,LSB,CW,FSK,FM (ISB optional)
- Sensivity: [for (S+B)/B = 10dB]
<0.6uV BLU,
<5.0uV AM.
- Frequency coverage:
Continuous 1Hz tunable from
100Khz to 30Mhz
- Double conversion design:
1st IF: 101.8MHz,
2nd IF: 1.4Mhz.
- Filters:
3.4Khz USB,LSB
6.0Khz AM
150, 300, 750, 3000Hz CW
- BFO:
Tunable from -7.99KHz to +7.99KHz.
_ Memory:
100 channels.
- Remote control:
RS232 and IEEE488.
- Optional cards:
ISB output,
F1 demodulation,
IF Rejector,
VLF Head.
- Other option:
RS232 to 20mA loop converter.
Pictures

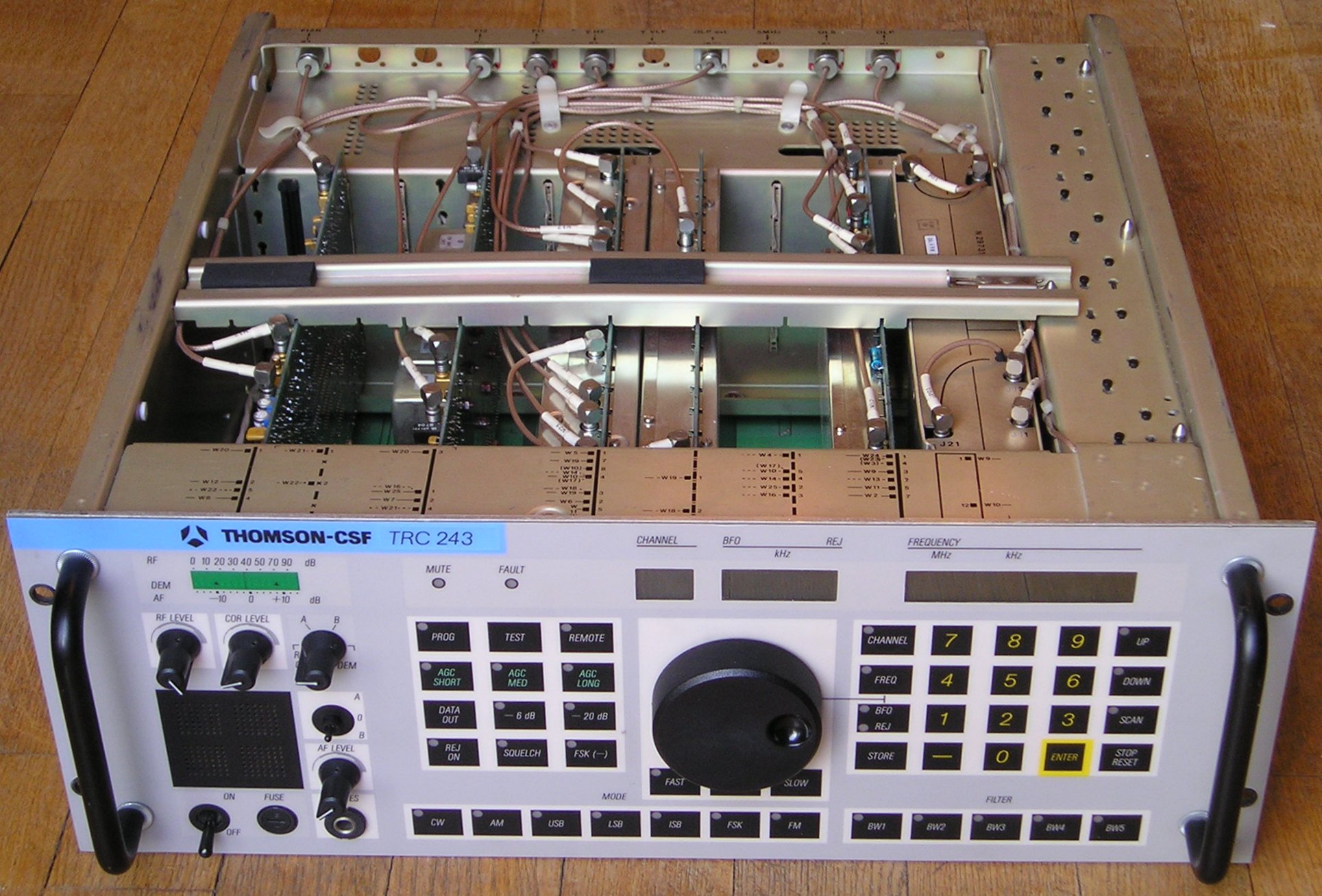

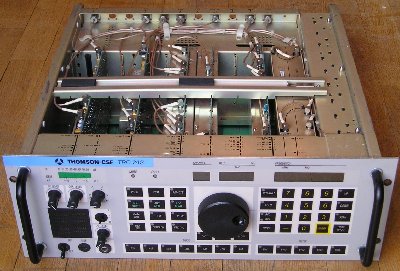

Front view |
|

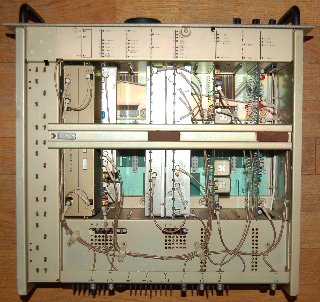

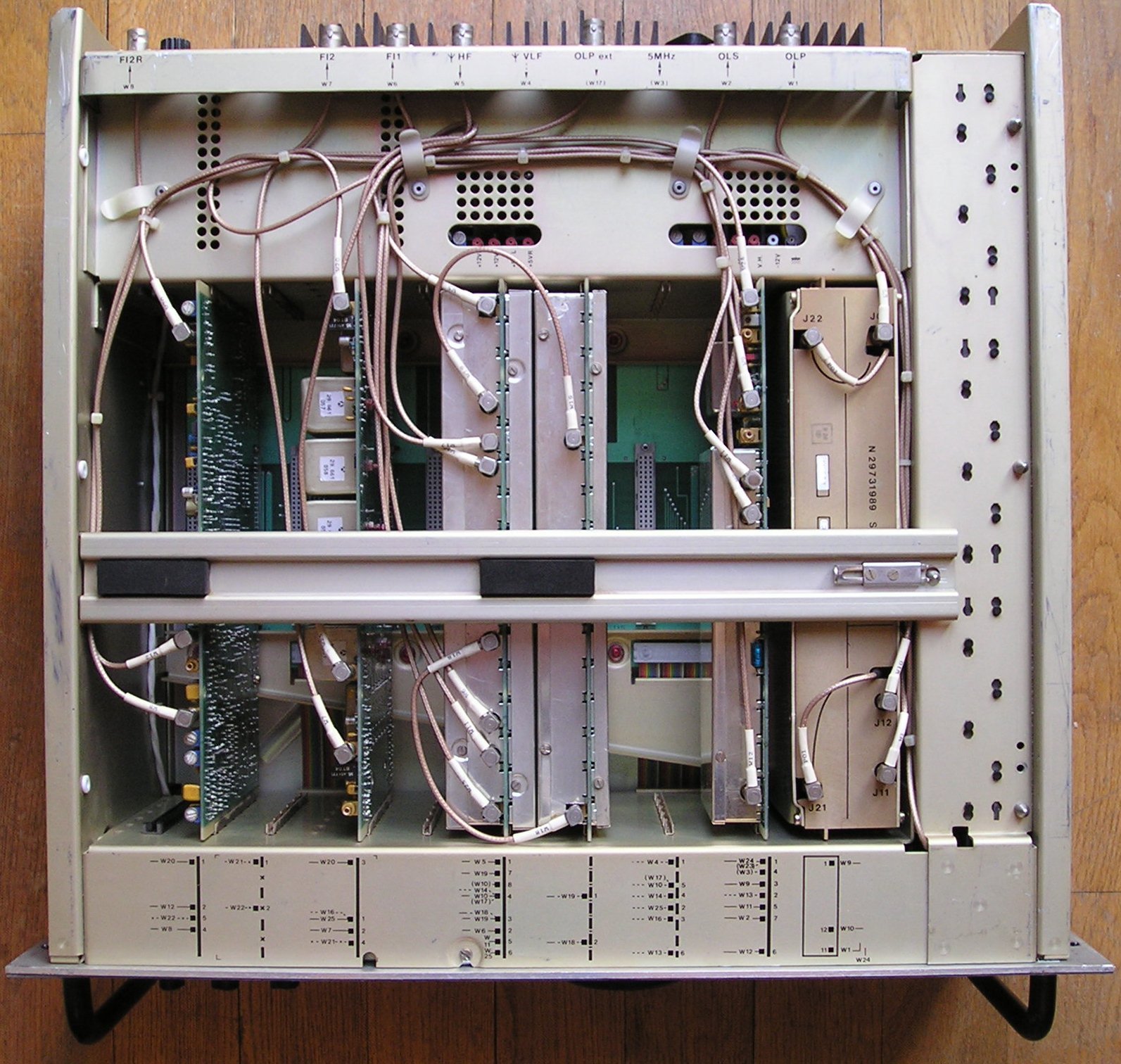

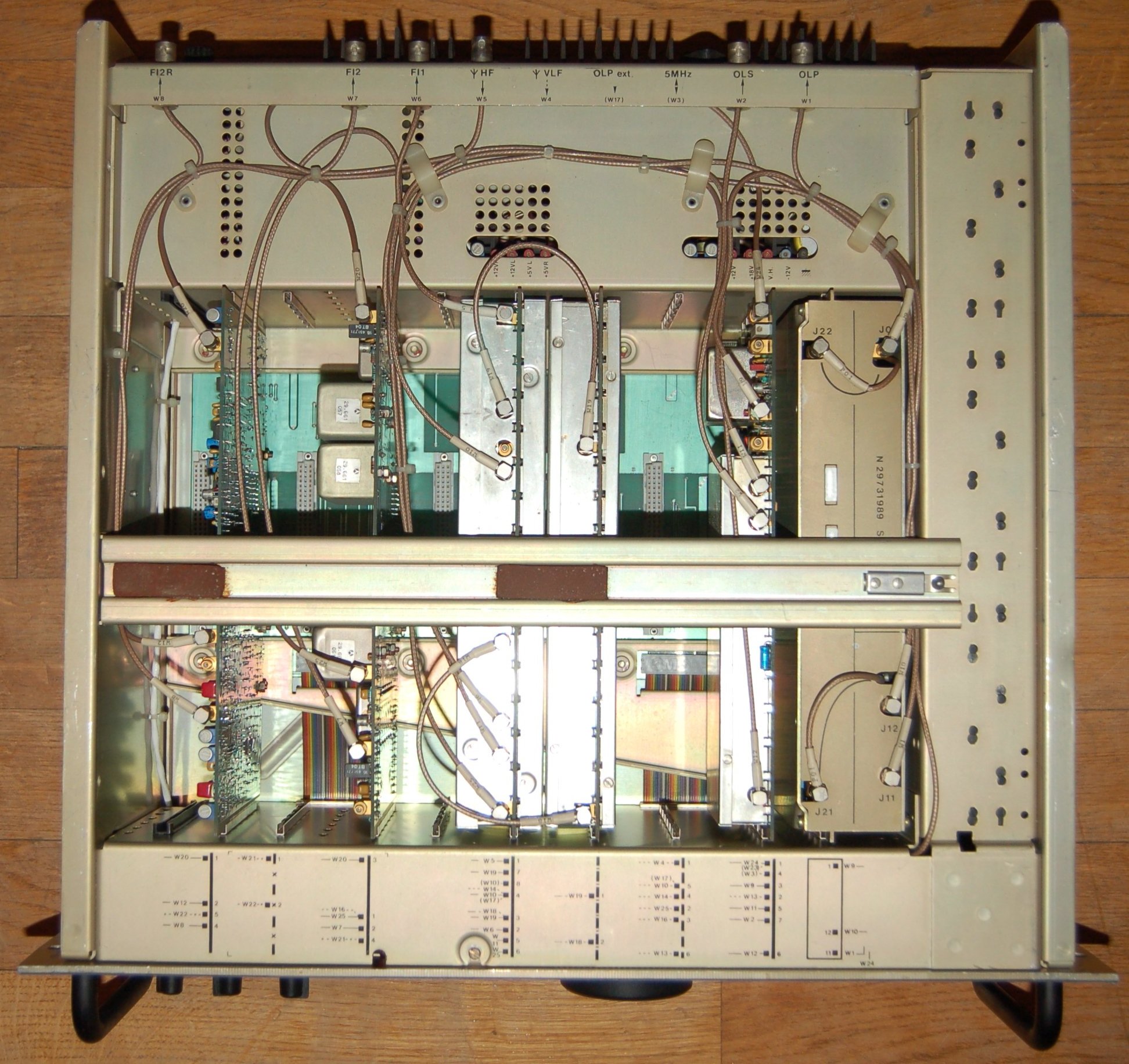

Upper view | Upper view |
|
|

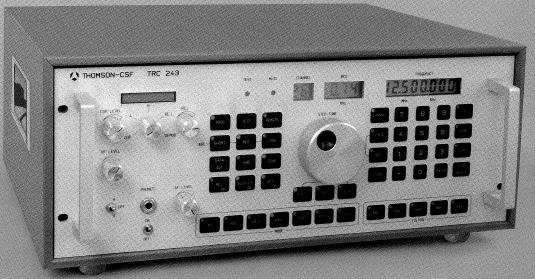

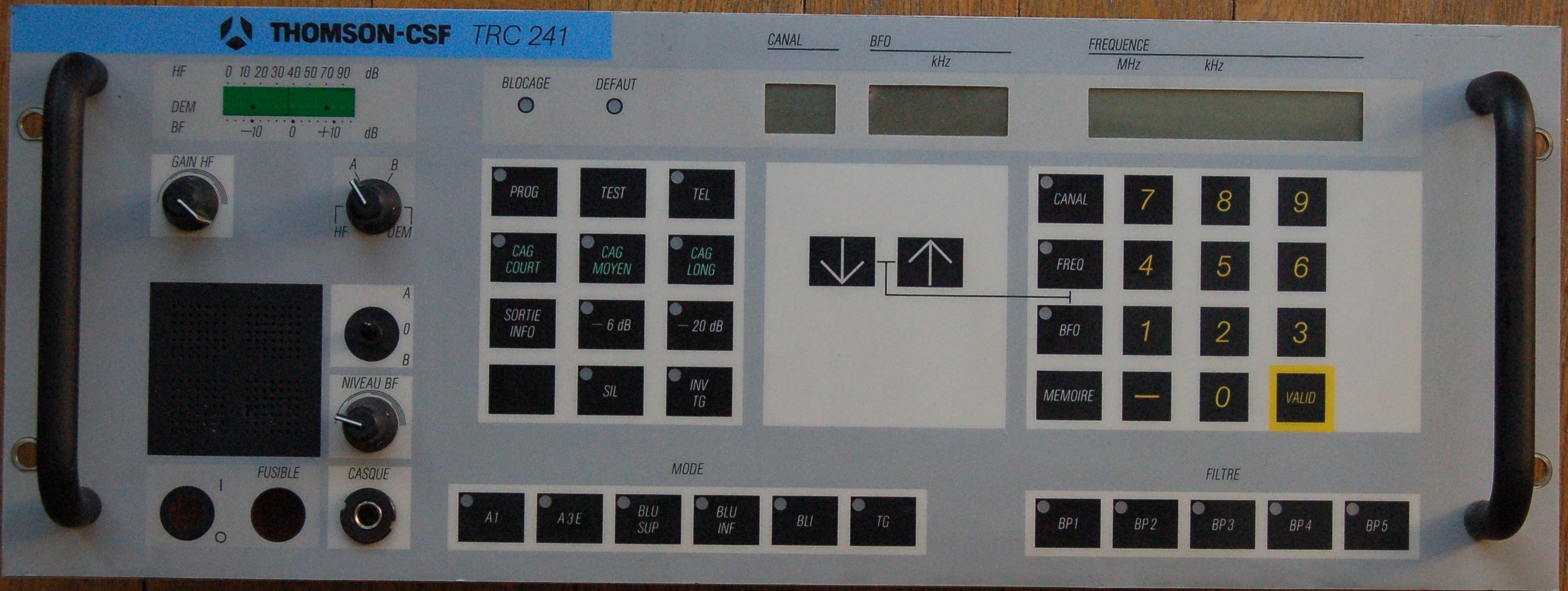

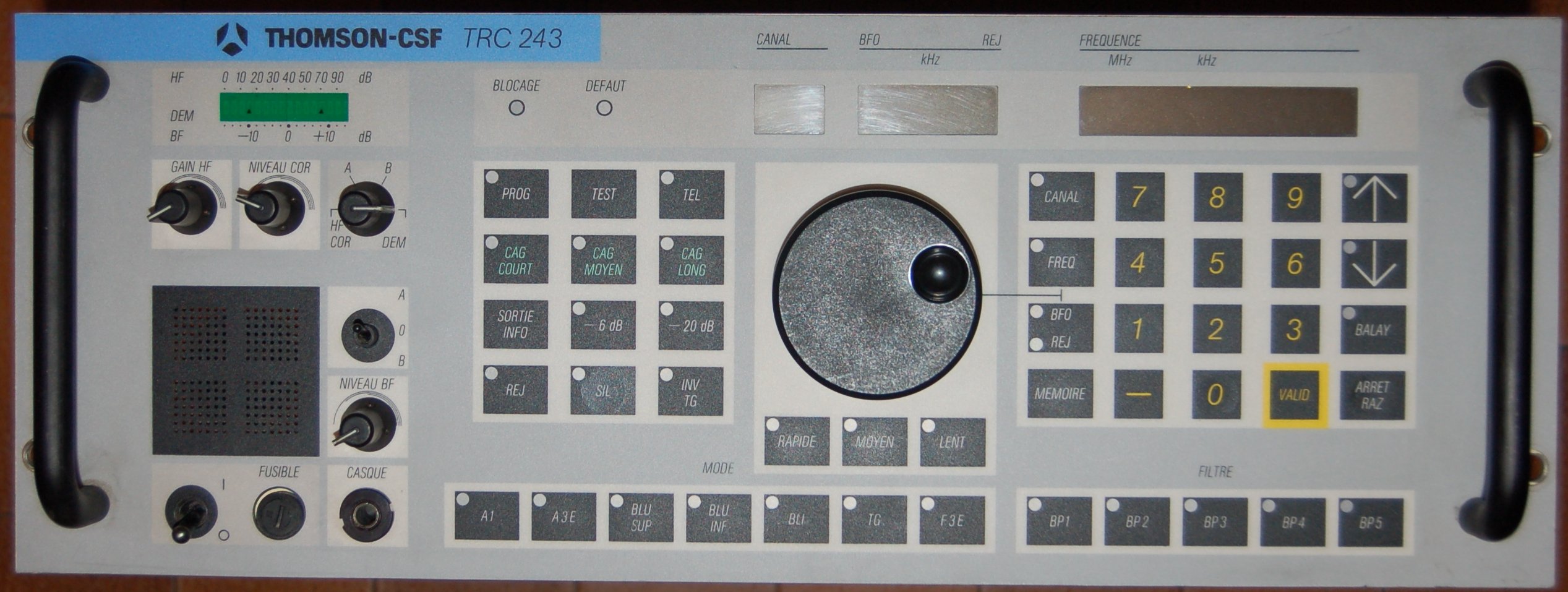

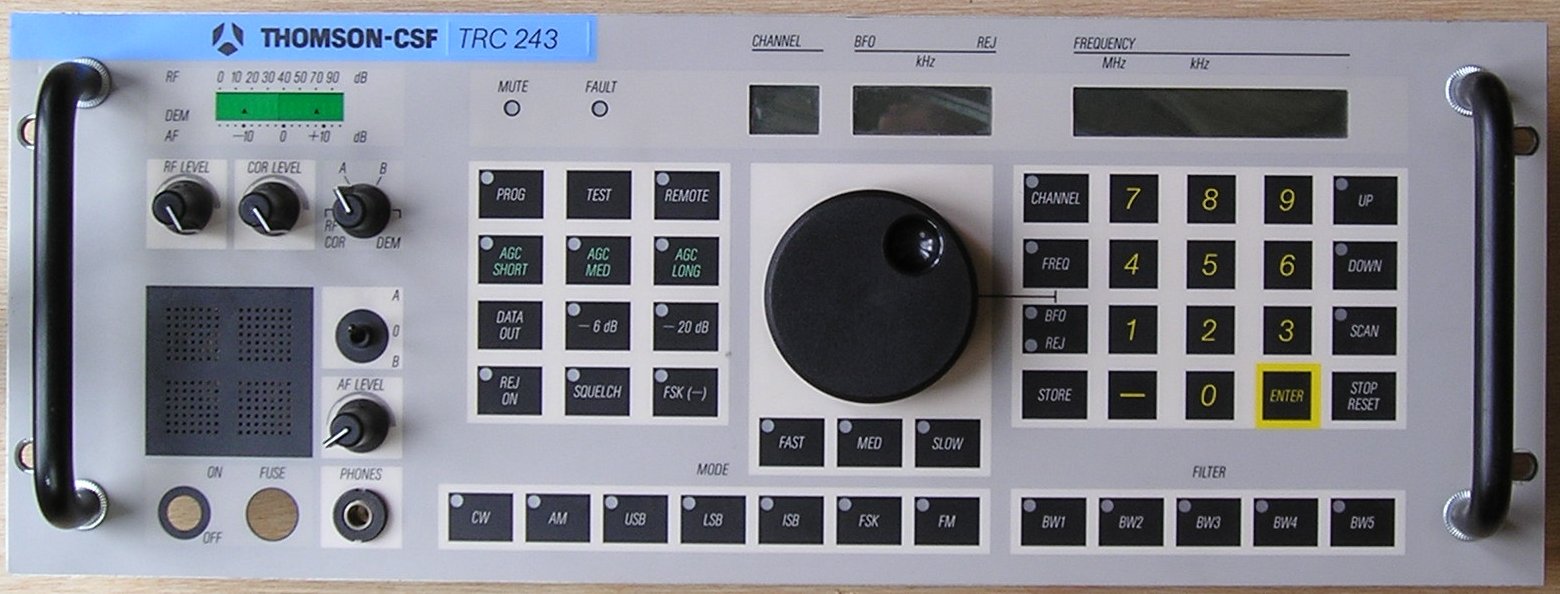

Front Face (UK) | Front Face (FR) |
|
|

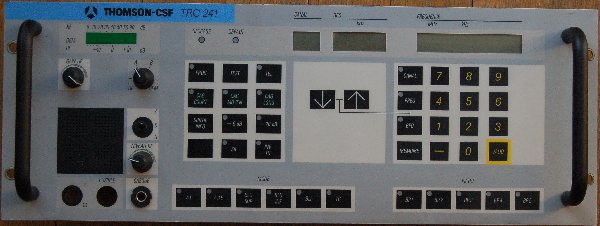

Front Face (241) | Front Face (proto) |
|
|

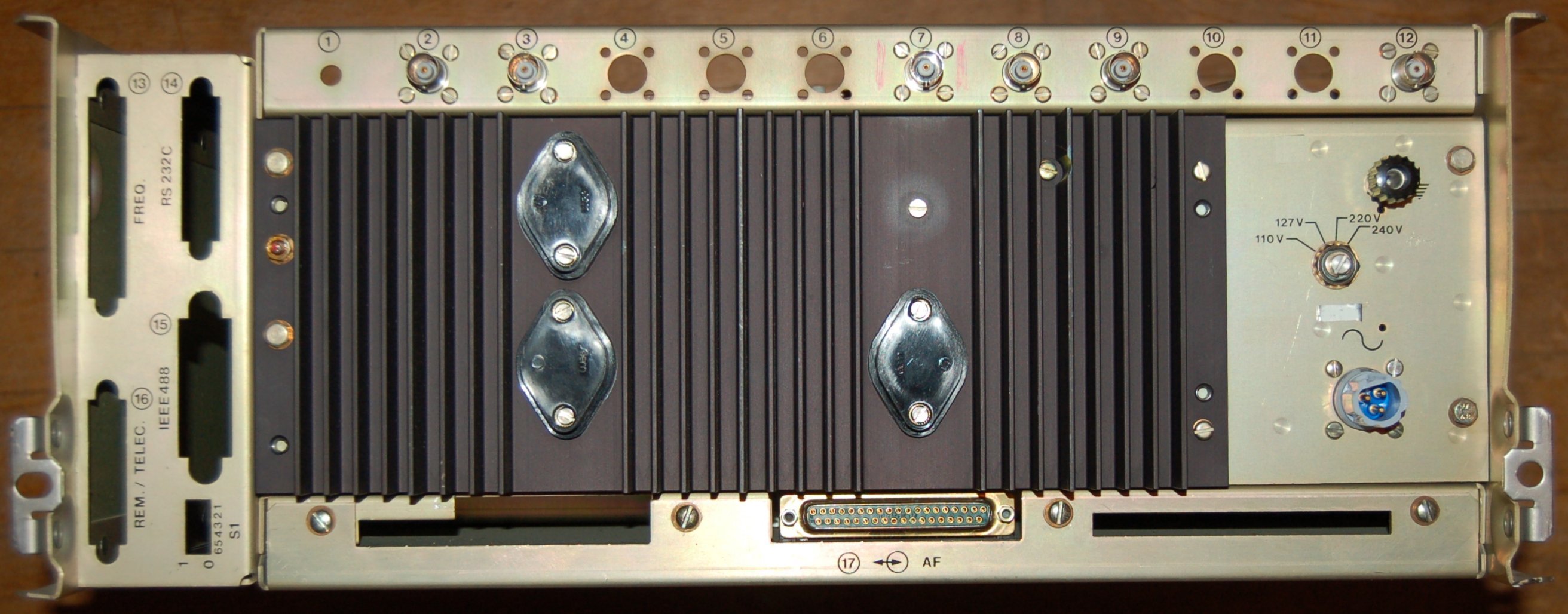

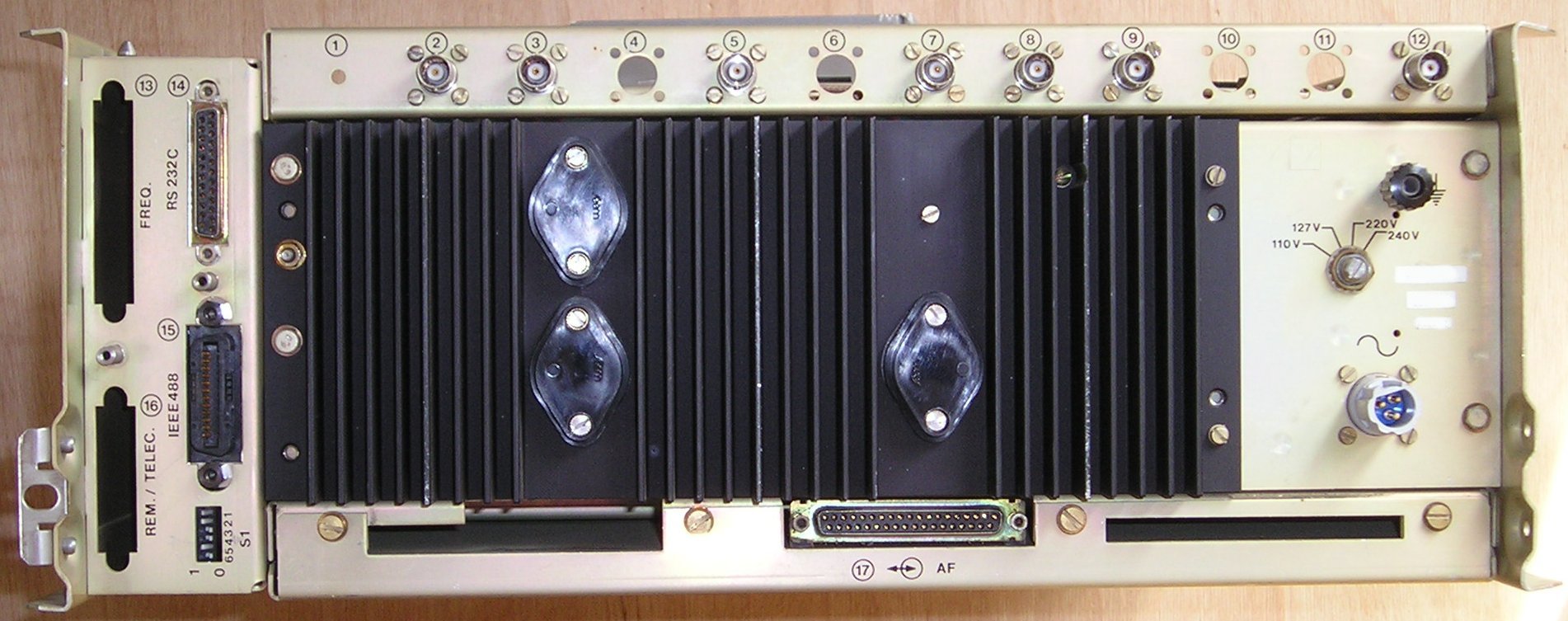

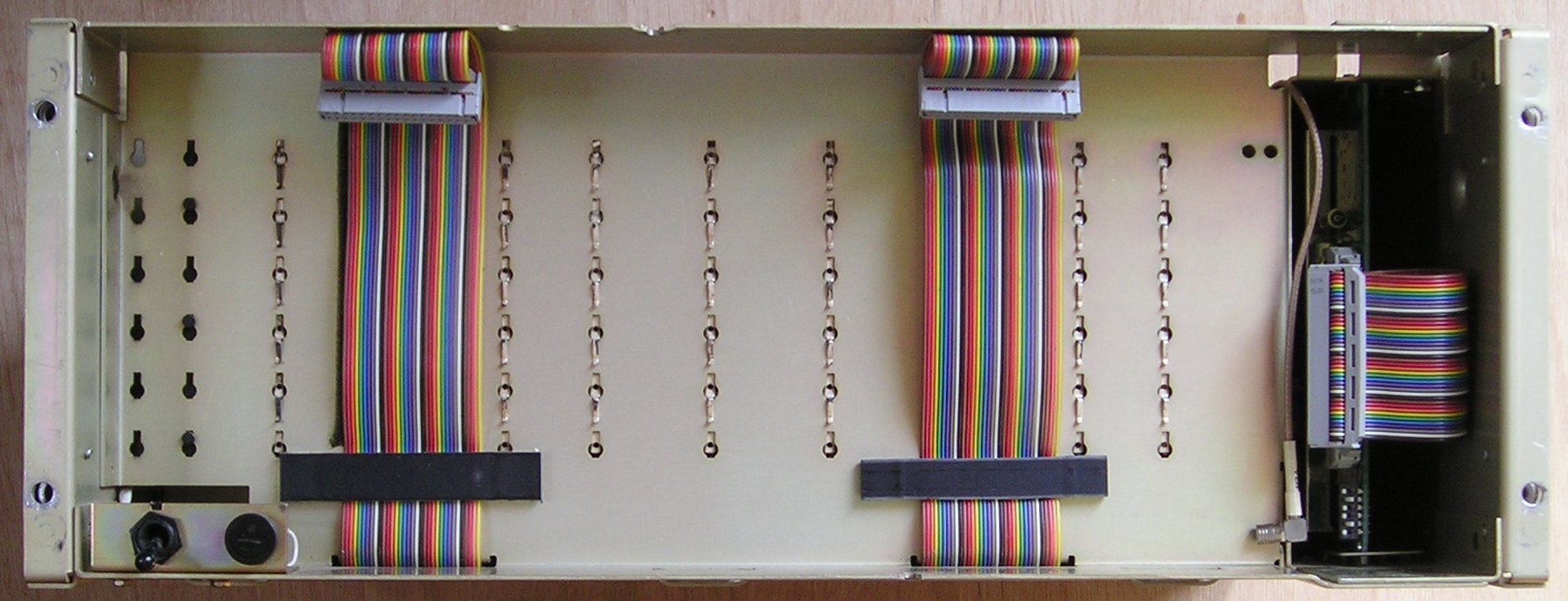

Rear view | Rear view |
|
|

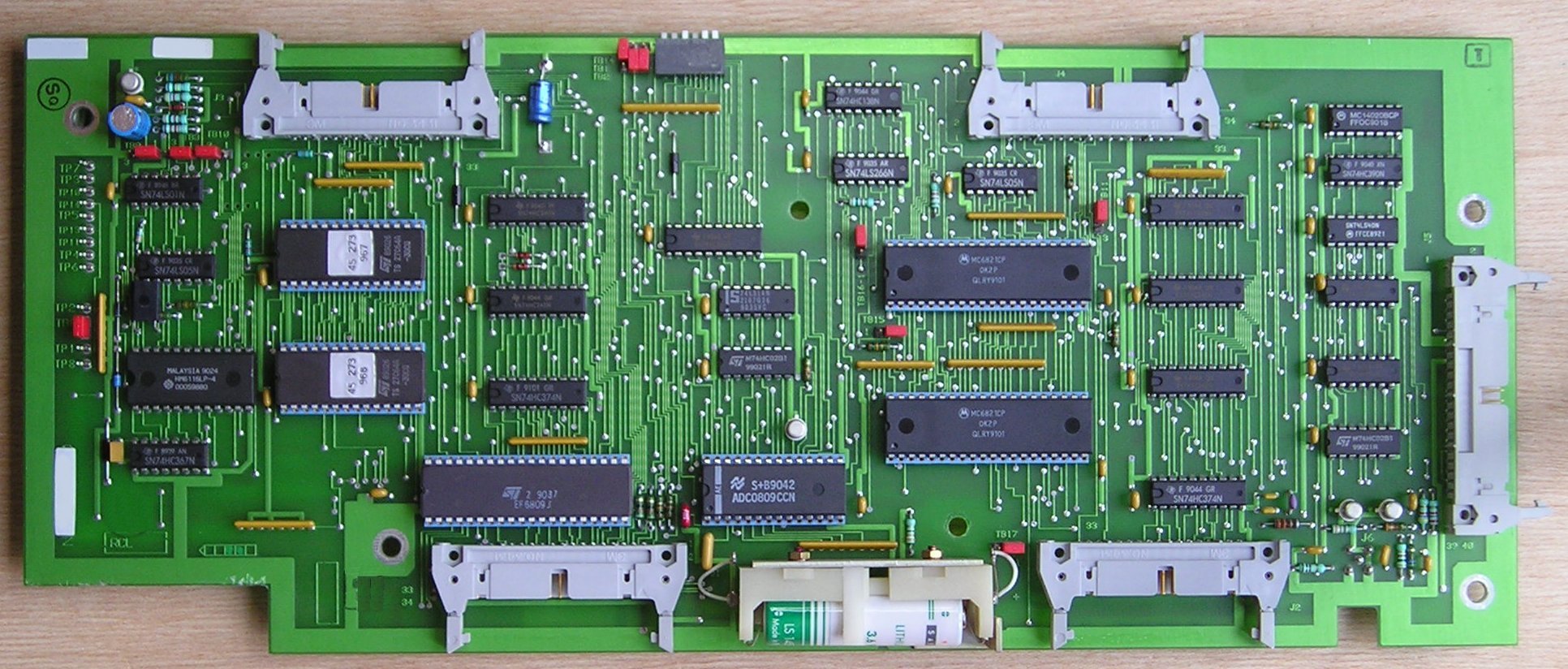

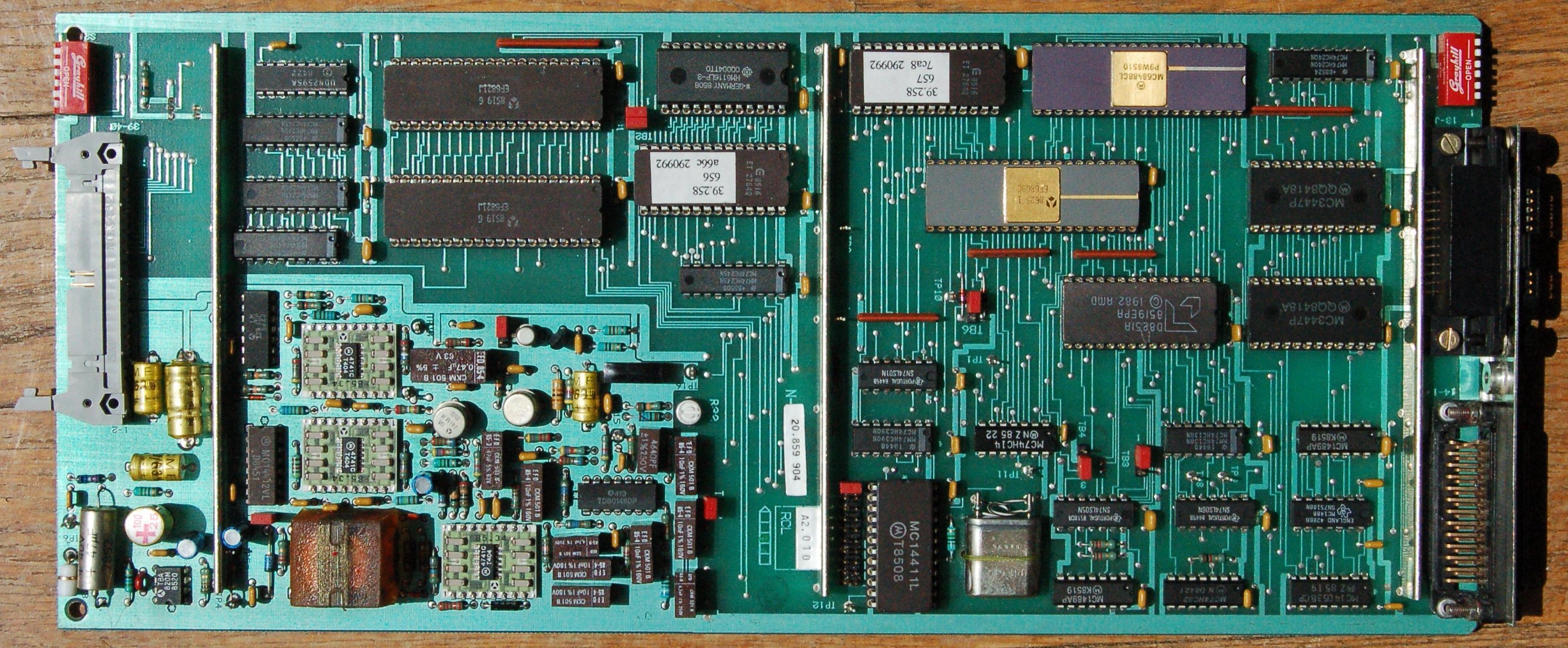

Face Slot | CPU Card |
|
|

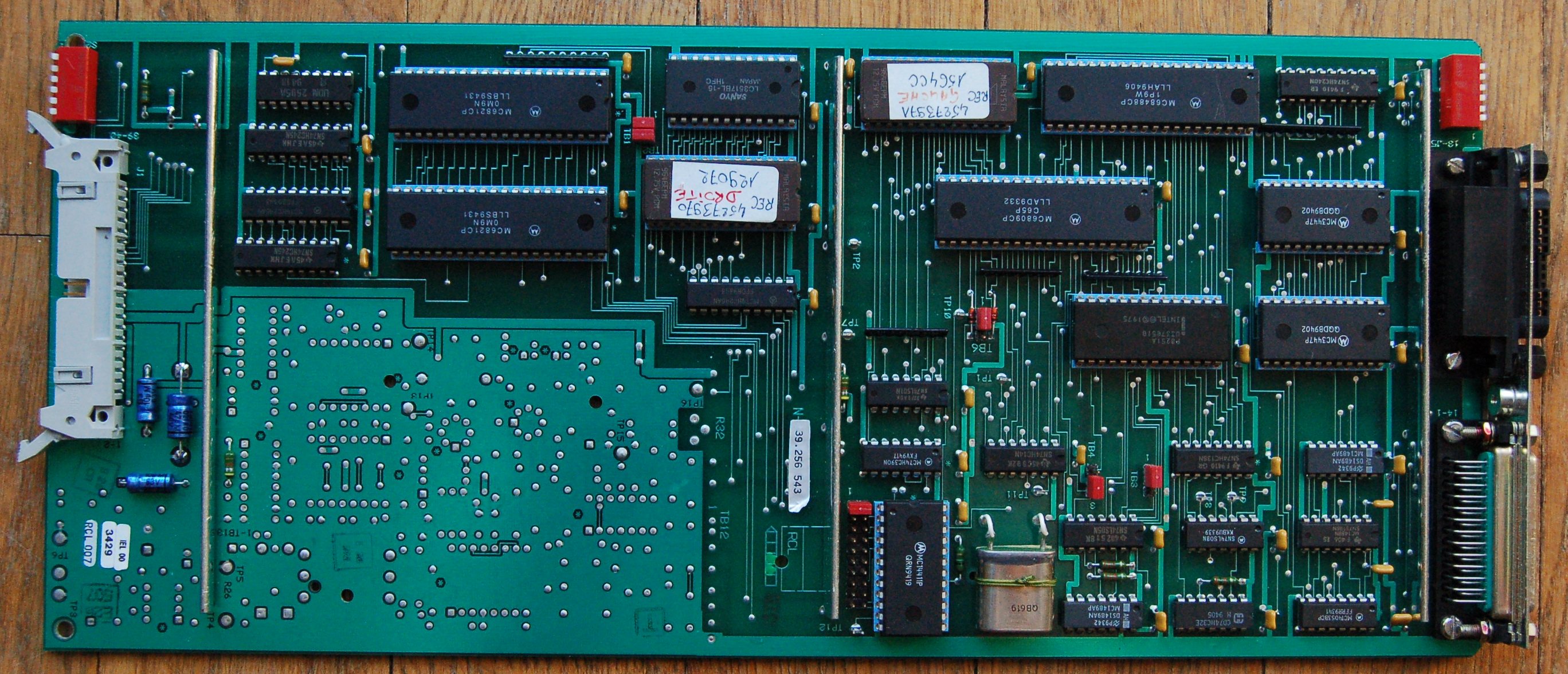

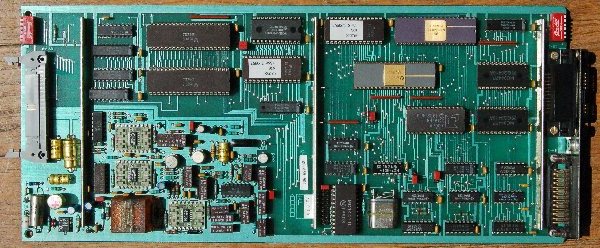

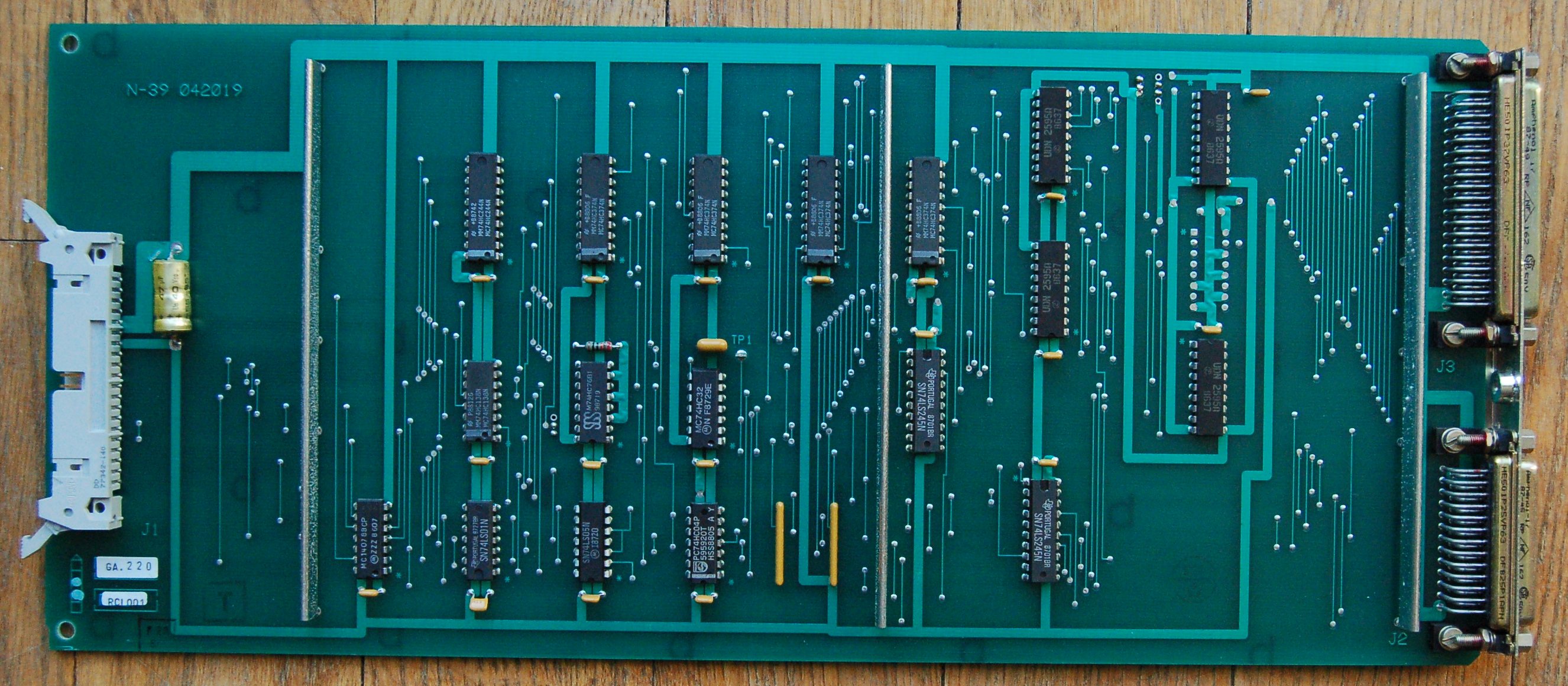

RS232 | Remote |
|
|

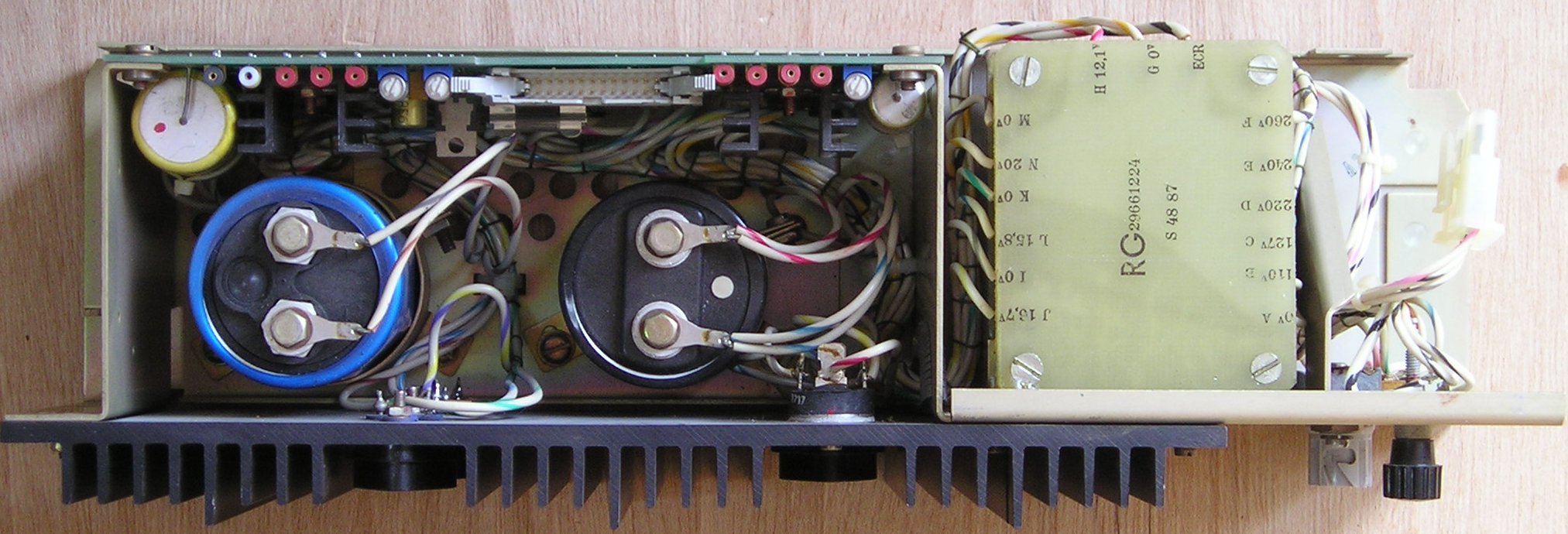

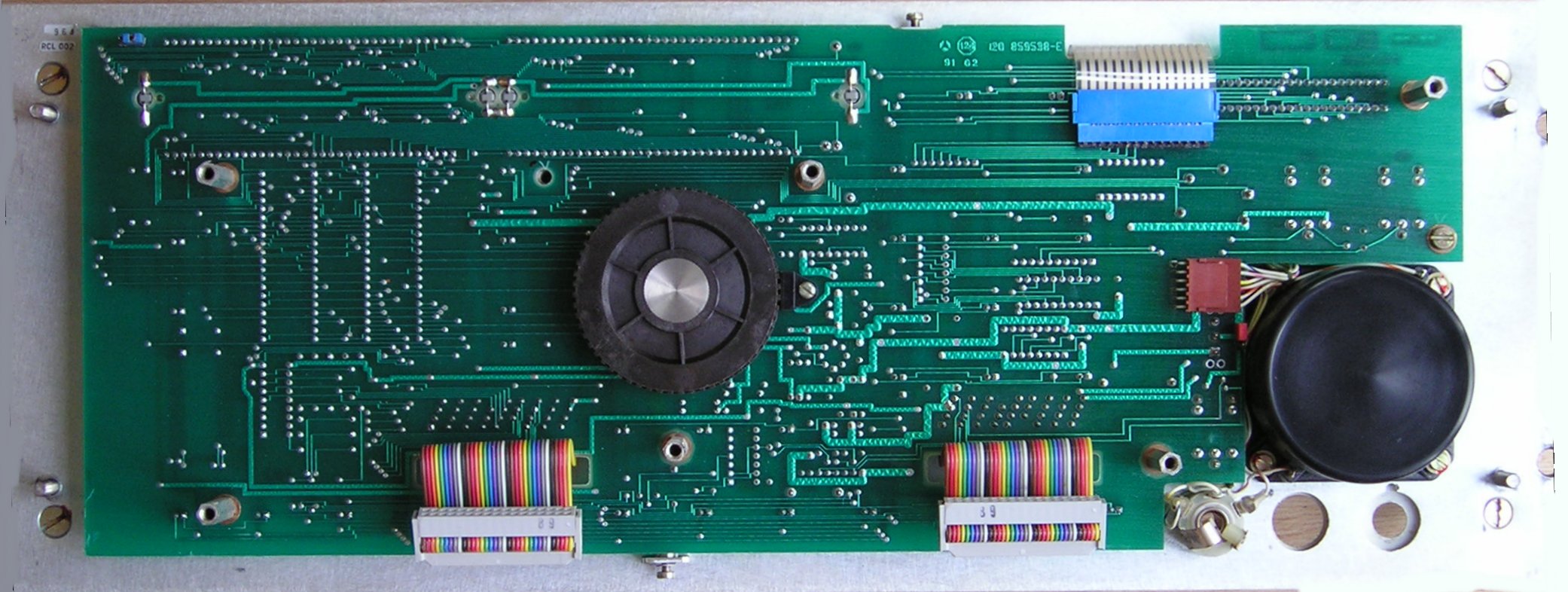

Dial card | Power Supply |
|
|

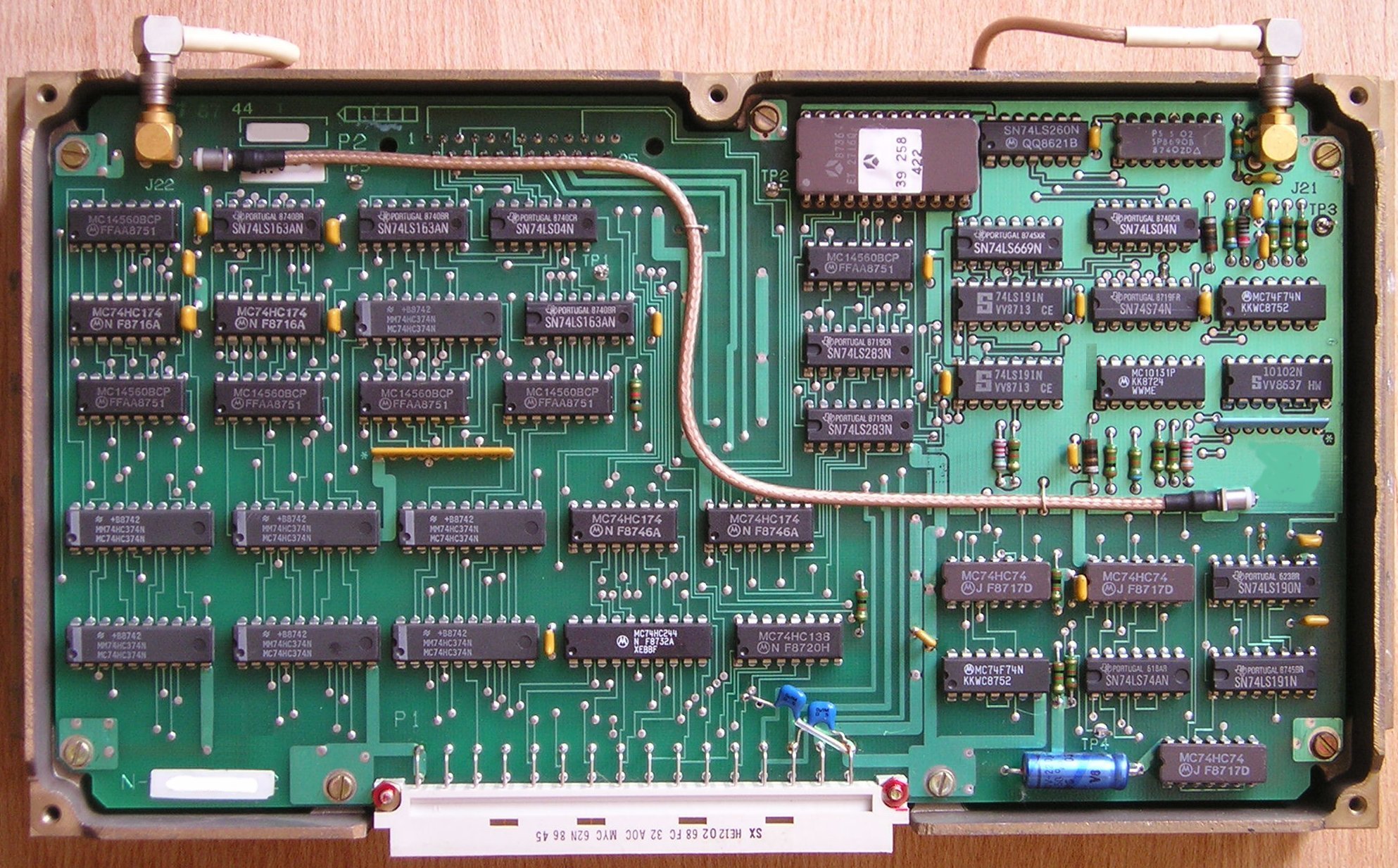

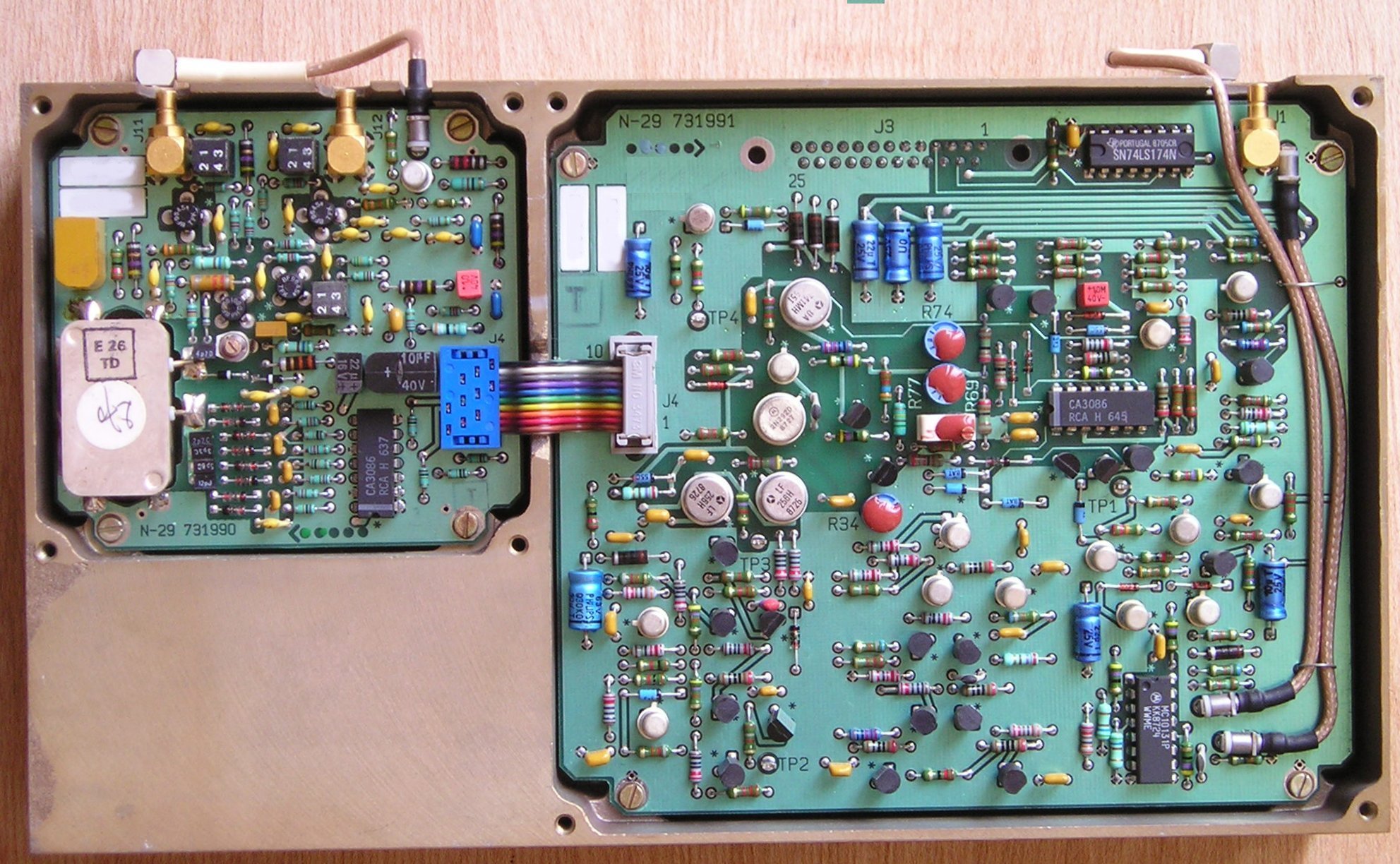

Synthetizer card - 1 | Synthetizer card - 2 |
|
|

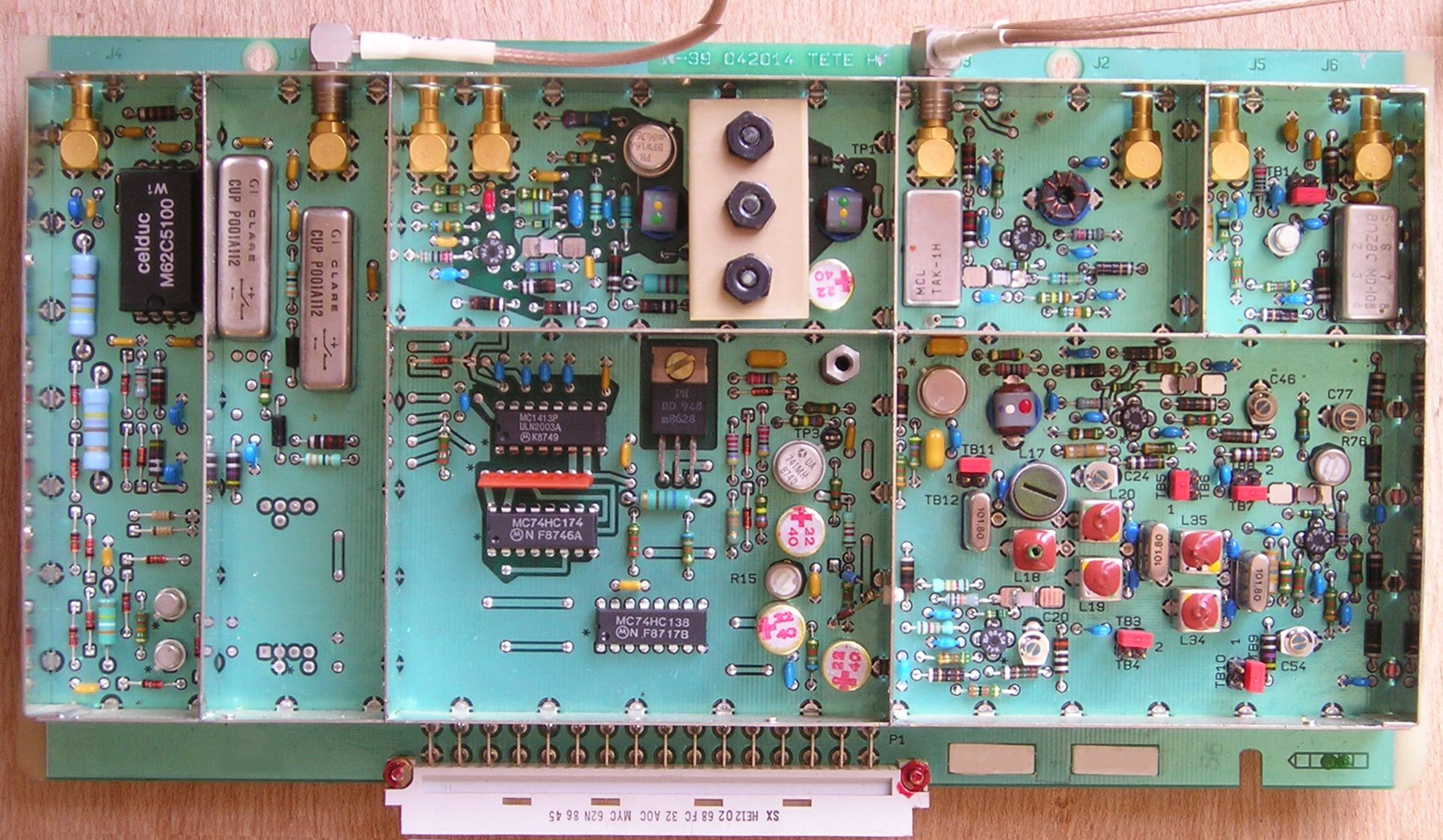

HF head card | Preselector card |
|
|

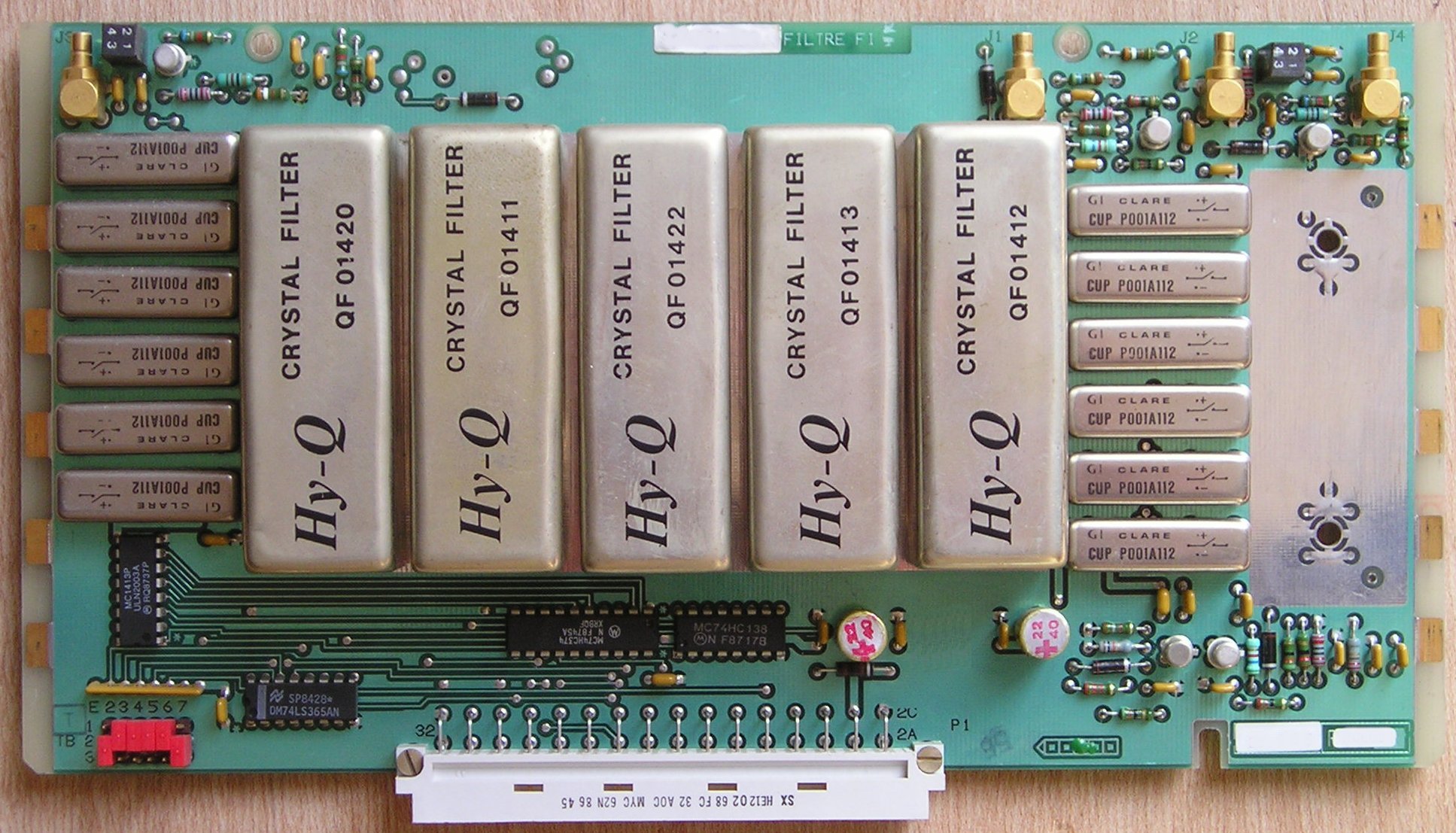

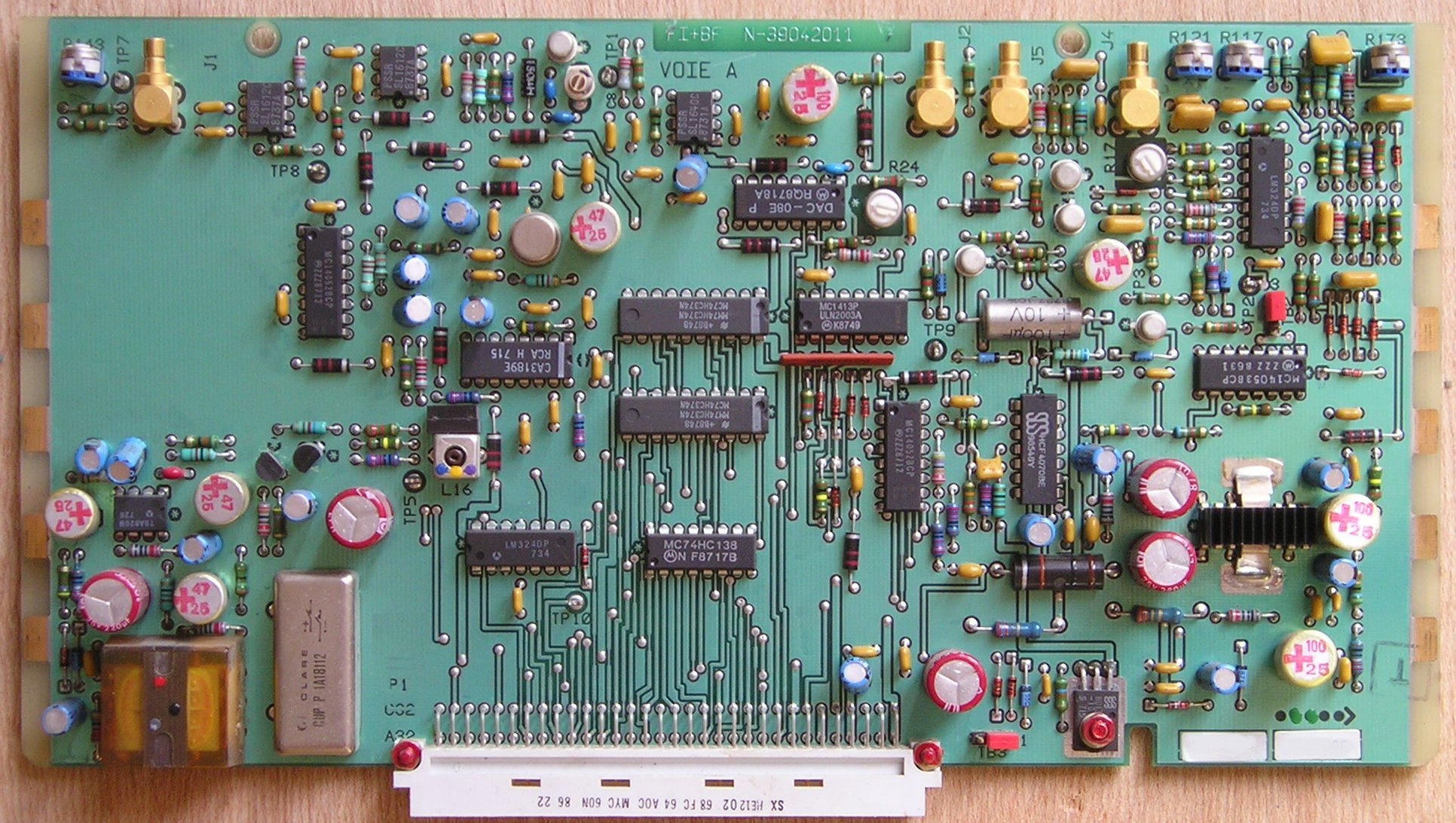

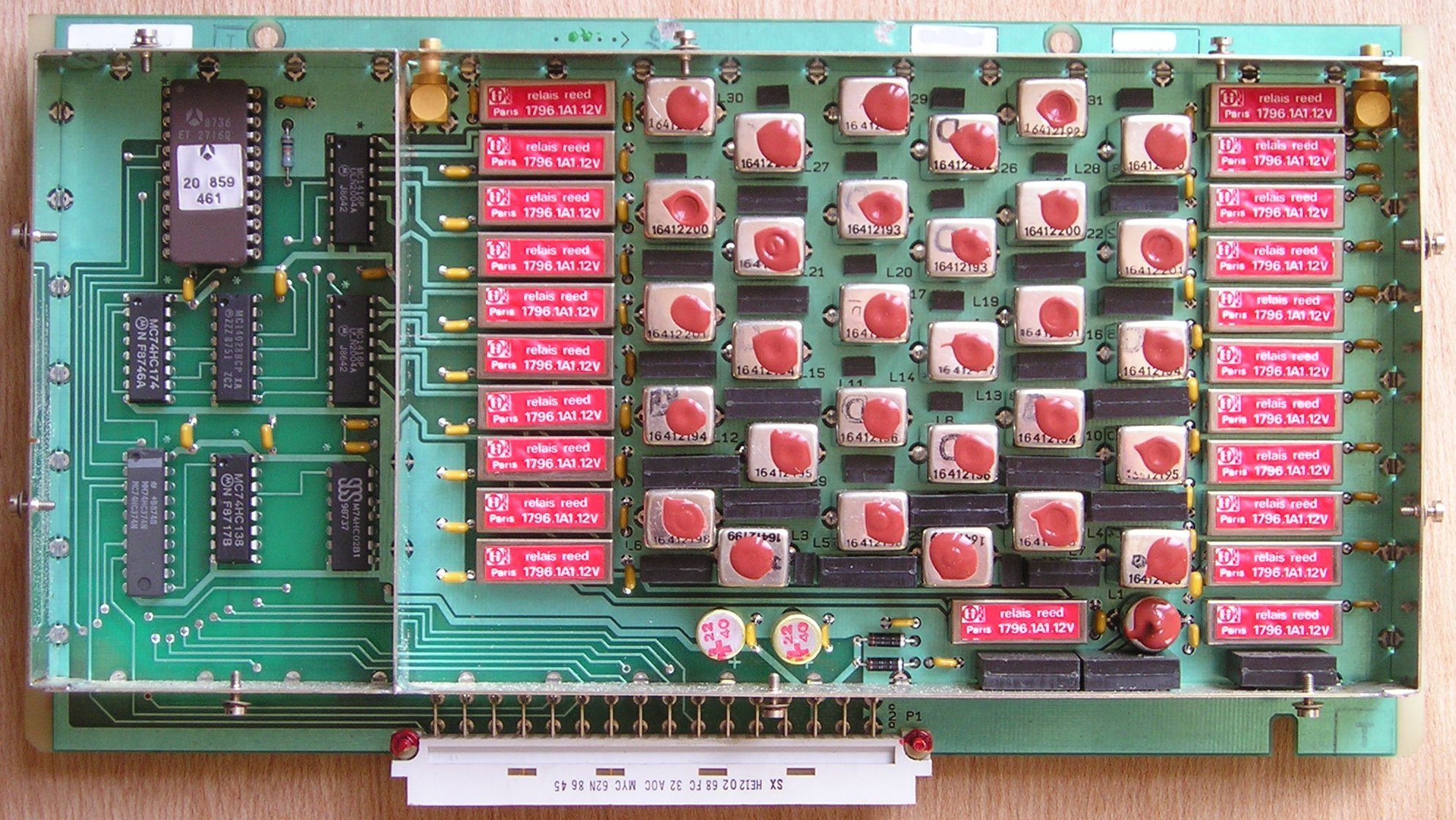

1.4Mhz Filter card | IF & BF card |
|
|

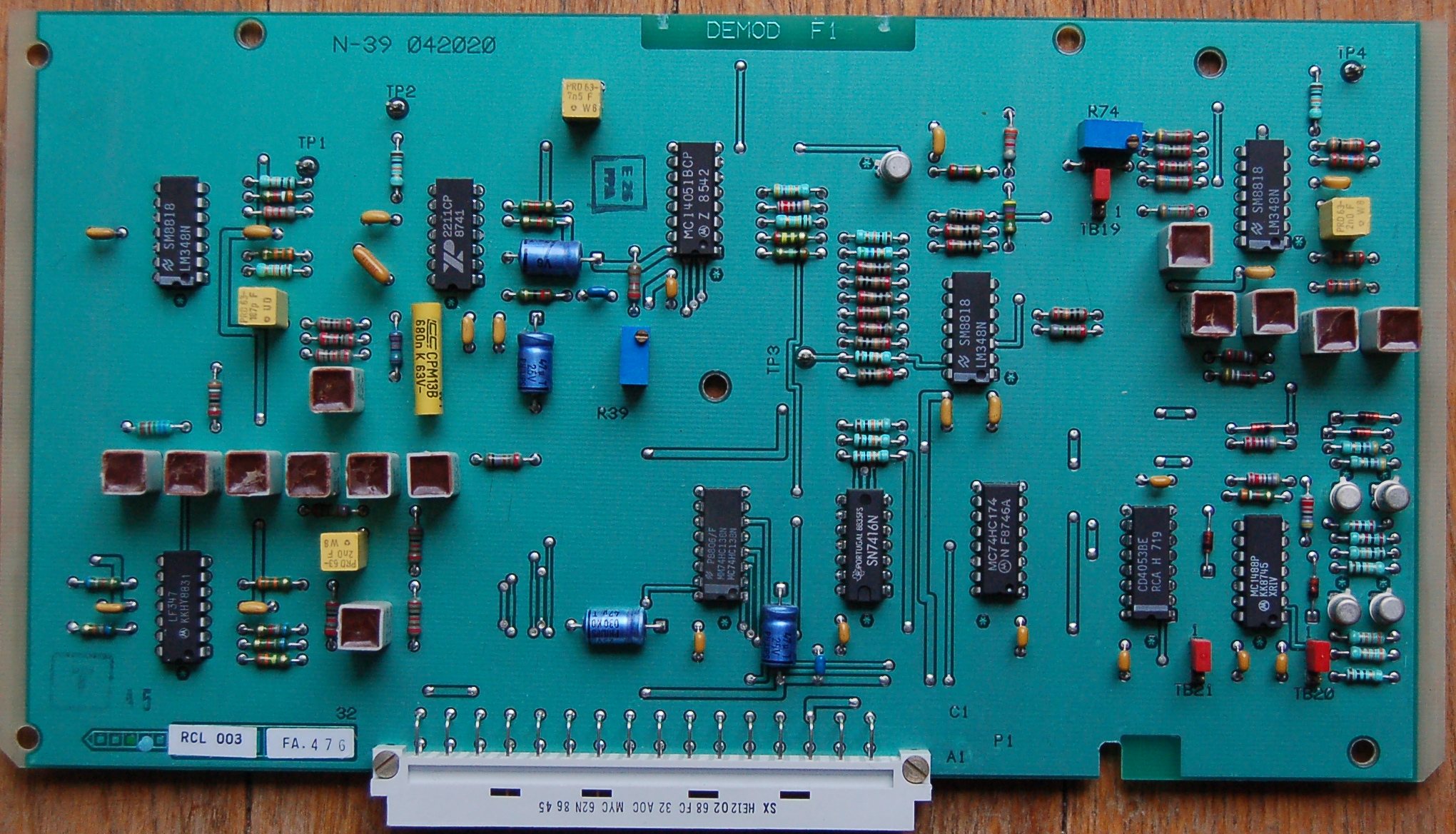

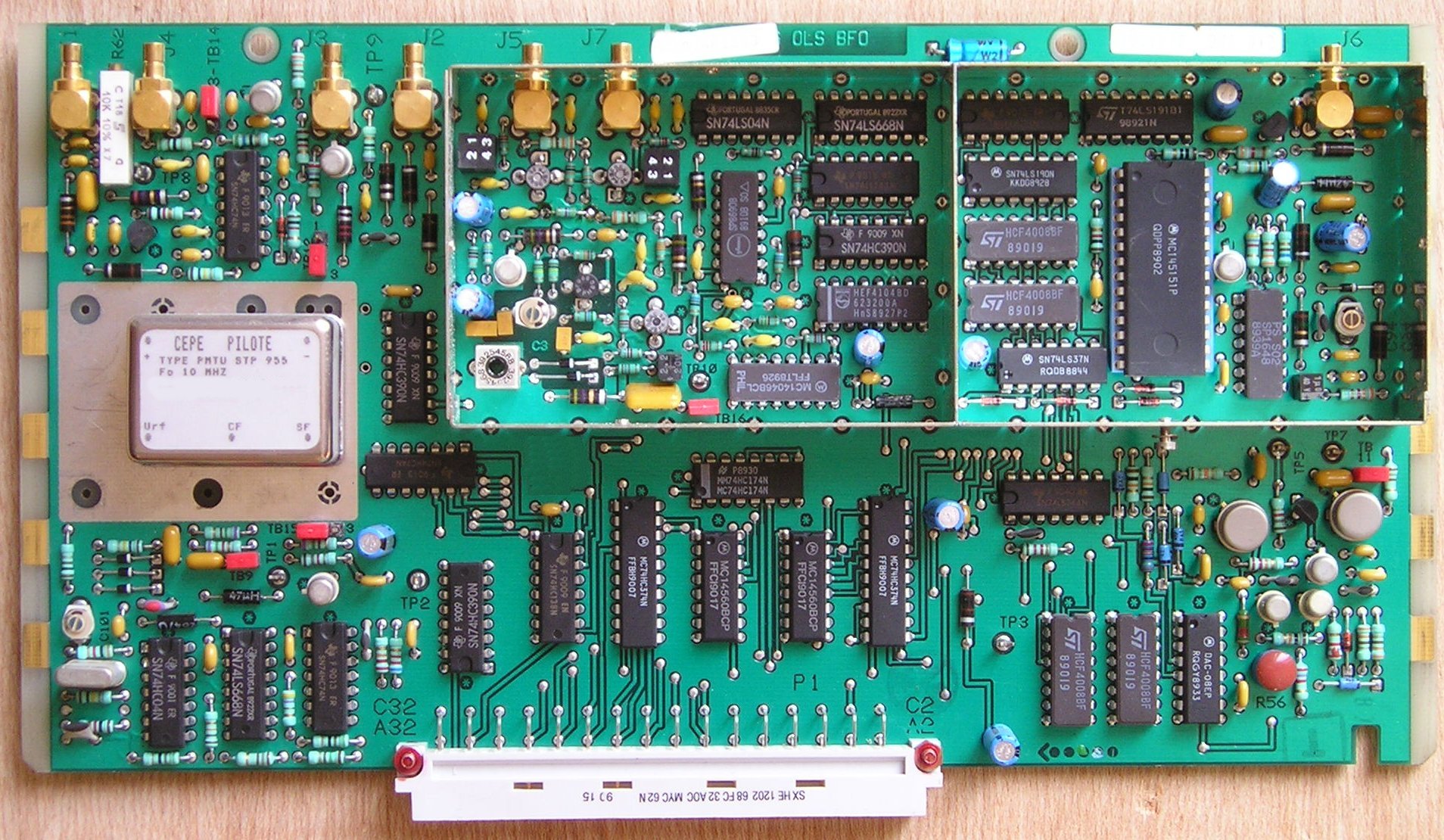

BFO card | F1 Card |
|
|

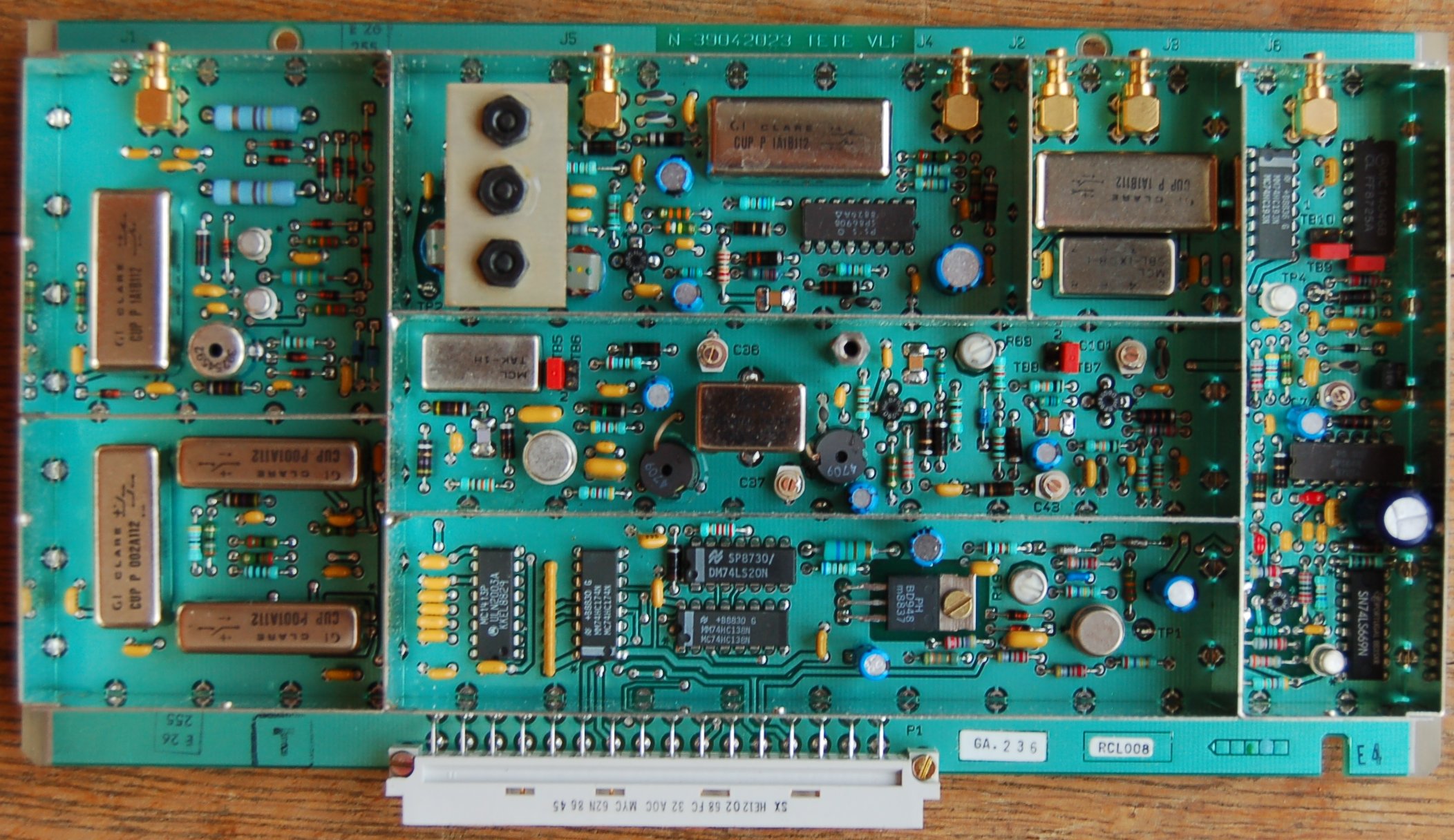

VLF head card | RS232 with Modem |
|
|
