Technical data
The TE-712B is the Pfizner Teletron reference for an HF solid-state receiver used by the German army. This model seems to have been designed around 1976.
Here are its technical specifications:
- Receiving mode:
A1, A3, F1, USB, LSB
- Frequency coverage:
Continuous 1Hz tunable from
10Khz to 30Mhz
AFC (75Hz carrier filter BW) with 3 tracking mode: 100% carrier, reduced carrier, no carrier
- IF:
IF1: 75Mhz
IF2: 30Khz
with a 13Khz dedicated output
- Filters:
LC filters
75, 150, 300, 700, 1000, 1500, 3000, 6000Hz all modes
1khz audio filter
IF2 rejection filter (27/33Khz)
- BFO:
Fixed
- CONTROL:
CAG level: manual, 5dB/s, 50dB/s, 500dB/s
30Khz and 13Khz output
Memories (15)
Antenna selection (1 in 20)
Full serial remote control
Parallel status output

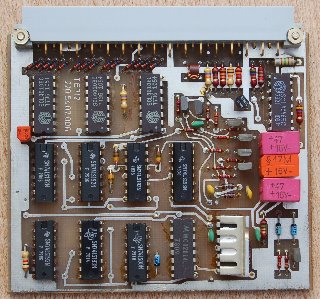

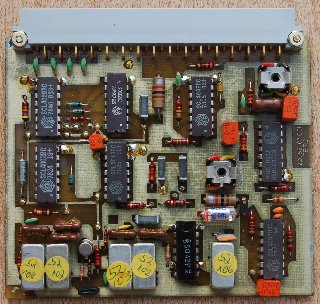

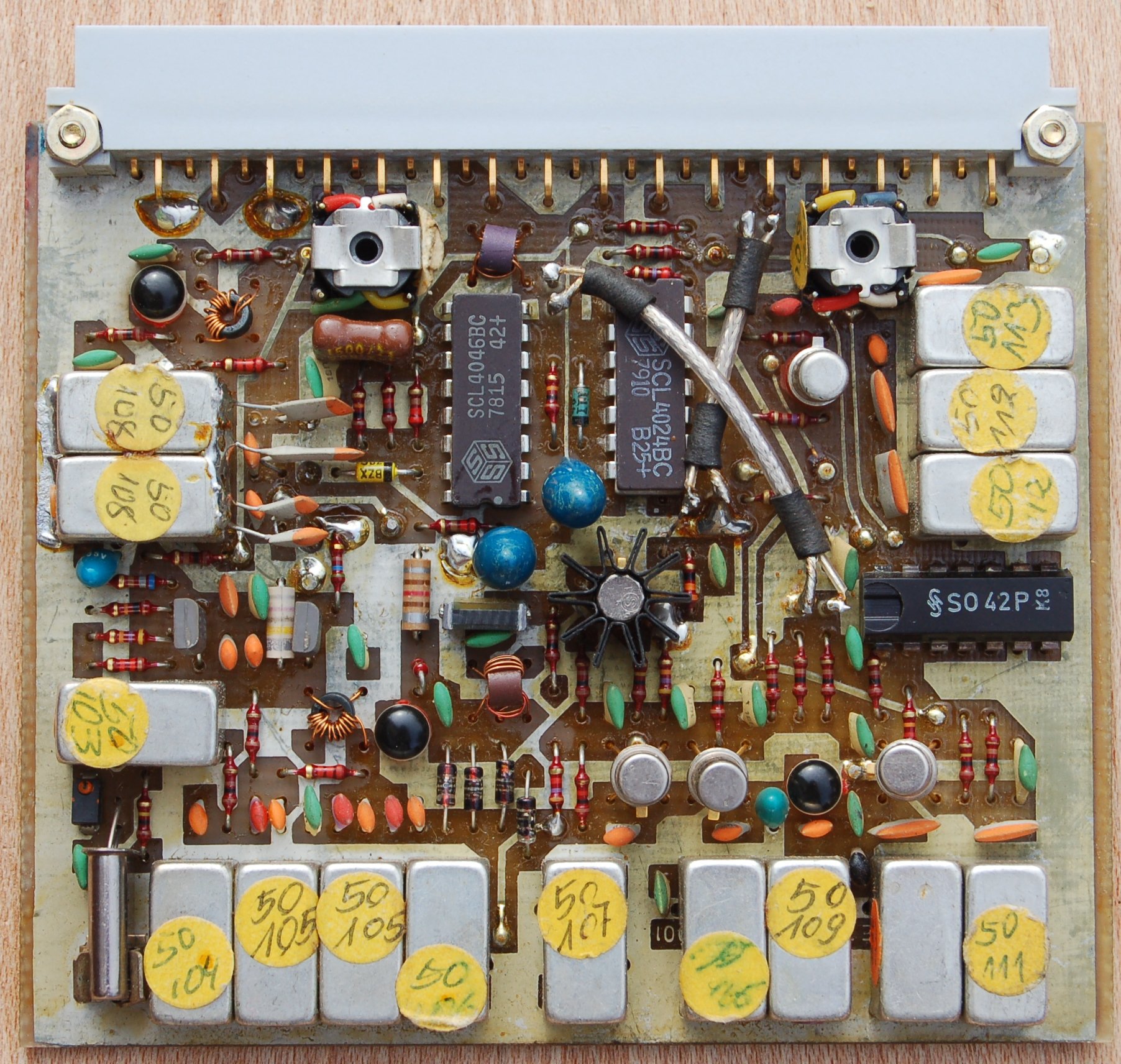

Pictures
| Front view |
 |
| Rear view |
 |

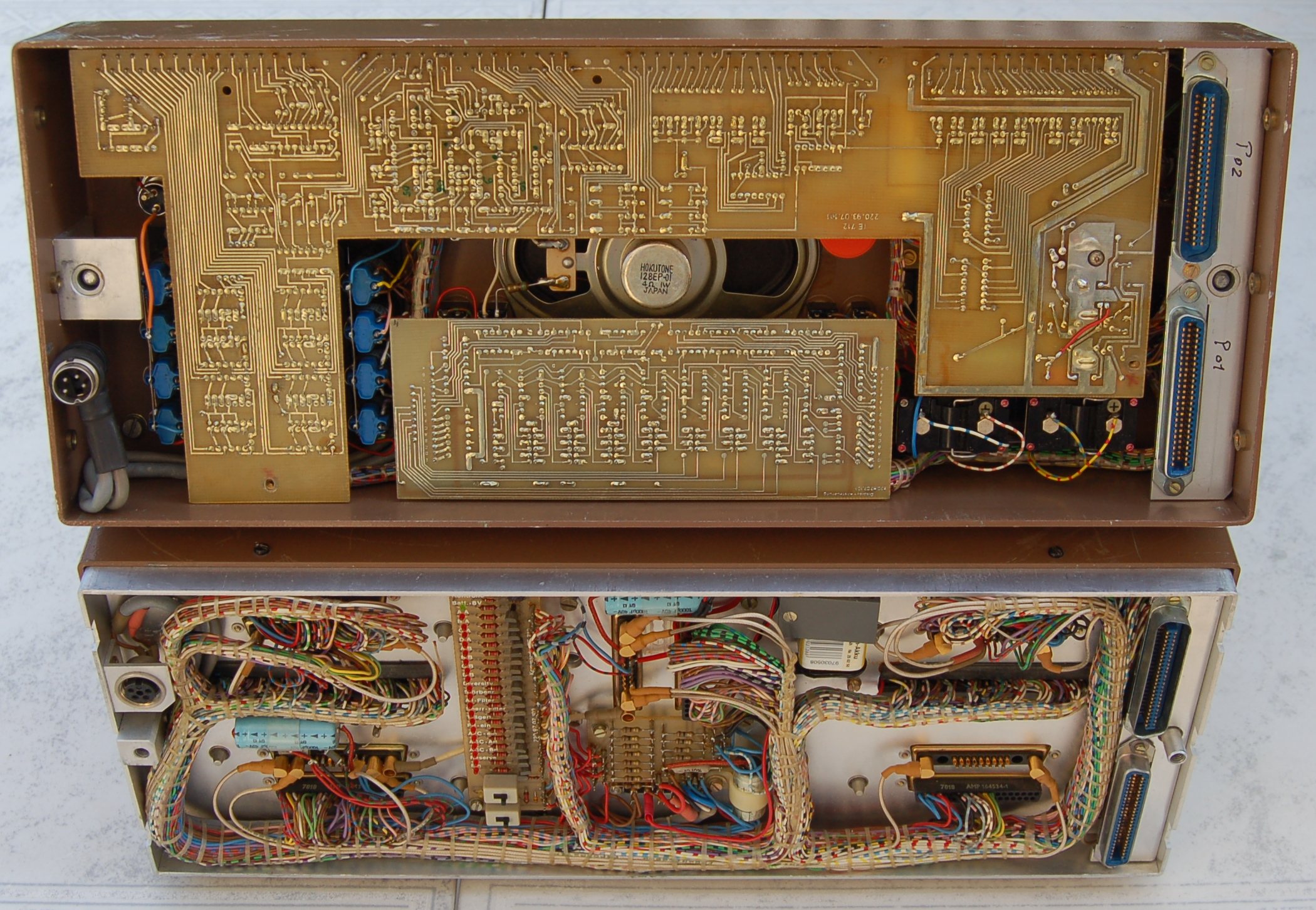

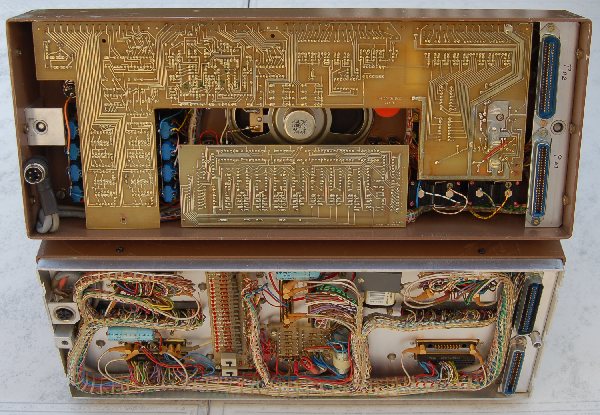

| Inside front panel |
 |

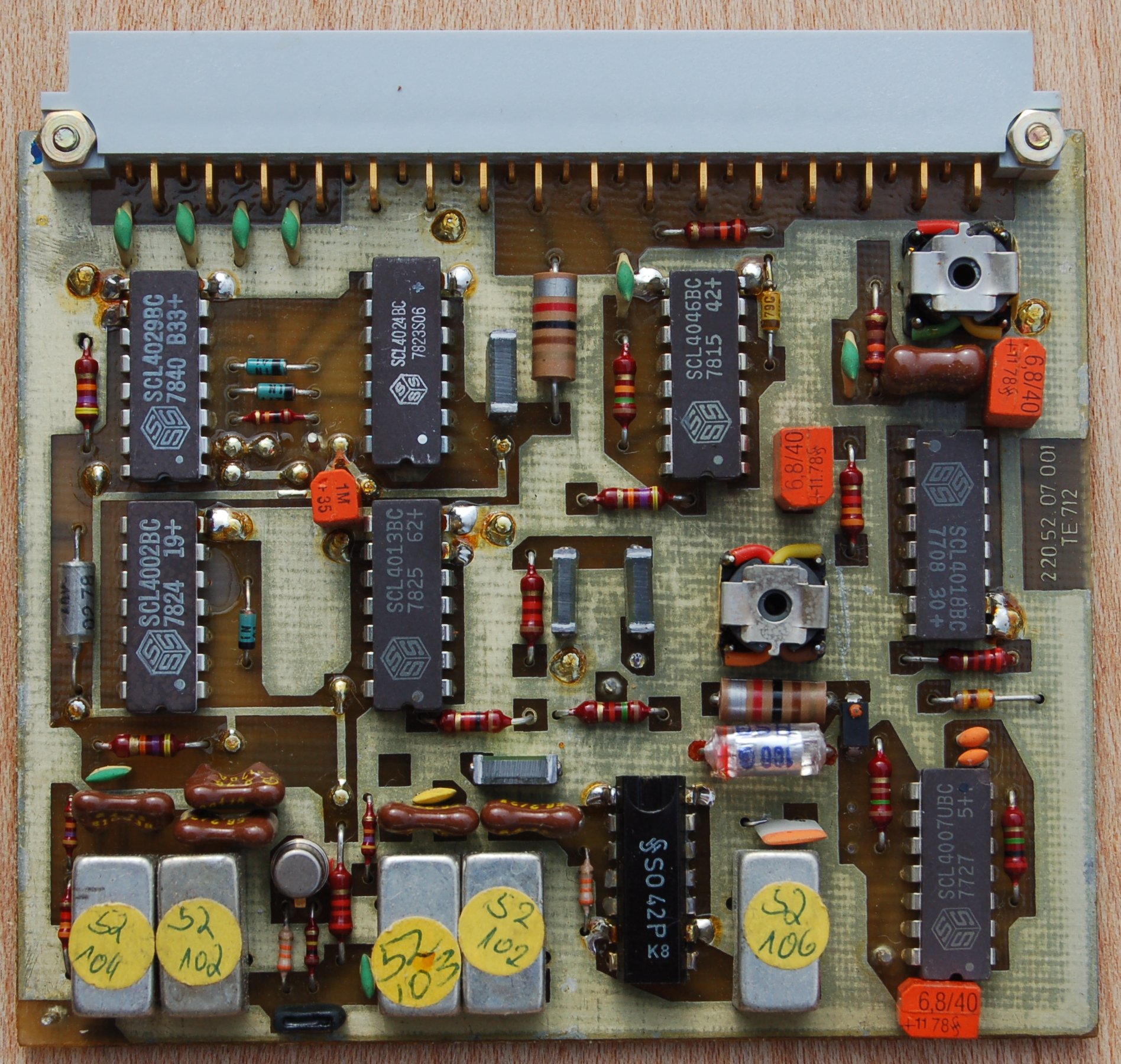

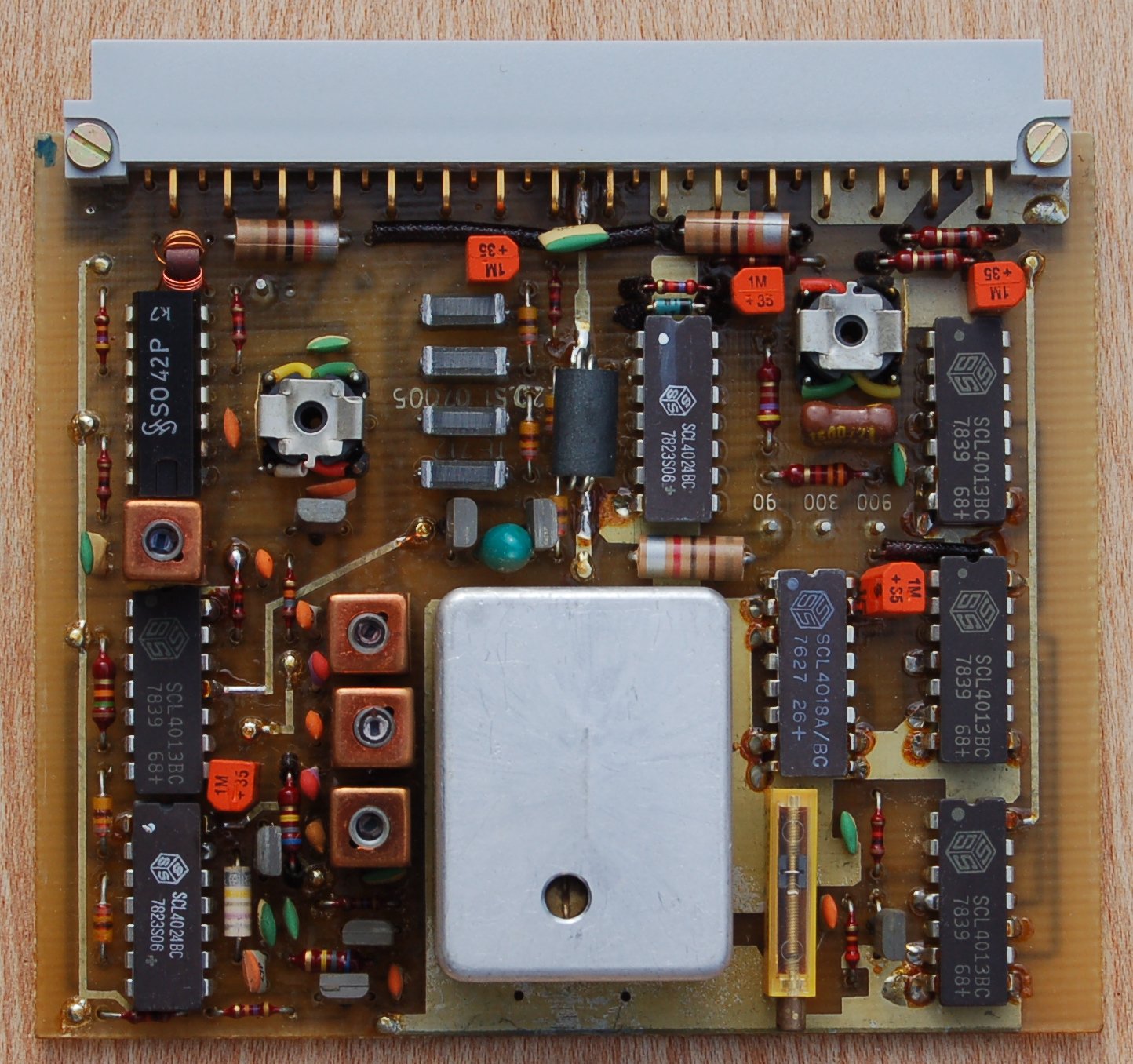

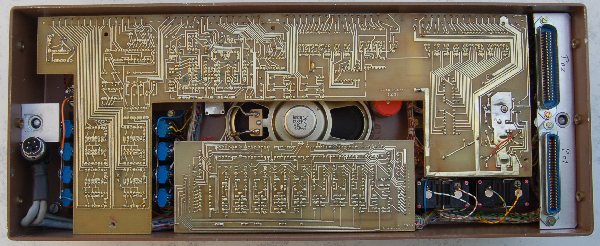

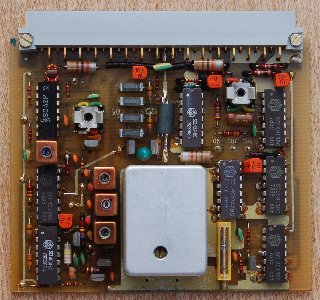

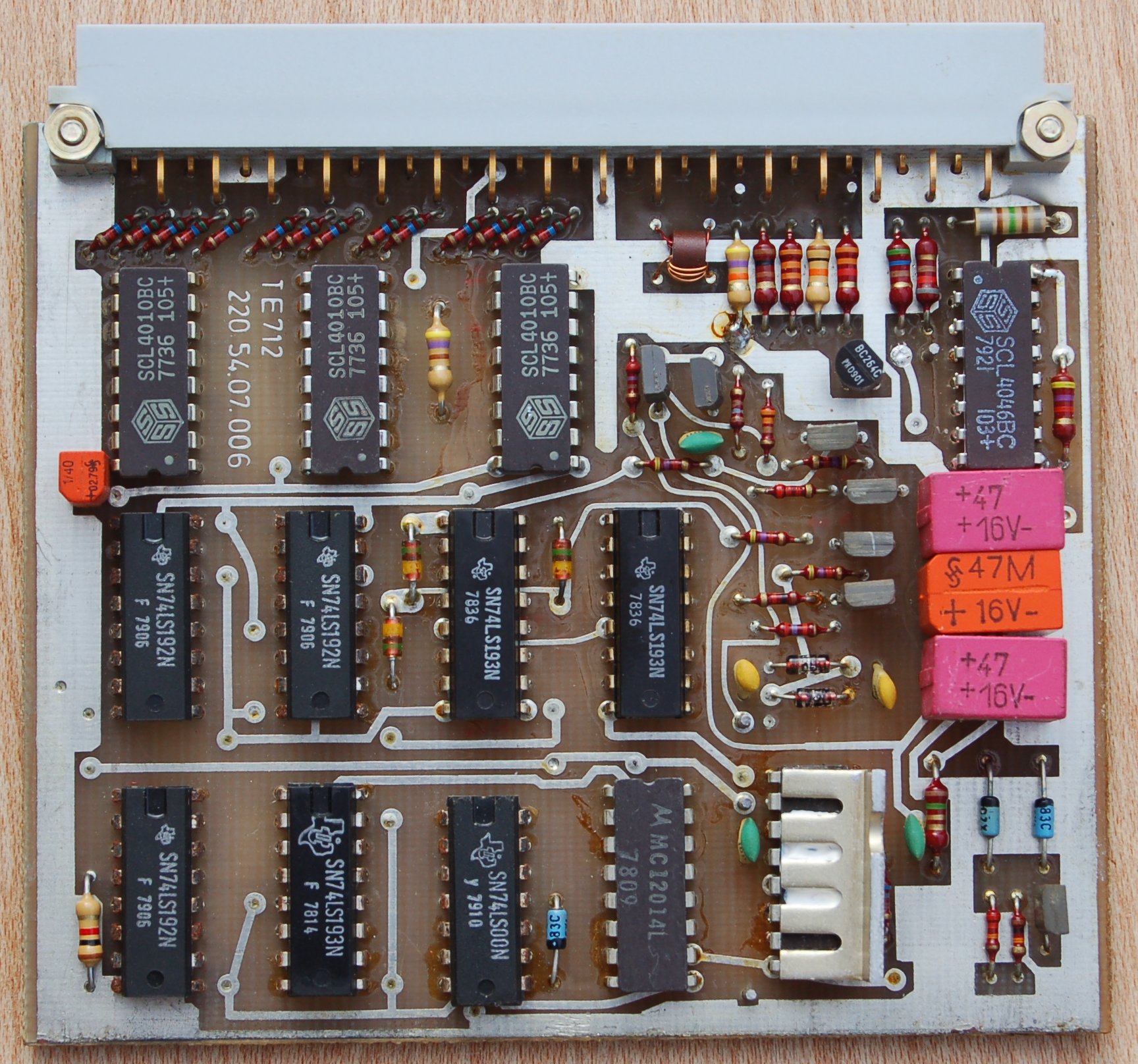

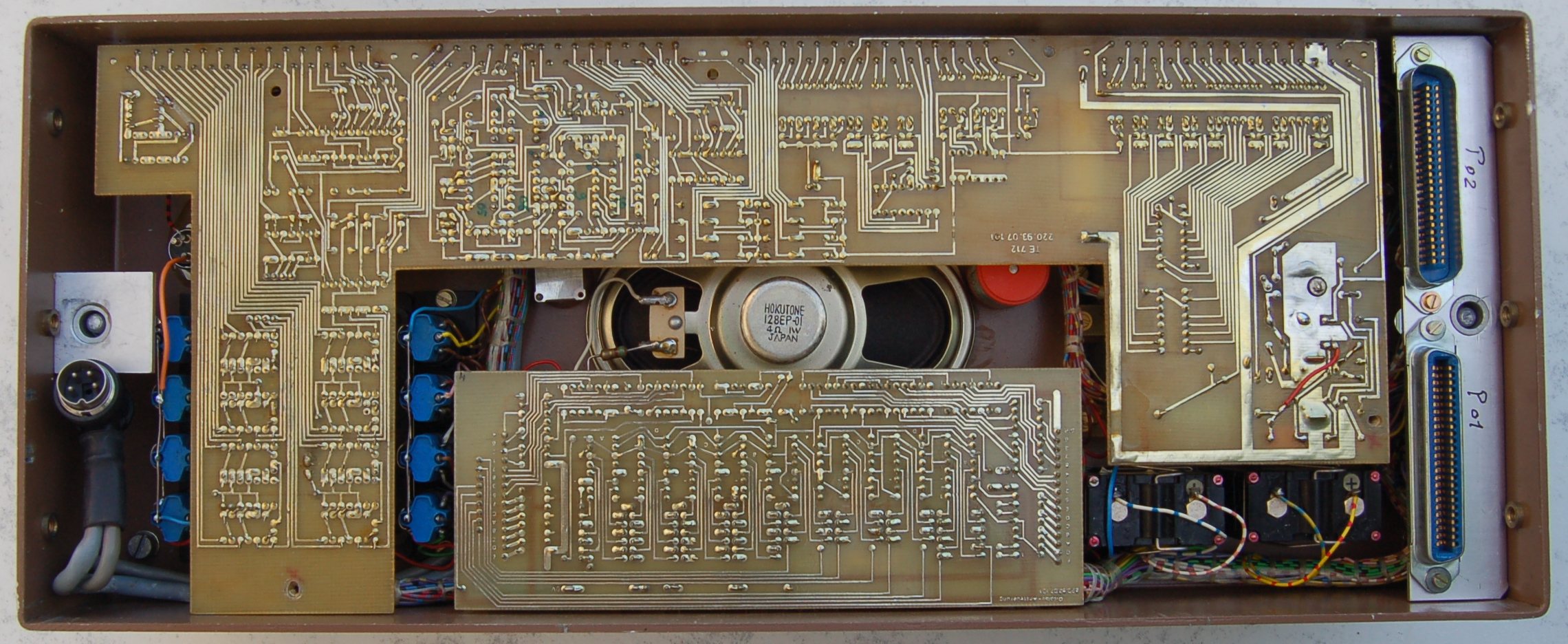

| Upper view | Front view |
 |
 |

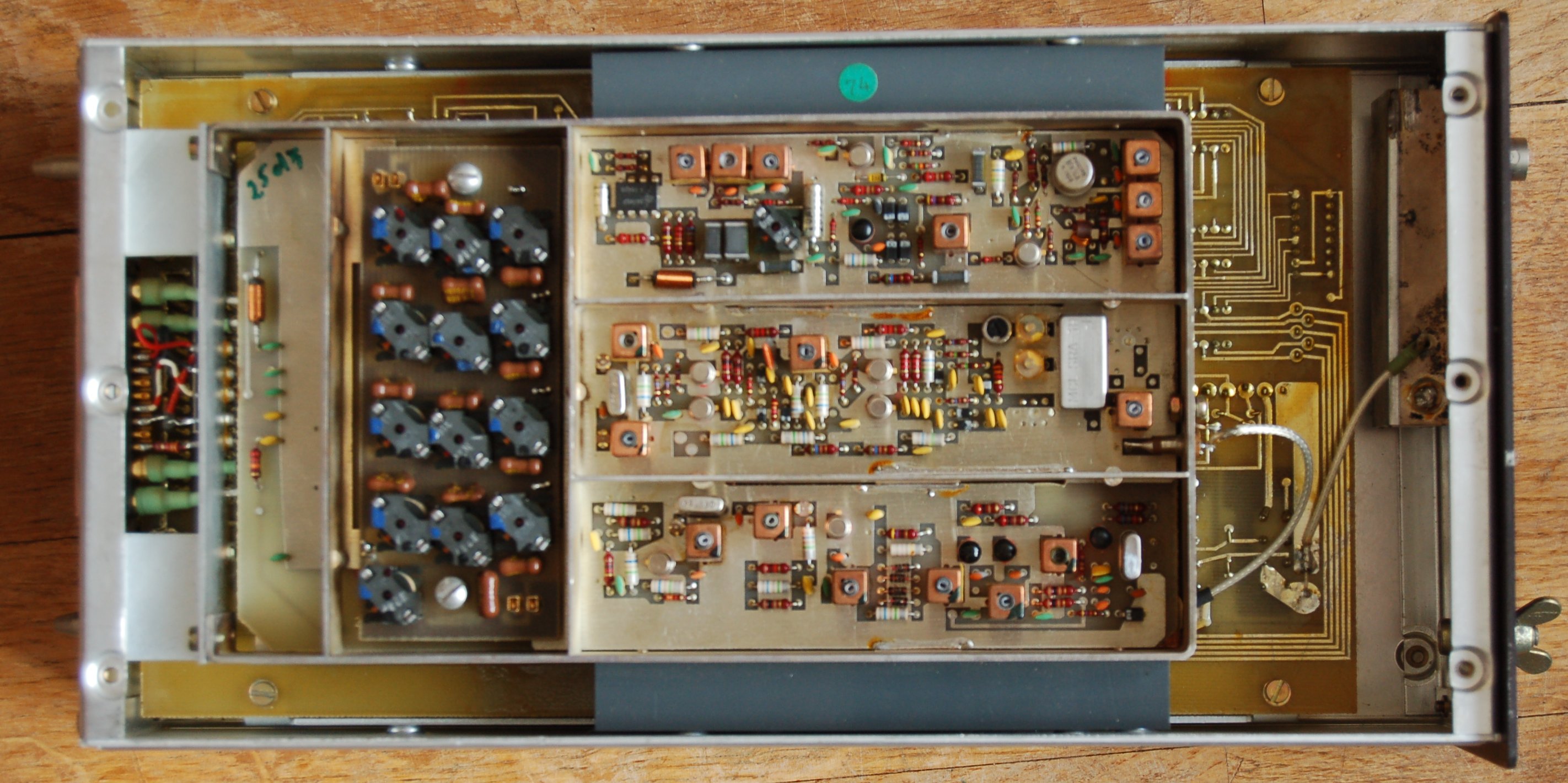

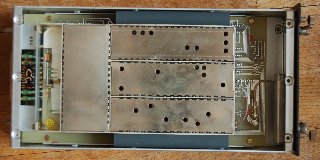

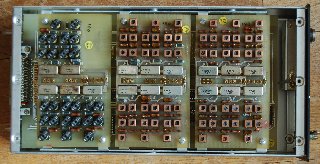

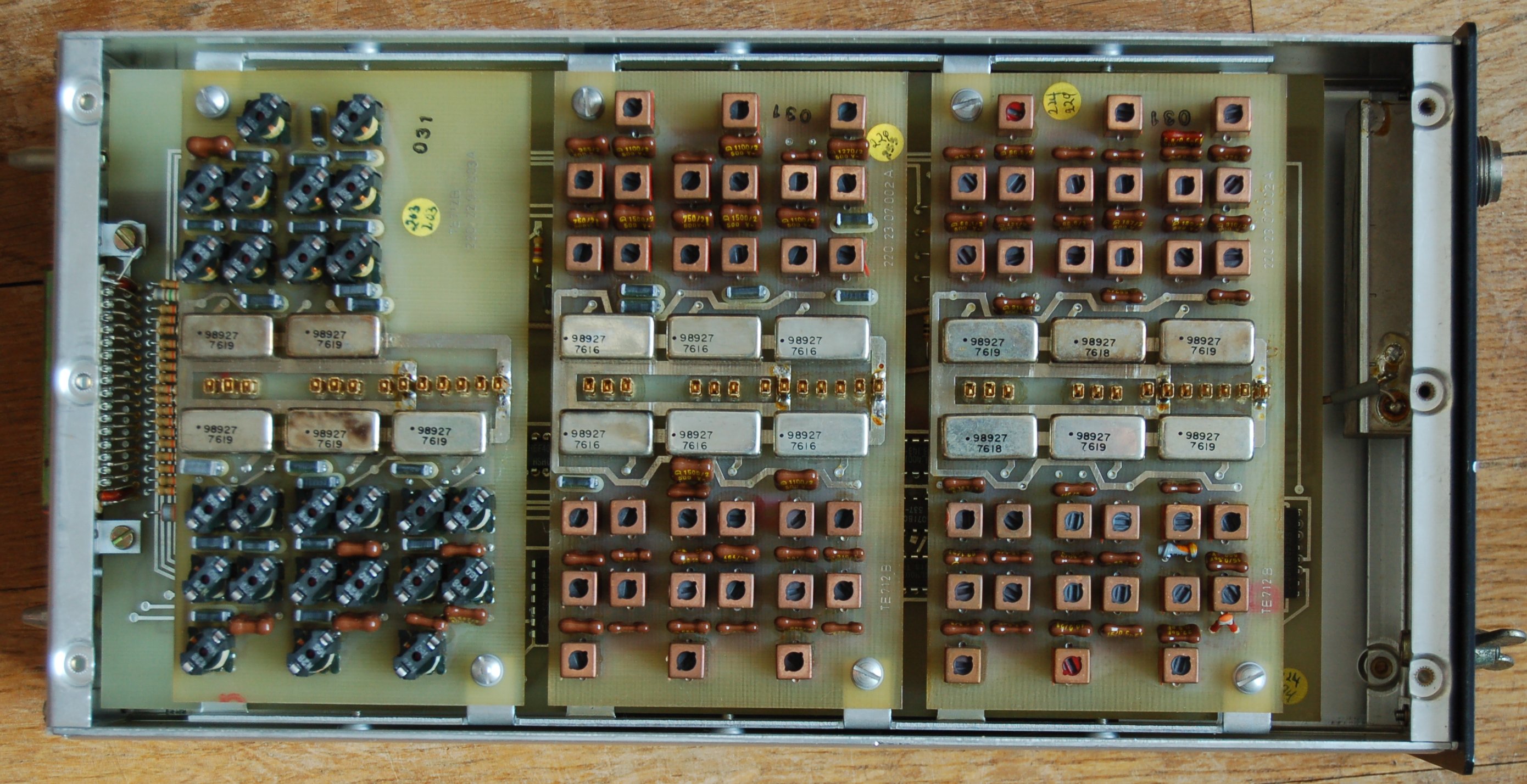

| HF Head Up | HF Head Down |
 |
 |

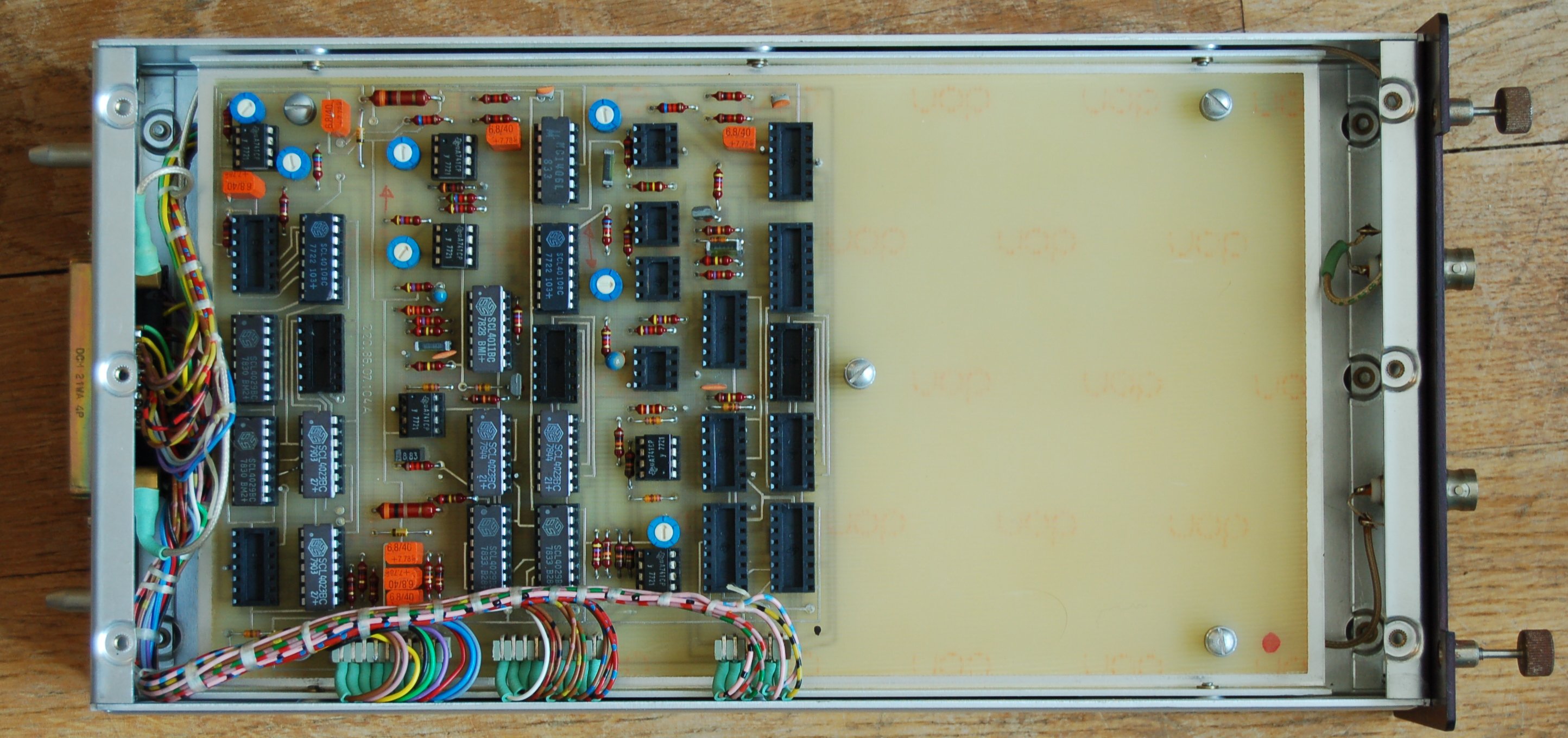

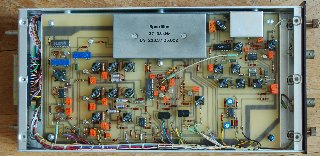

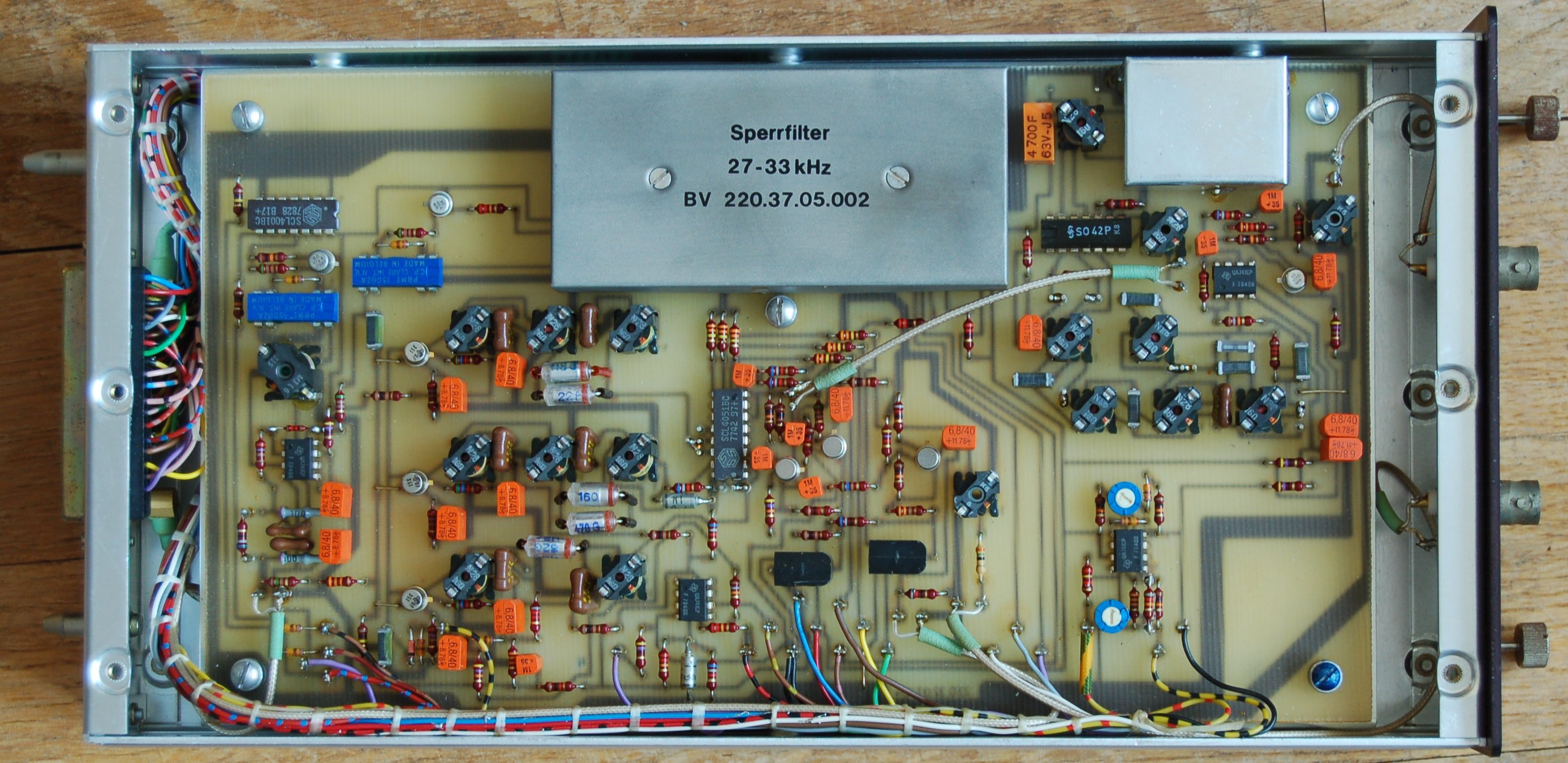

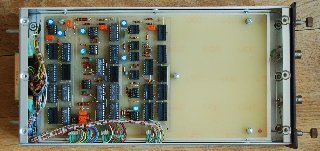

| ZF I Up | ZF I Down |
 |
 |

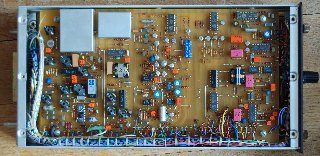

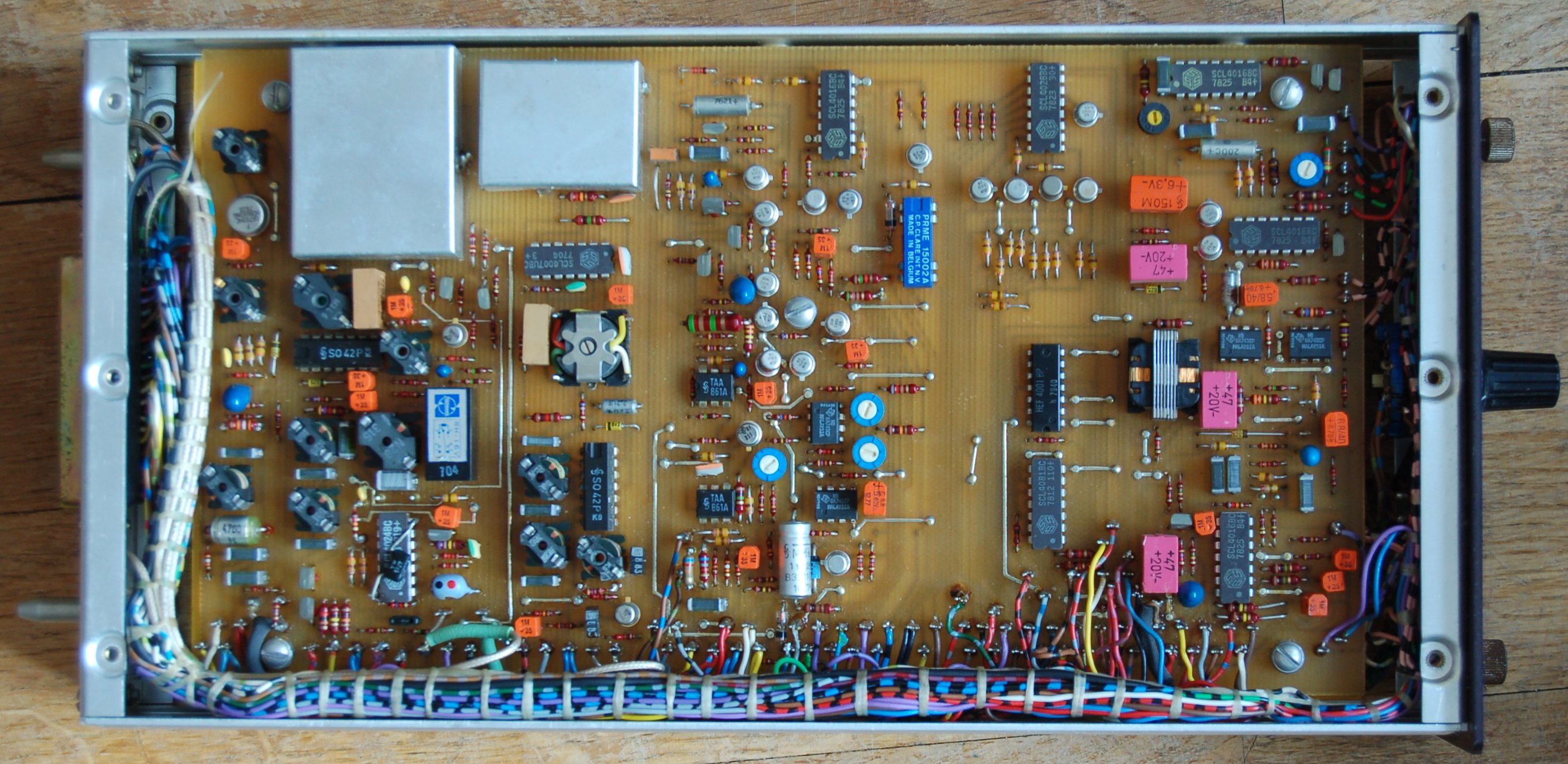

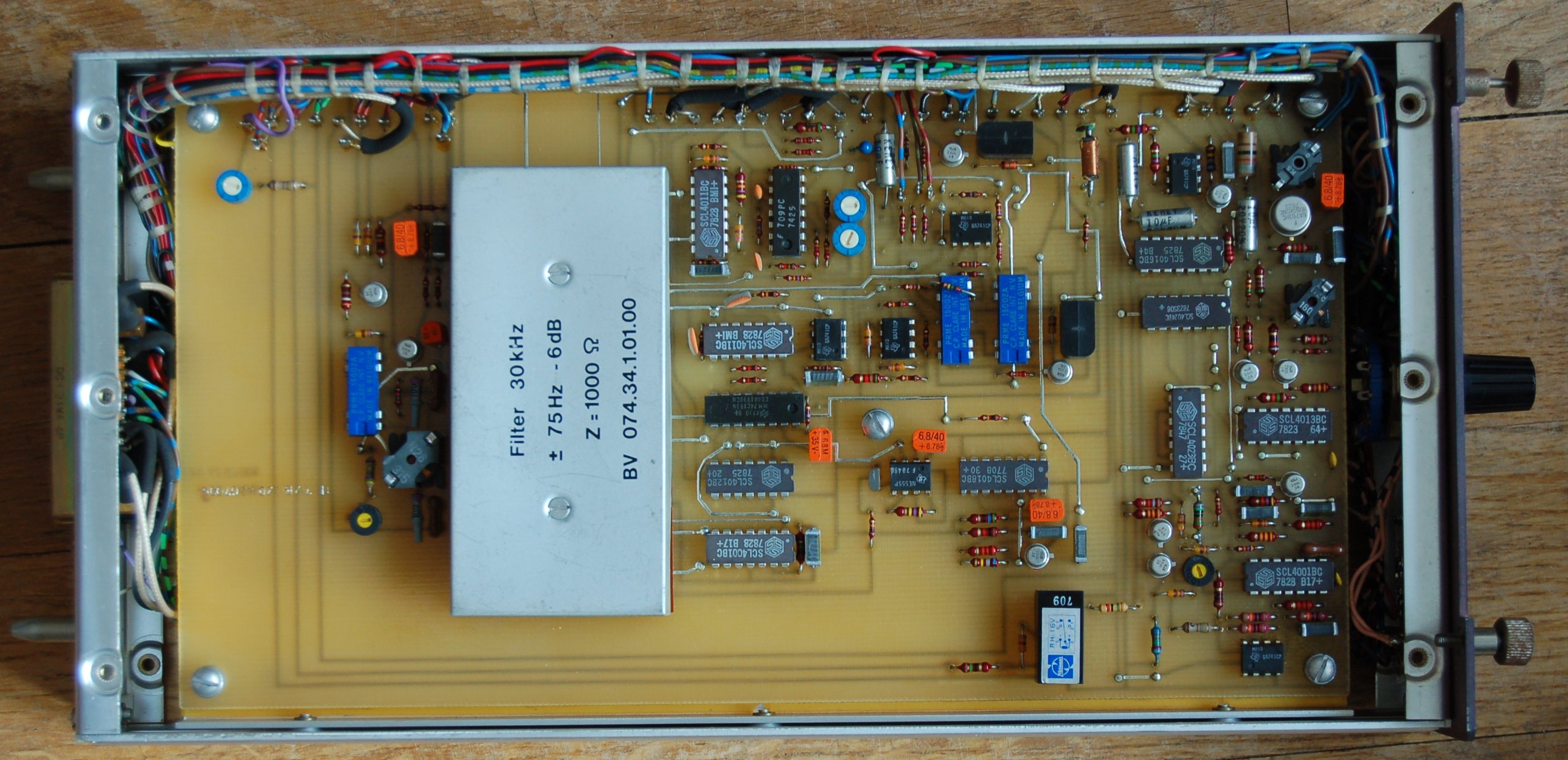

| ZF II Up | ZF II Down |
 |
 |

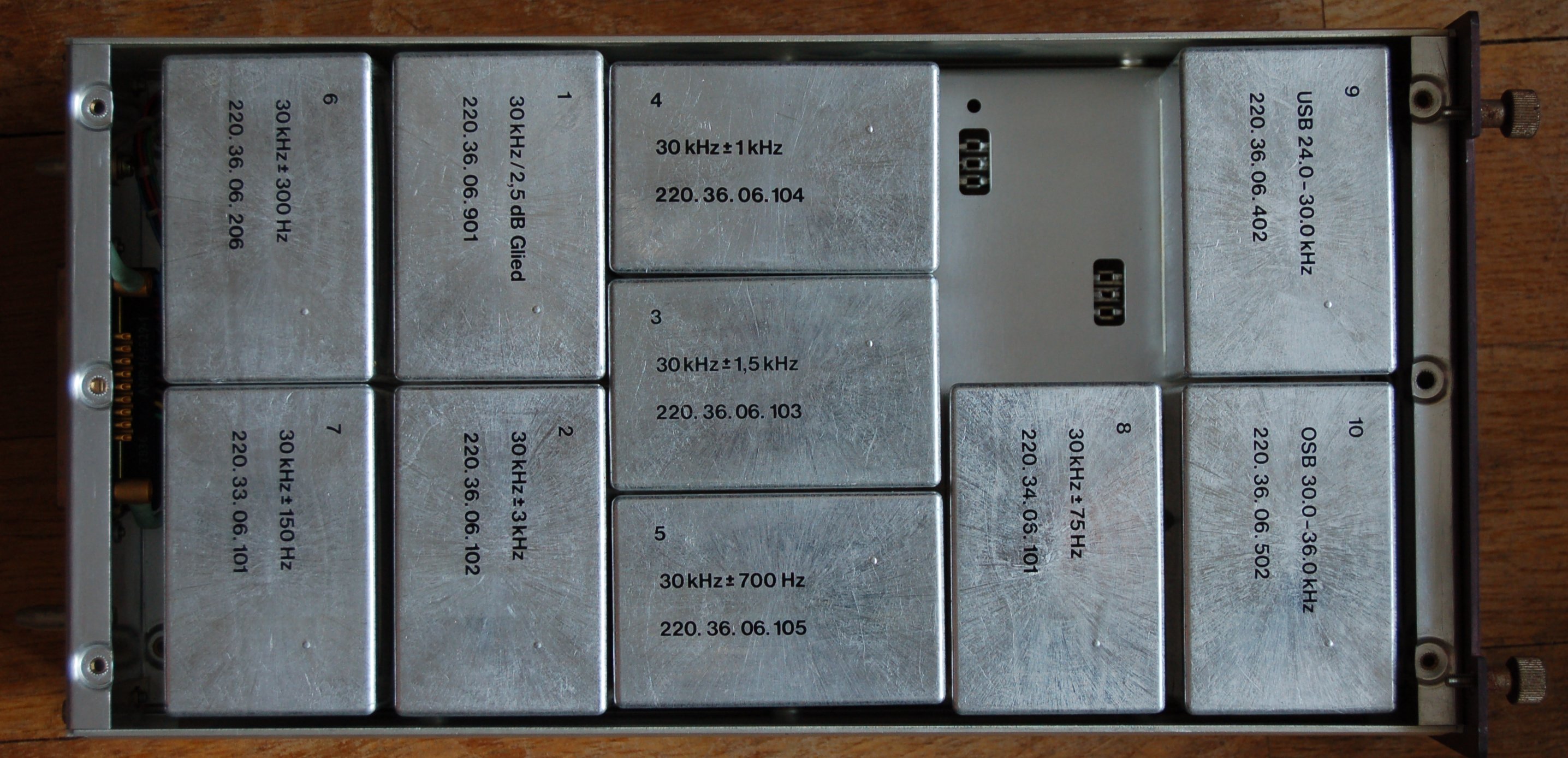

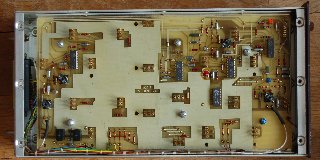

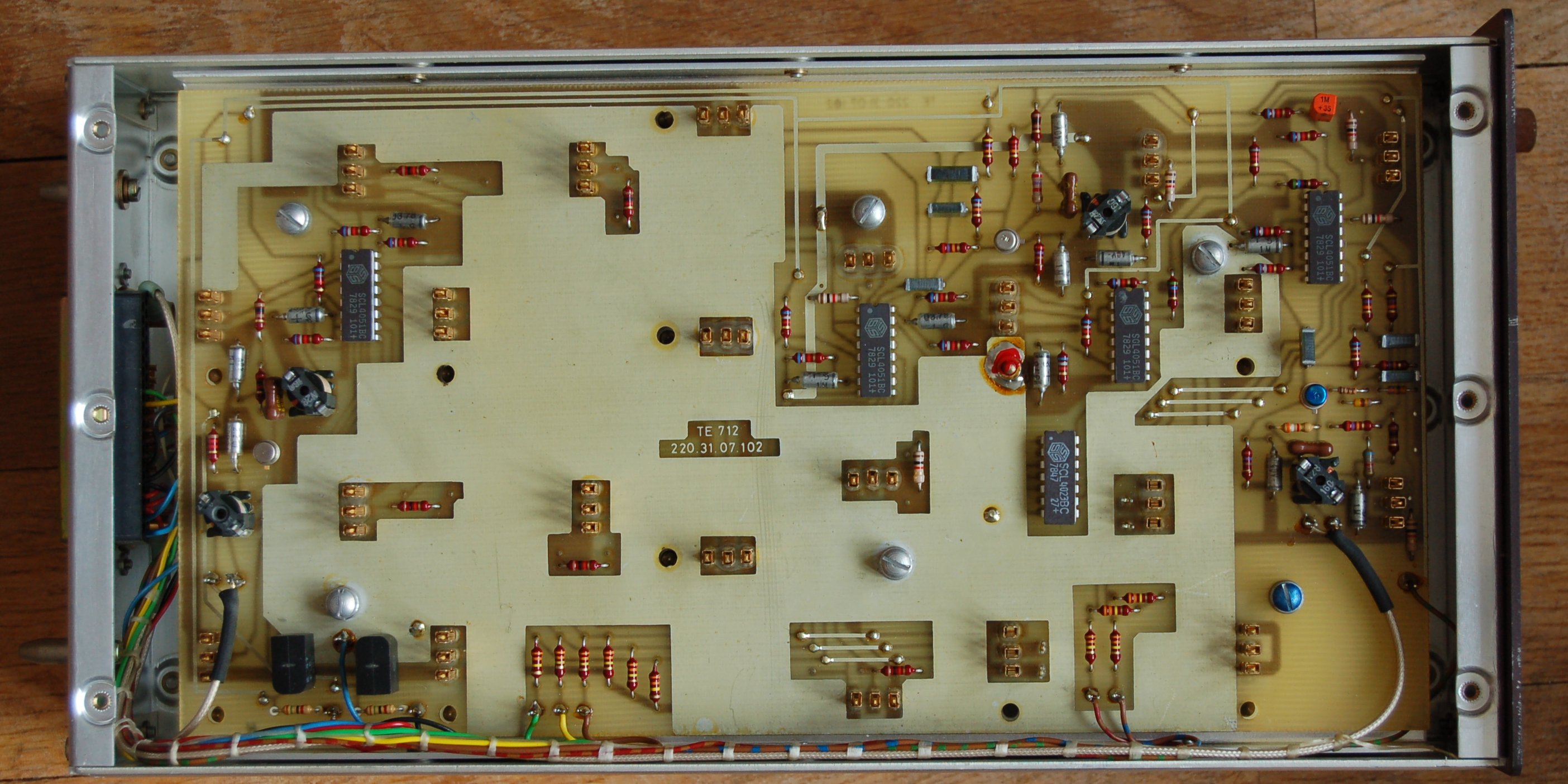

| Filters Up | Filters Down |
 |
 |
