SEEE-AM Multicoupler

Technical data

This is an HF multicoupler made in the 90's. It allows coupling of up to twelve HF receivers to a single antenna.

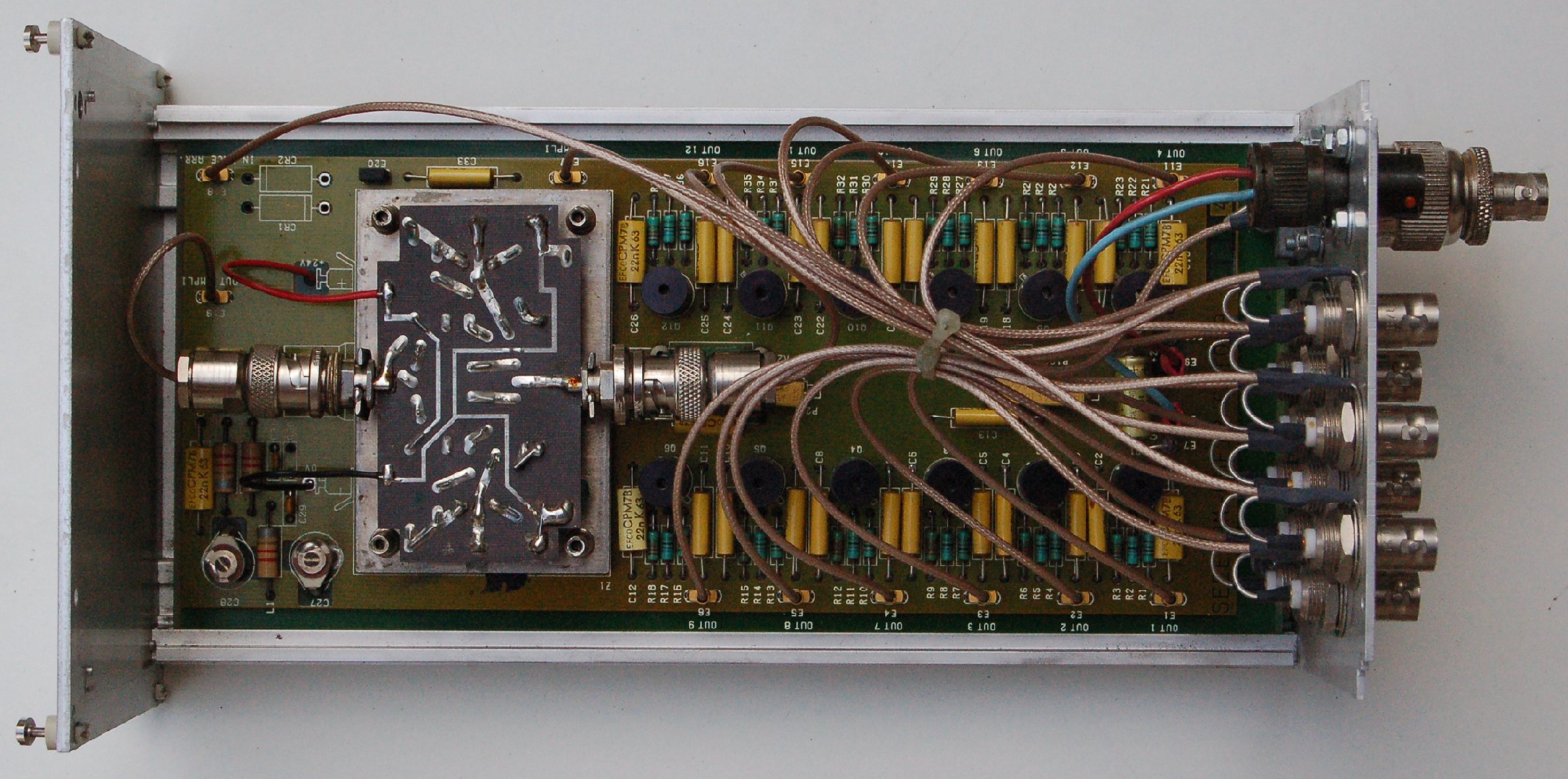

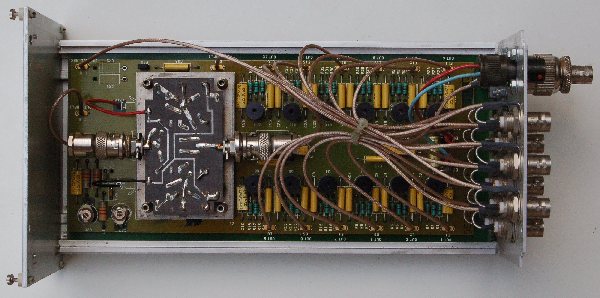

It uses two 2N3866 in the first amplifier and 2N2219 in the driver stages.
Everything is powered by a 24V power supply.

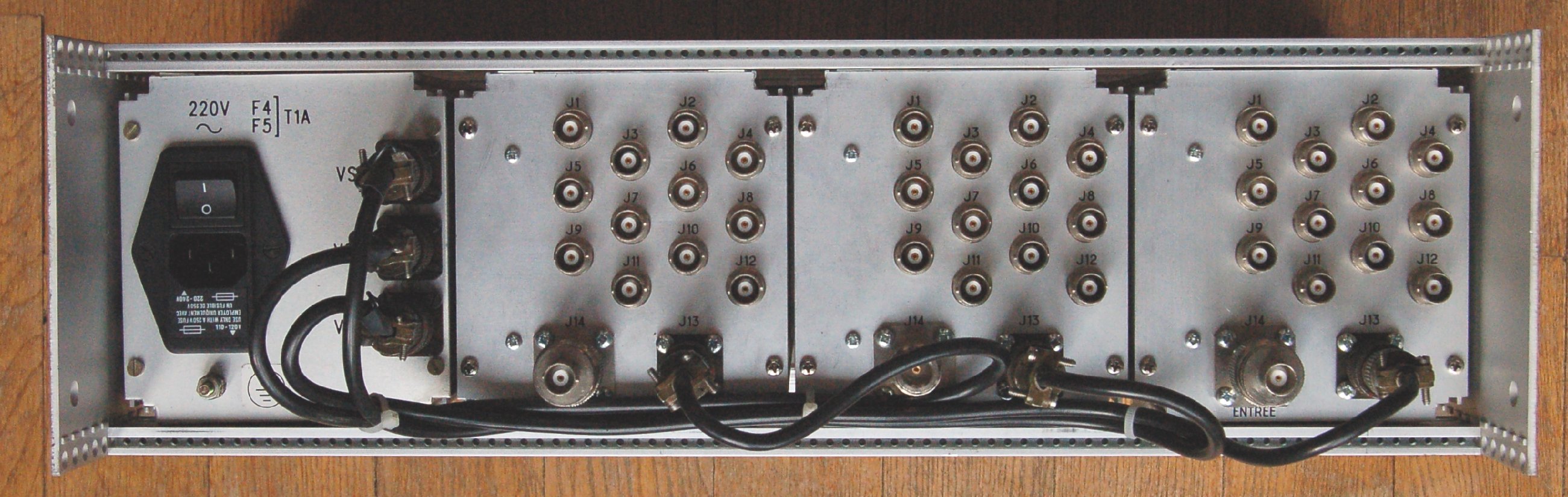

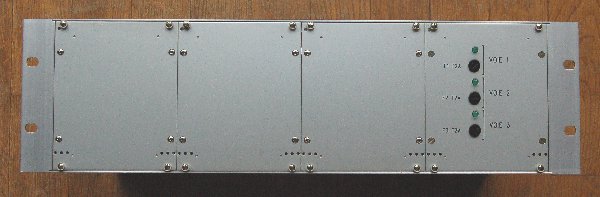

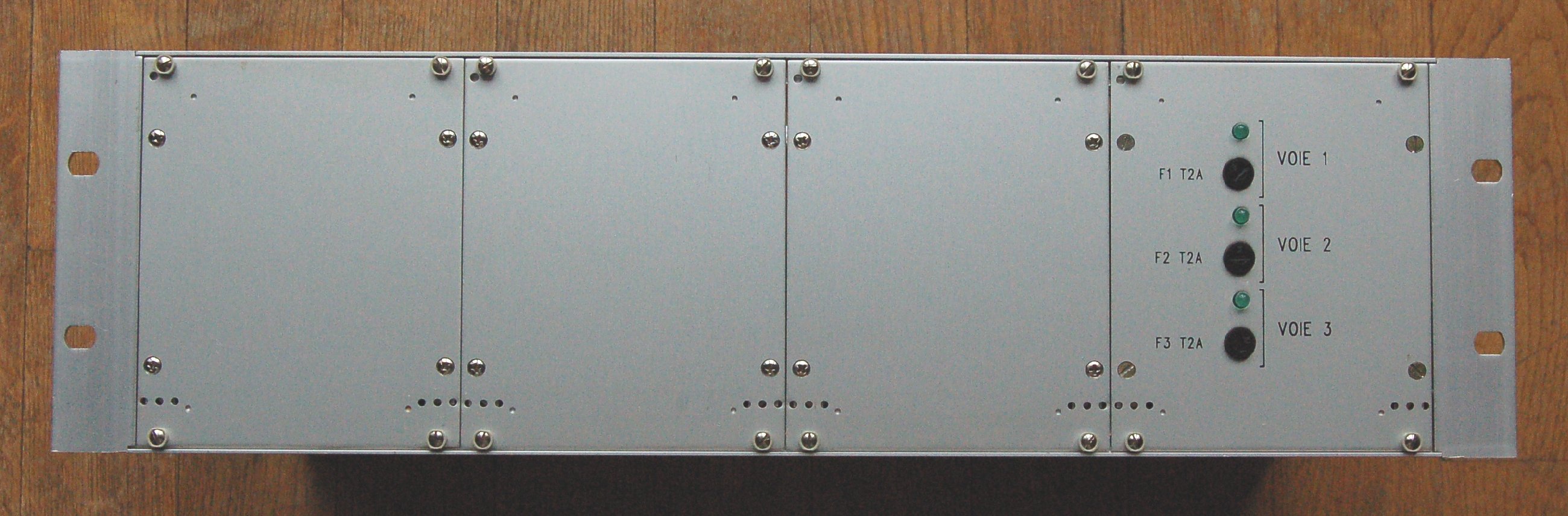

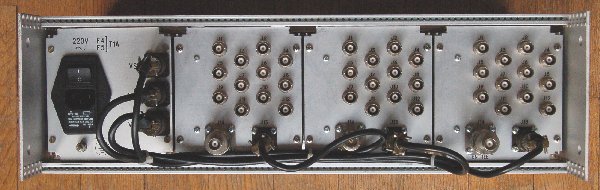

Multicouplers front view Multicouplers rear view

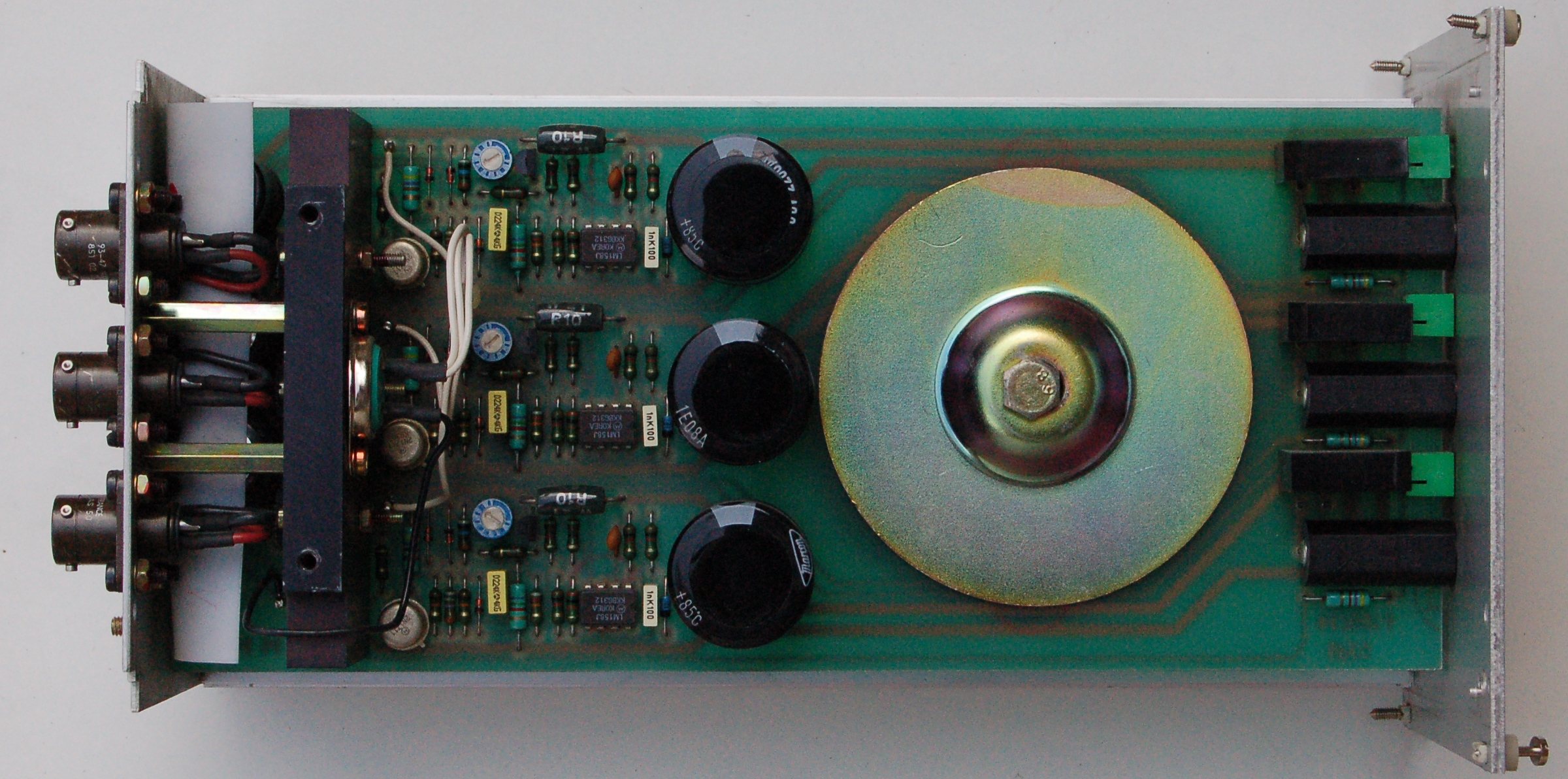

Power supply
