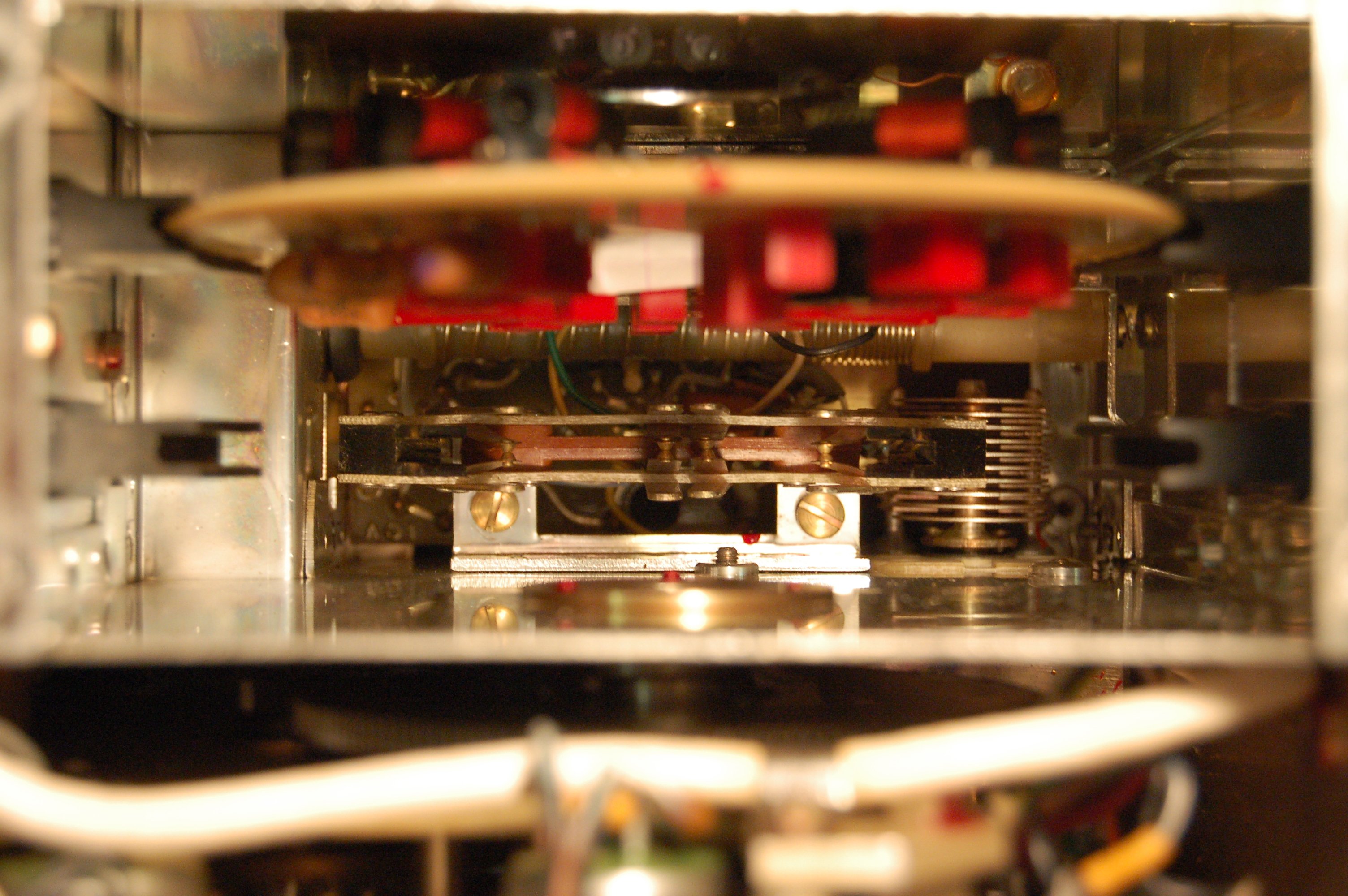

Small fingers are used to connect those discs to the receiver electronic:

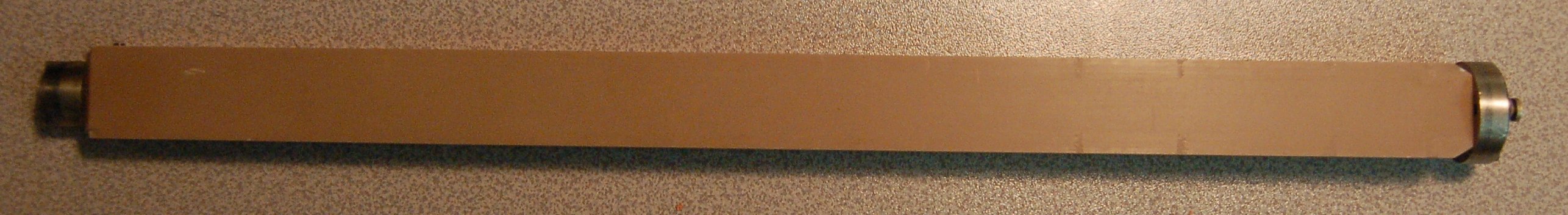

All the discs are tied together using a square axle made of plastic:

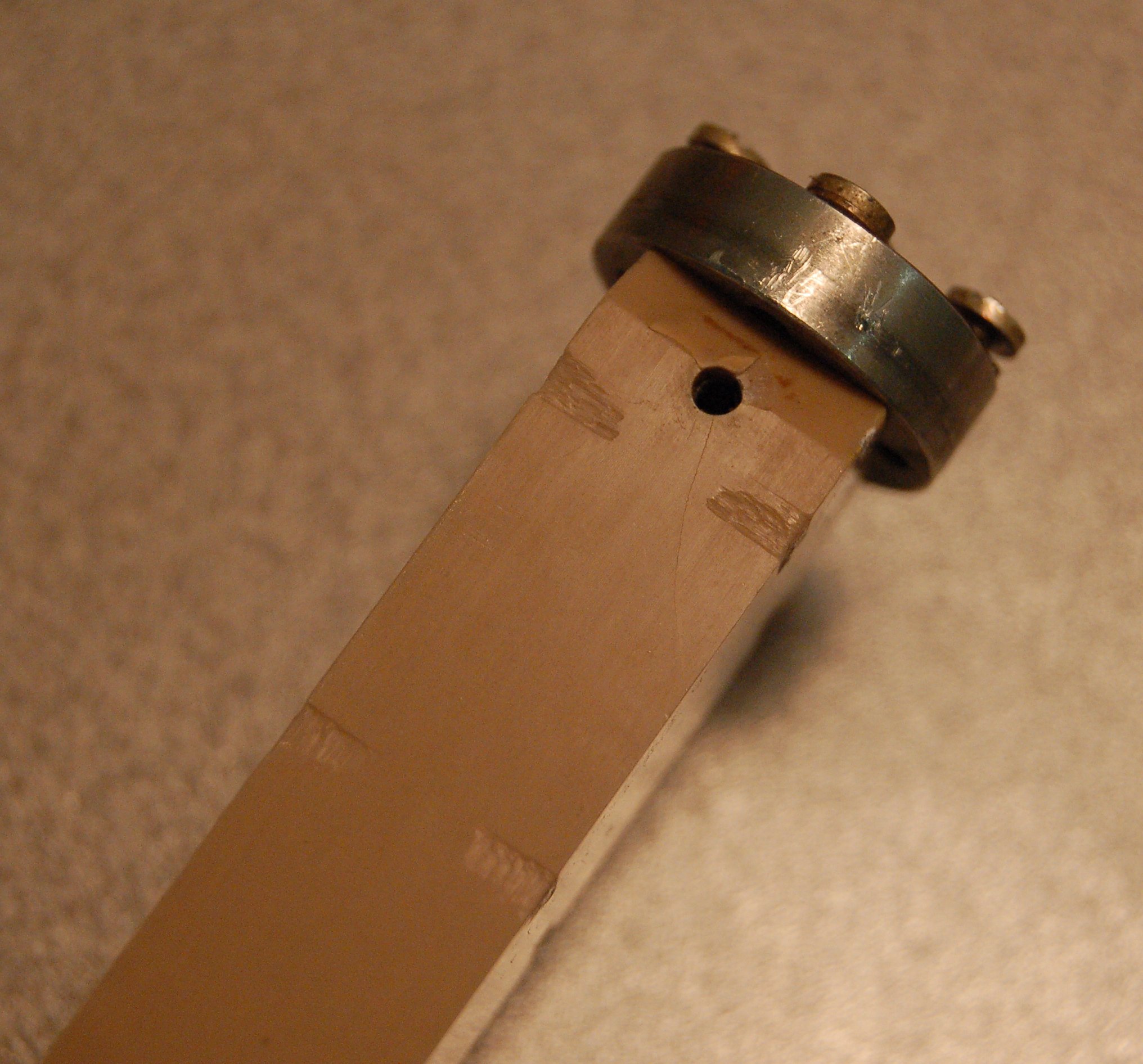

But with the time, this axle get used:
Two solutions can be used to solve that issue:
- Dismount the axle ends in order to swap them. This will work as the discs emplacement is not symetrical,
- Add a small piece of paper in order compensate for the thickness.

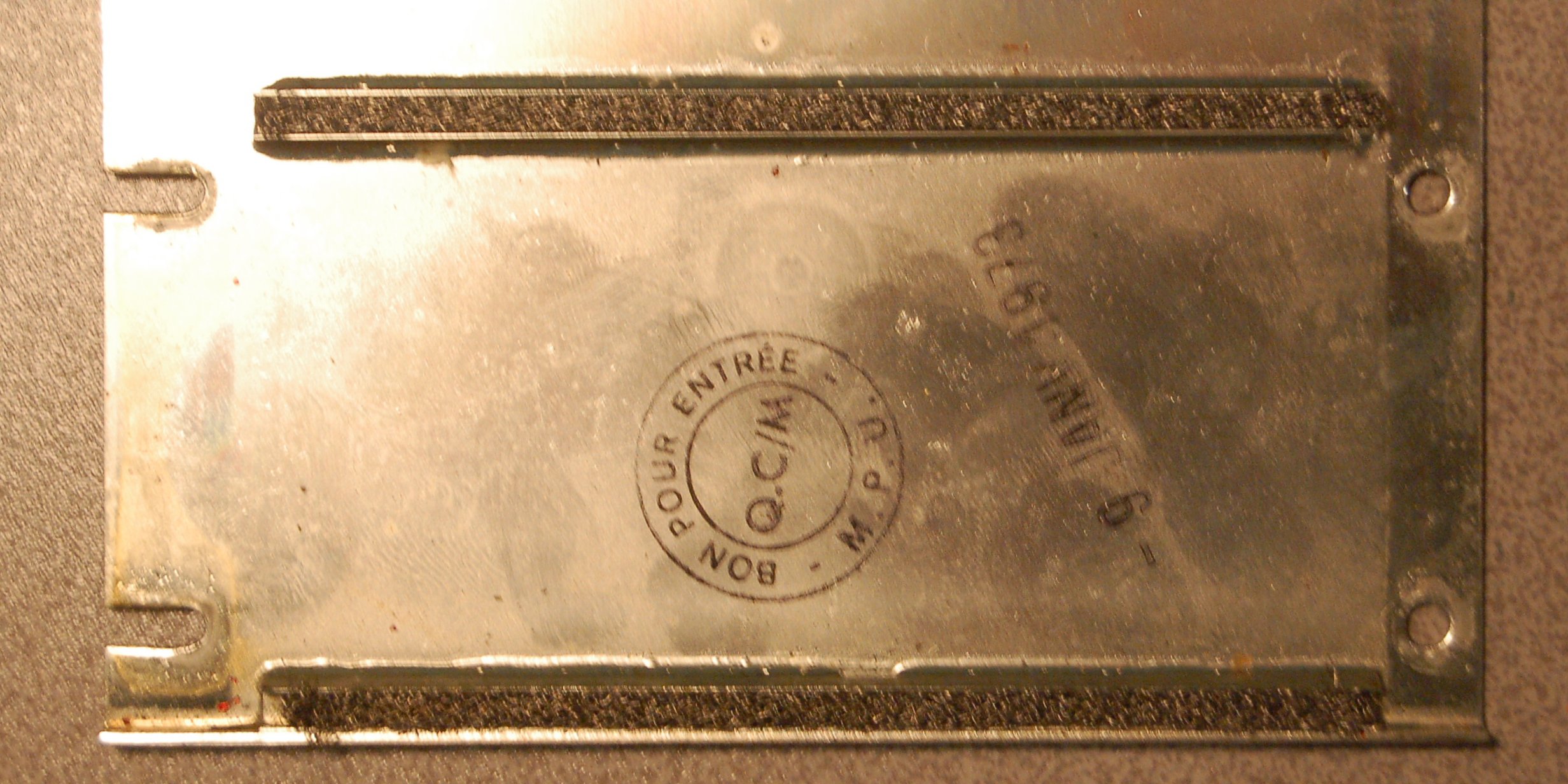

While trying to repair the wonderful receiver, I found its manufacturing date - January 1973 - on the quality service stamp:

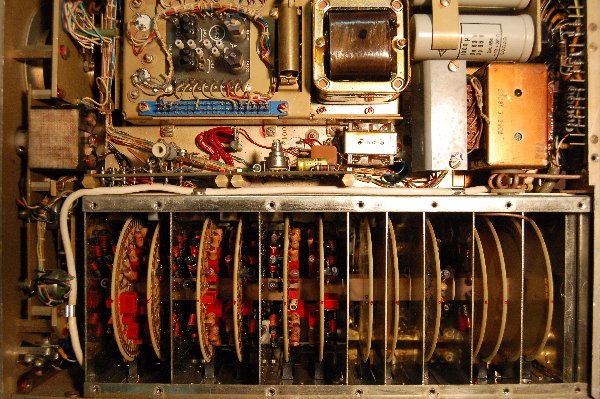

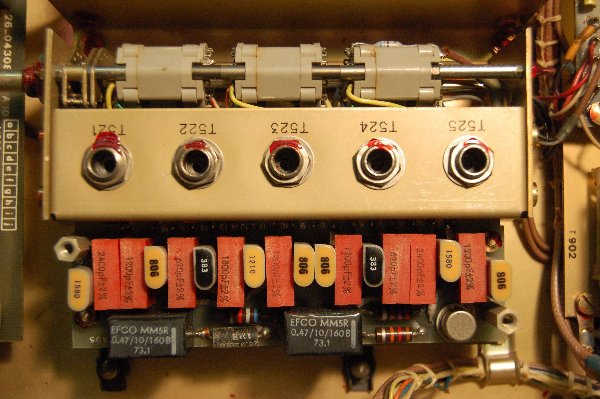

Here LC filters are used instead of mechanical or crystal models making this receiver a real pleasure to listen to:

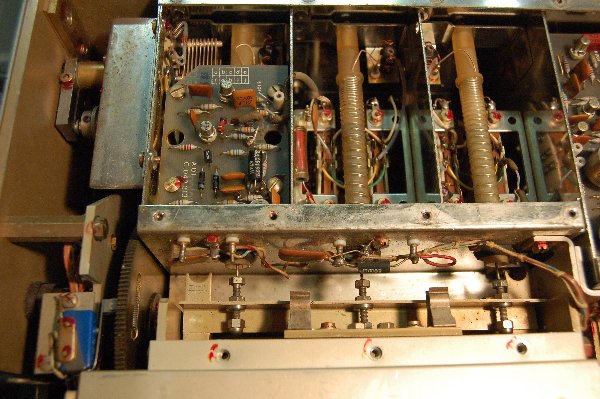

And the front head stage is coil fine tuned:

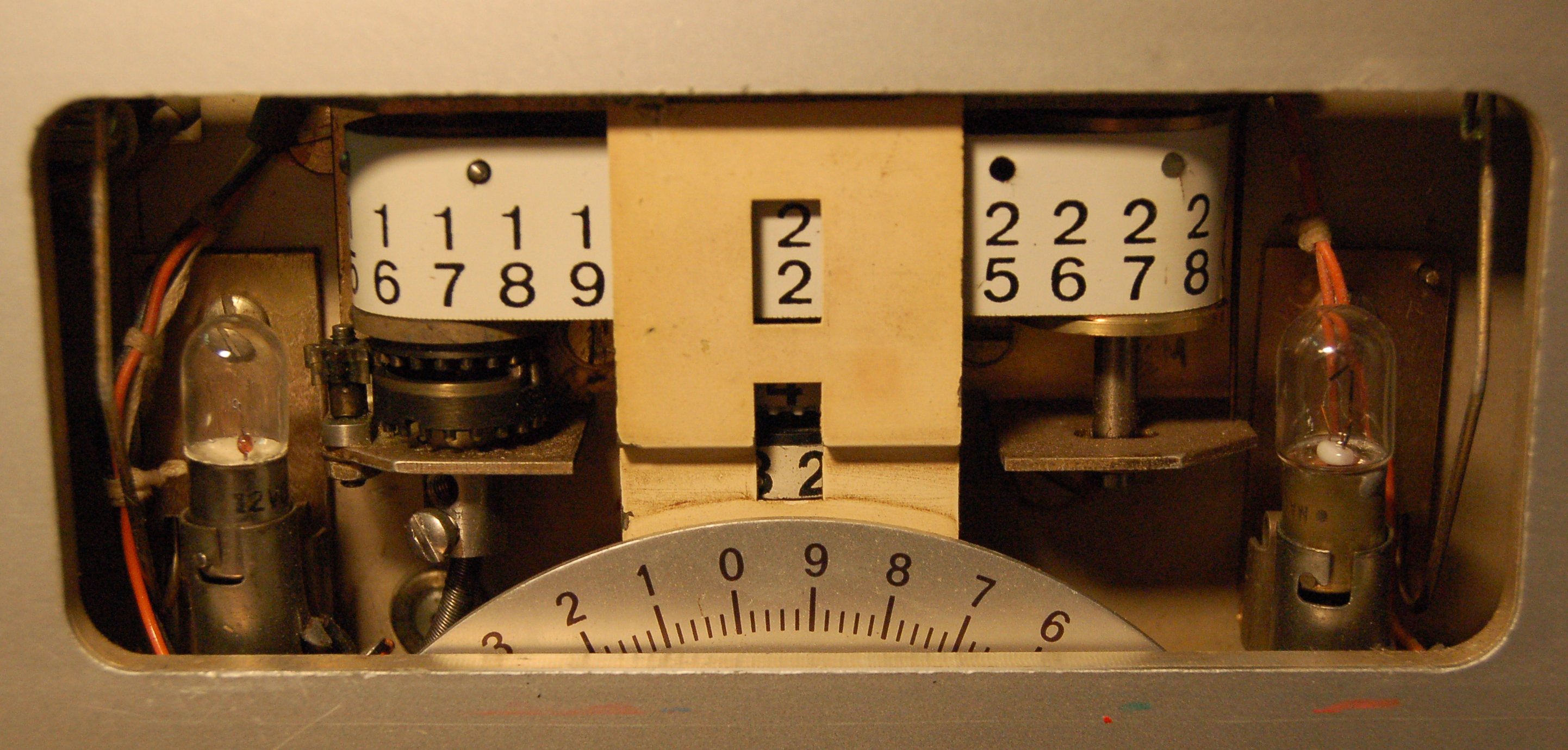

Fine tuning is motorized on the RRBM5 version which keeps the RS560 dial mechanism:

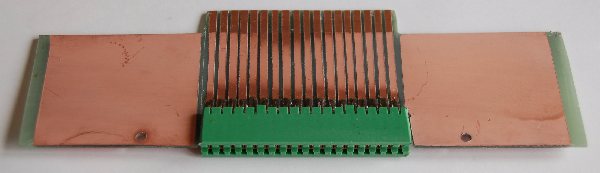

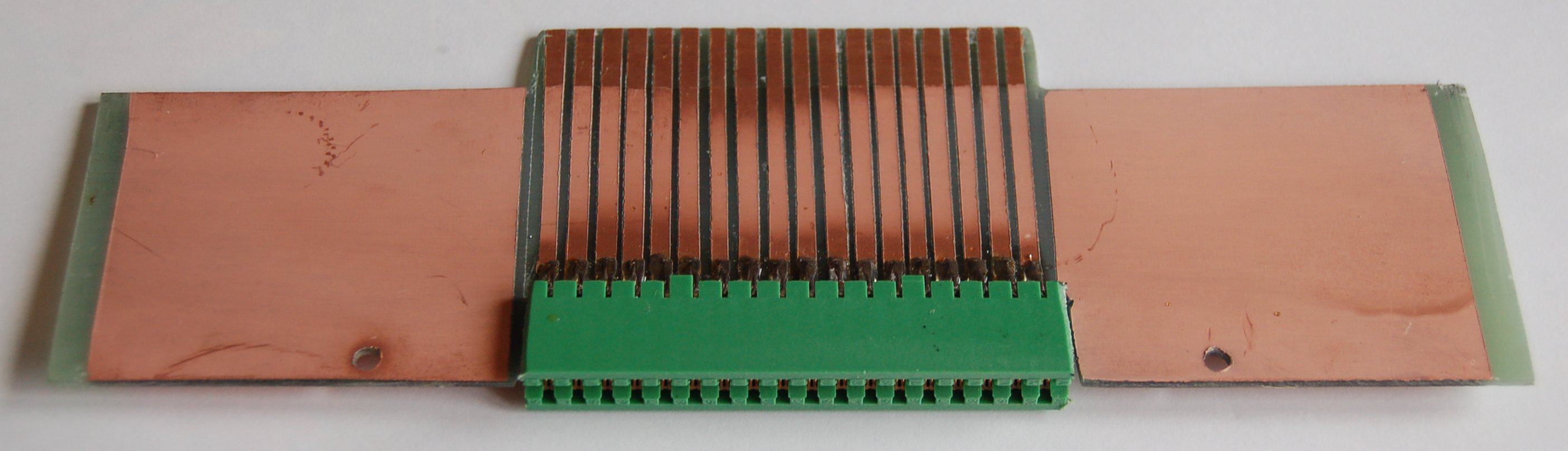

A extender board as been made in order to repair the synthetizer:
