Technical data
The RA1792 is the RACAL reference for an HF solid-state receiver.
Here are its technical specifications:
- Receiving mode:
AM,USB,LSB,CW,FM (ISB optional)
- Sensivity: [for (S+B)/B = 10dB]
<1.0uV BLU,
<3.0uV AM.
- Frequency coverage:
Continuous 1Hz tunable from
150Khz to 30Mhz
- Double conversion design:
1st IF: 40.455MHz,
2nd IF: 455Khz.
- Filters:
2.7Khz USB,LSB
300, 1000, 3200 & 6000Hz AM, CW.
- BFO:
Tunable from -7.9KHz to +7.9KHz.
_ Memory:
100 channels
- Remote control:
IEEE488.
Pictures

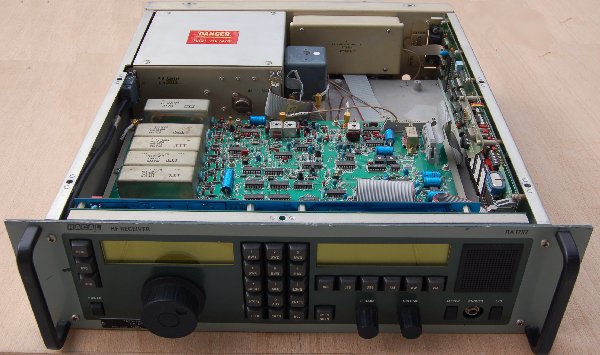

| Front view |
 |

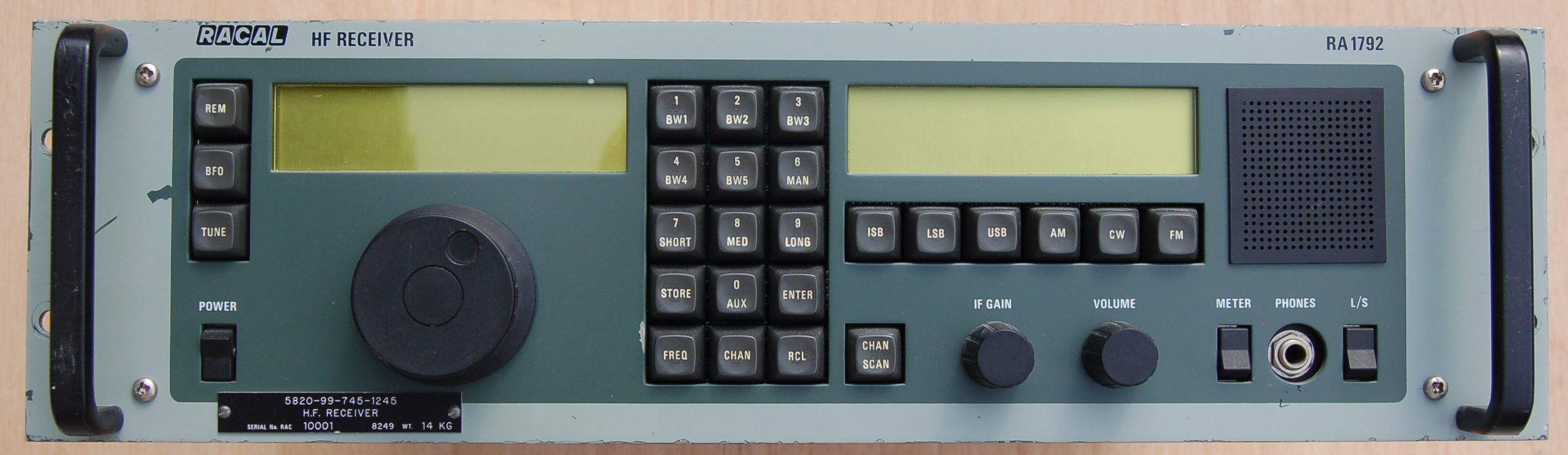

| Front Face |
 |

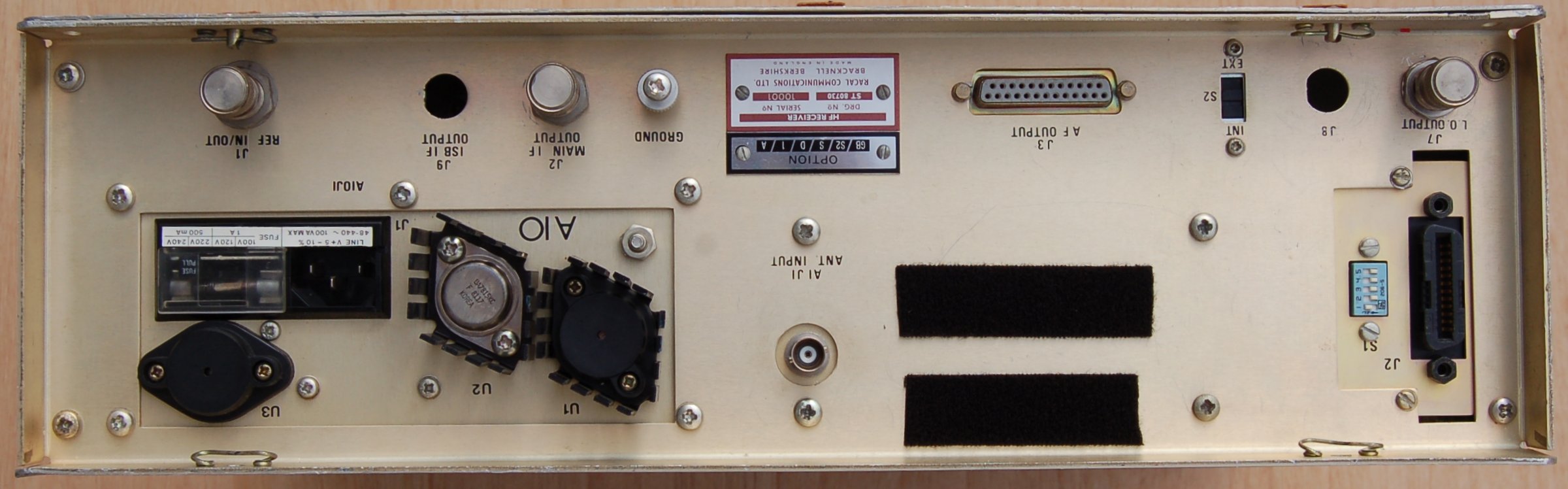

| Rear view |
 |

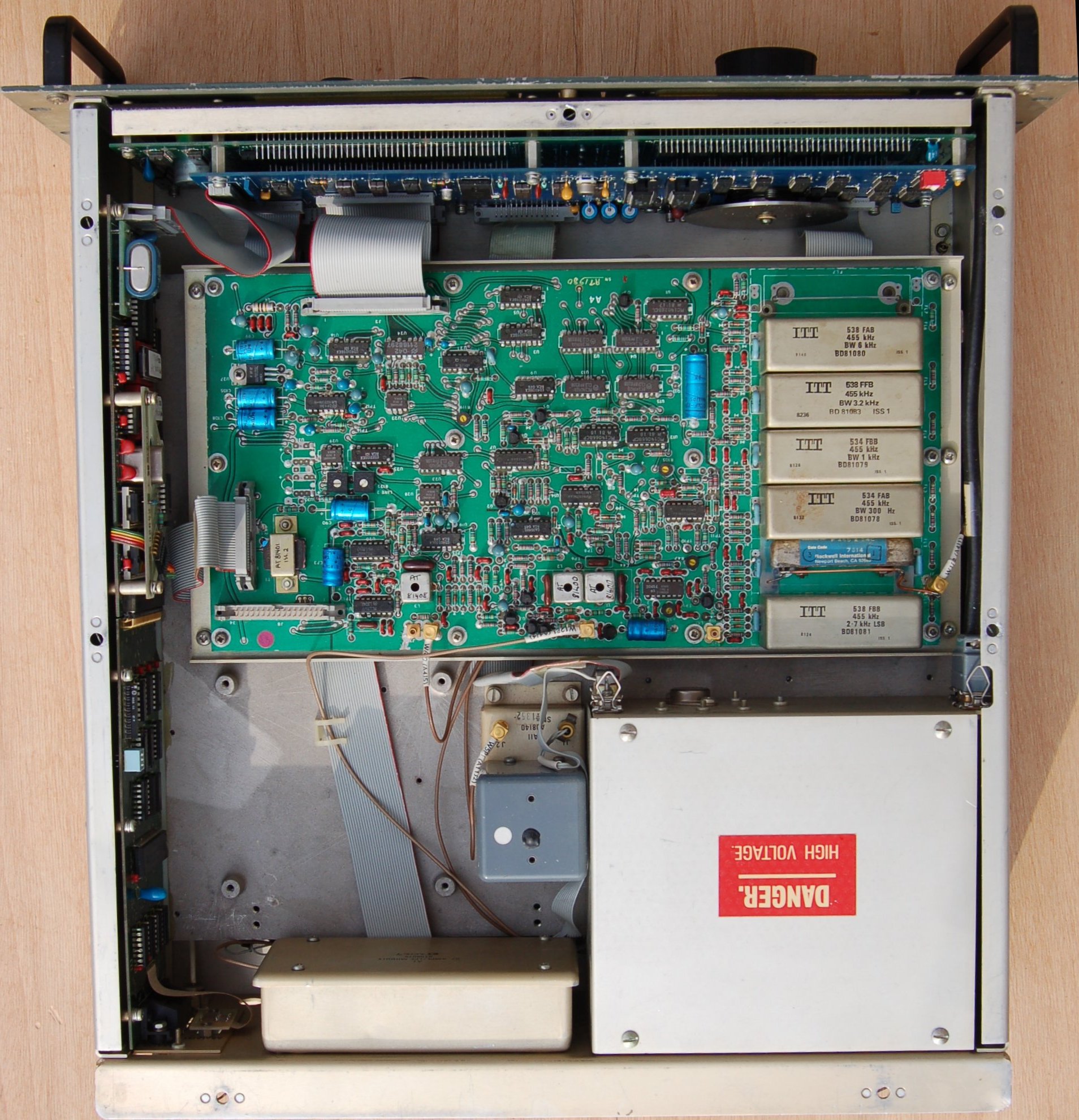

| Upper view |
 |

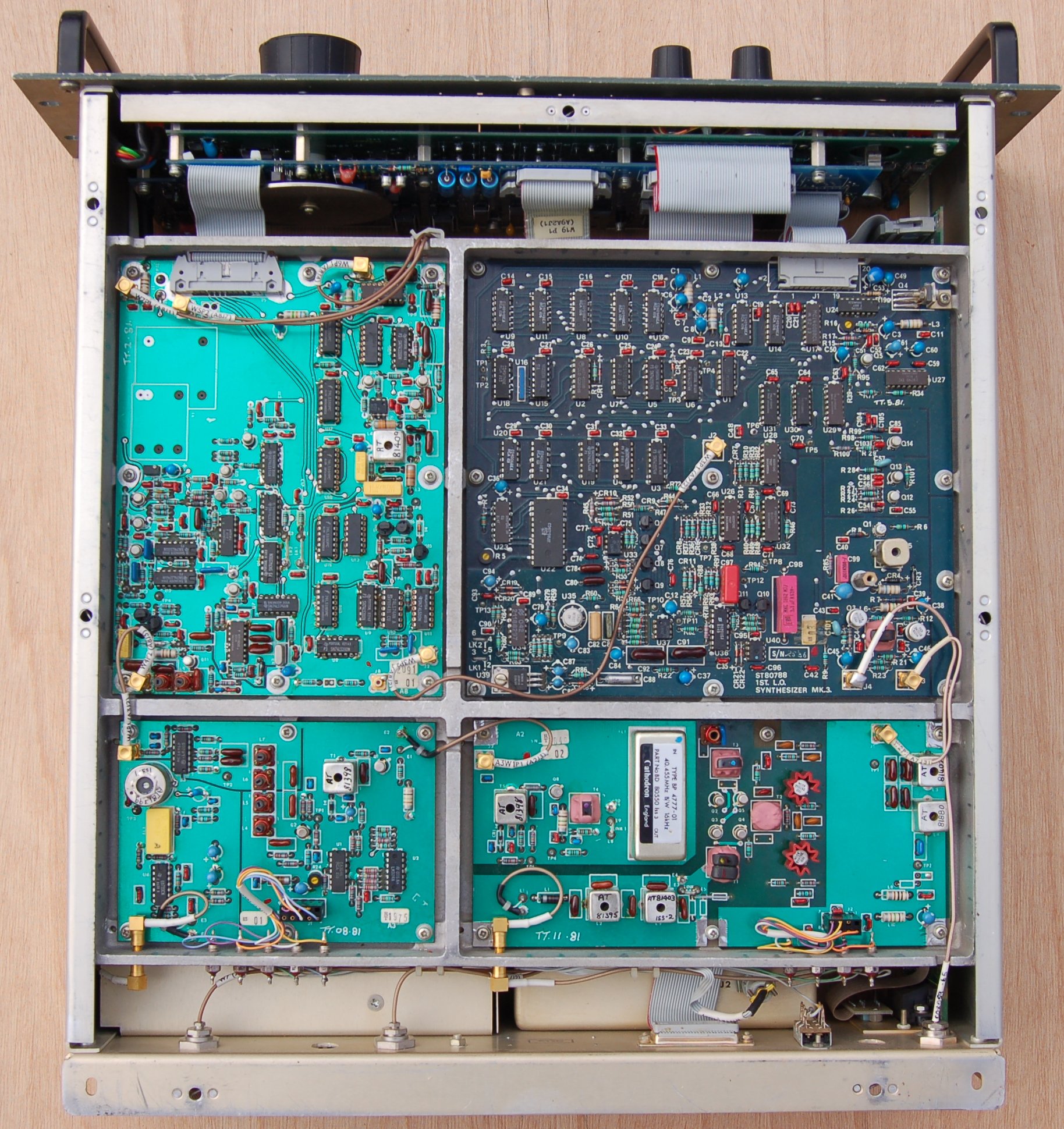

| Lower view |
 |

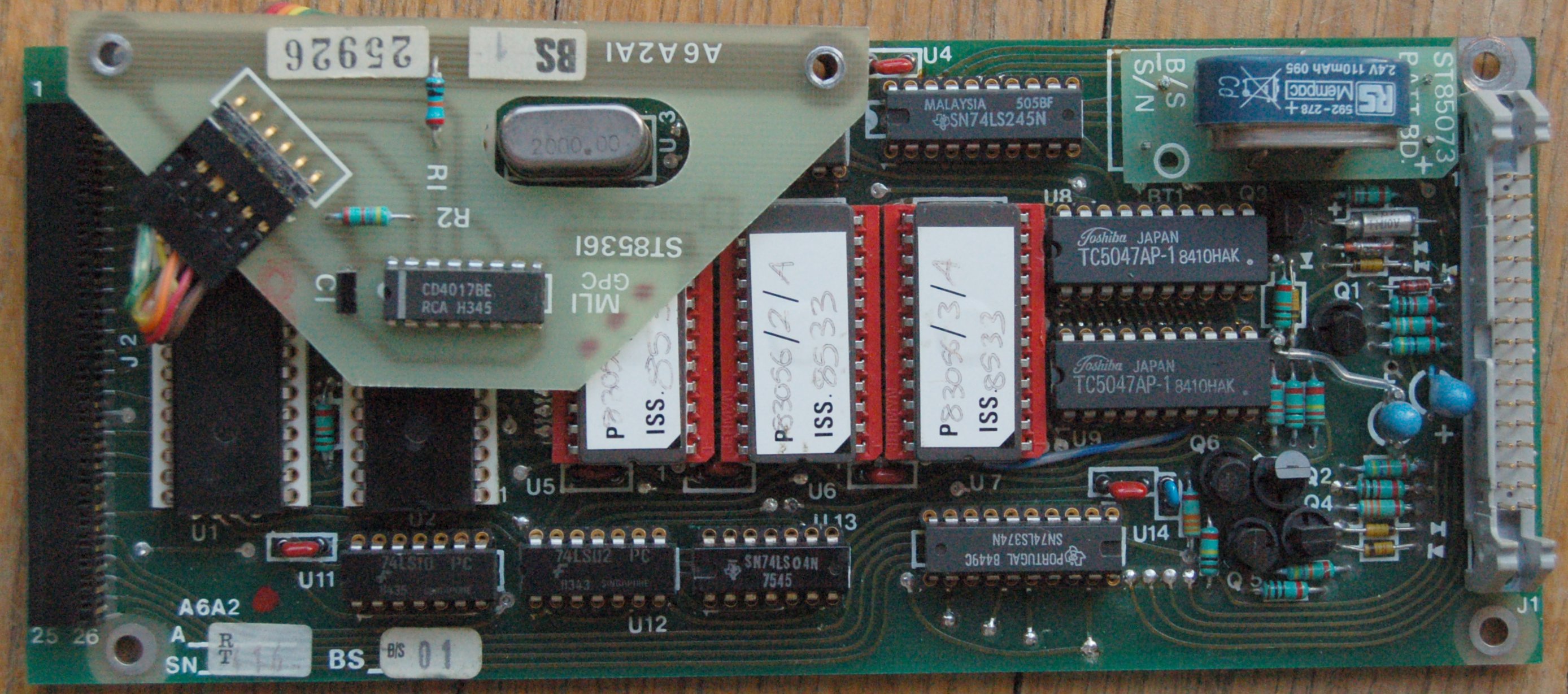

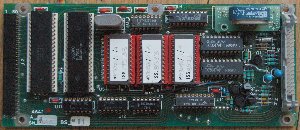

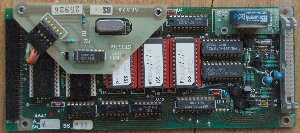

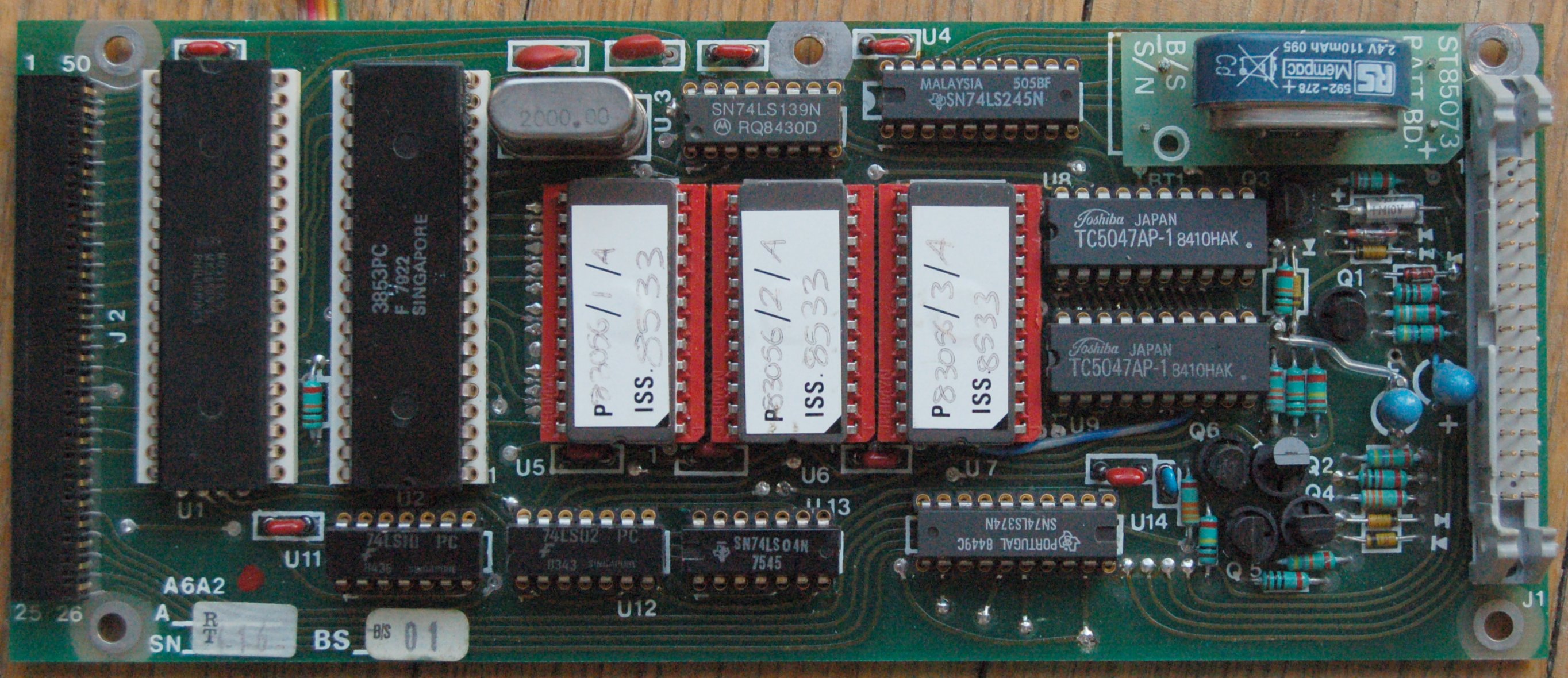

| CPU Card | CPU Card and its mod. |
 |
 |
