Rohde & Schwarz NV14T

Technical data

The NV14T is a 1.6Mhz to 30Mhz HF multicoupler made in the 80's. It allows coupling of up to ten HF receivers to a single antenna.

Everything is powered by an external 24V power supply.

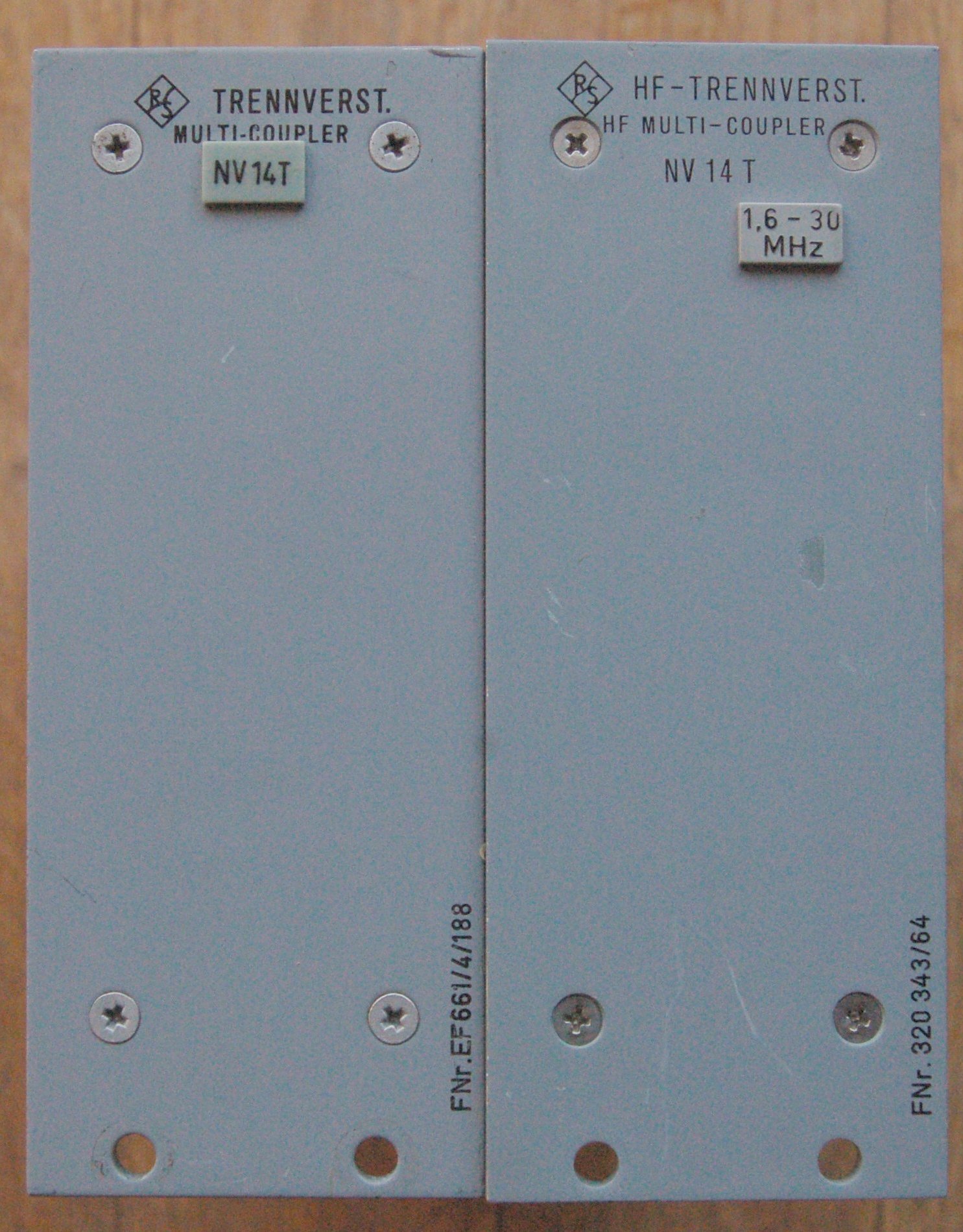

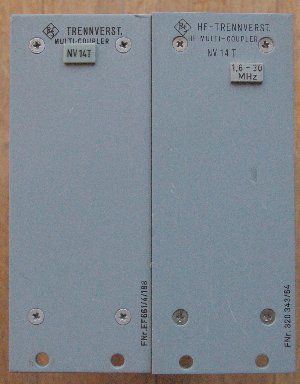

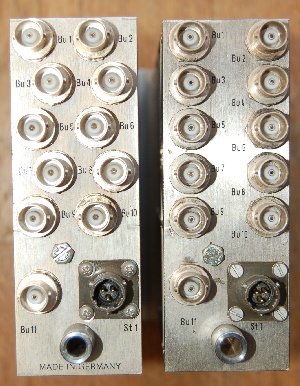

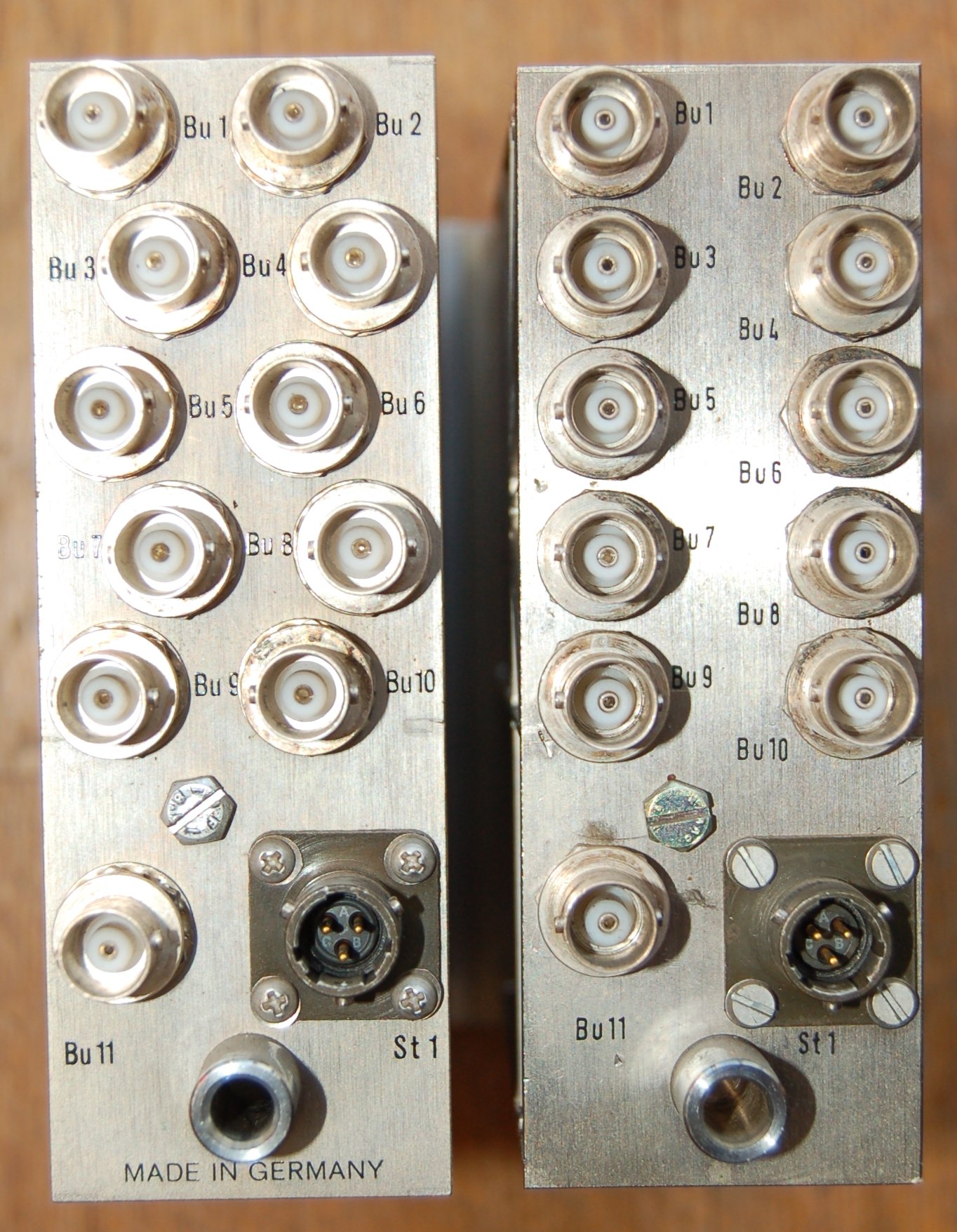

Multicouplers front view Multicouplers rear view

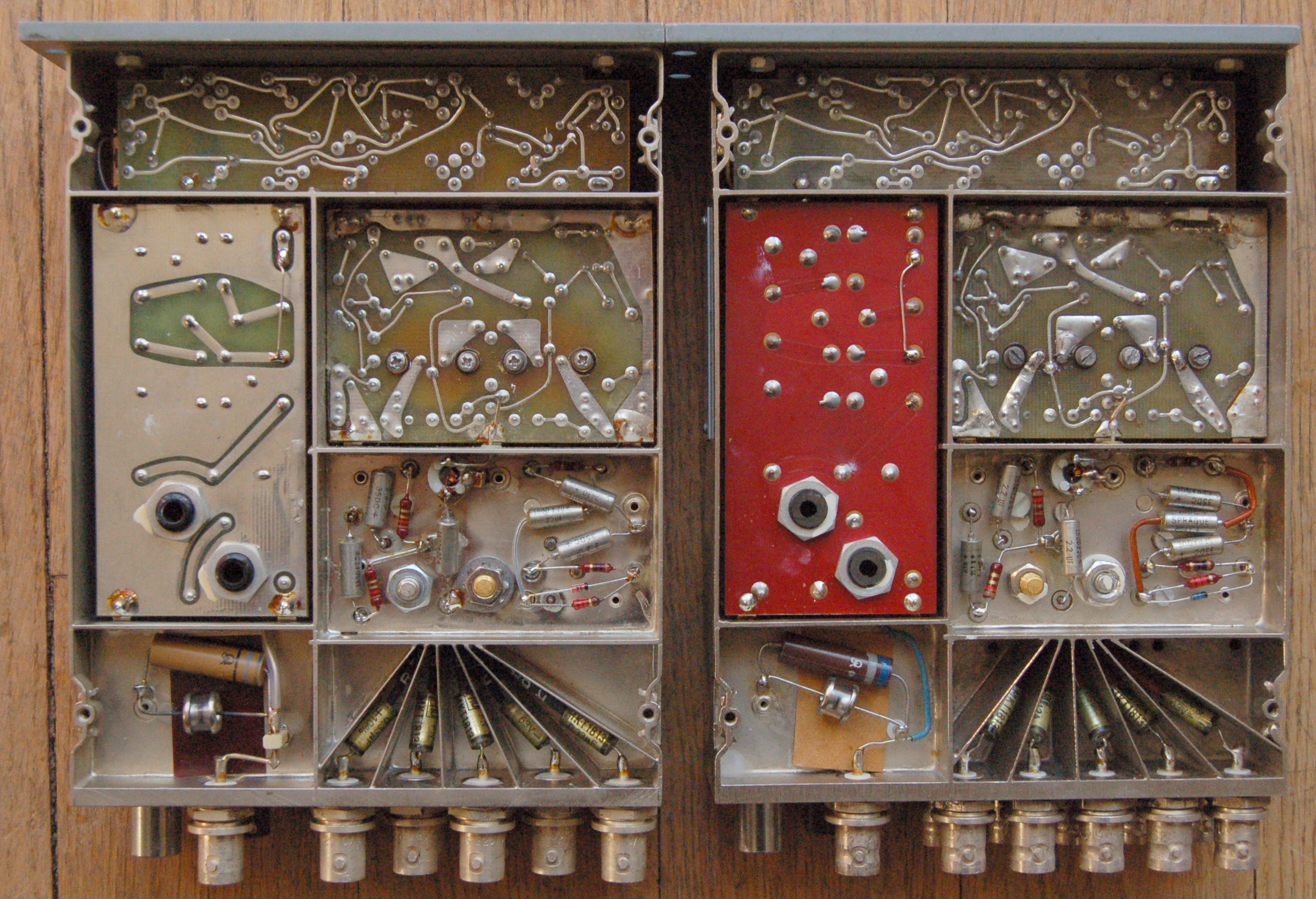

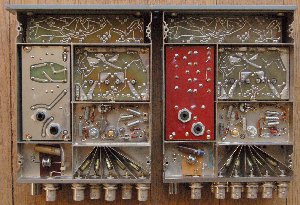

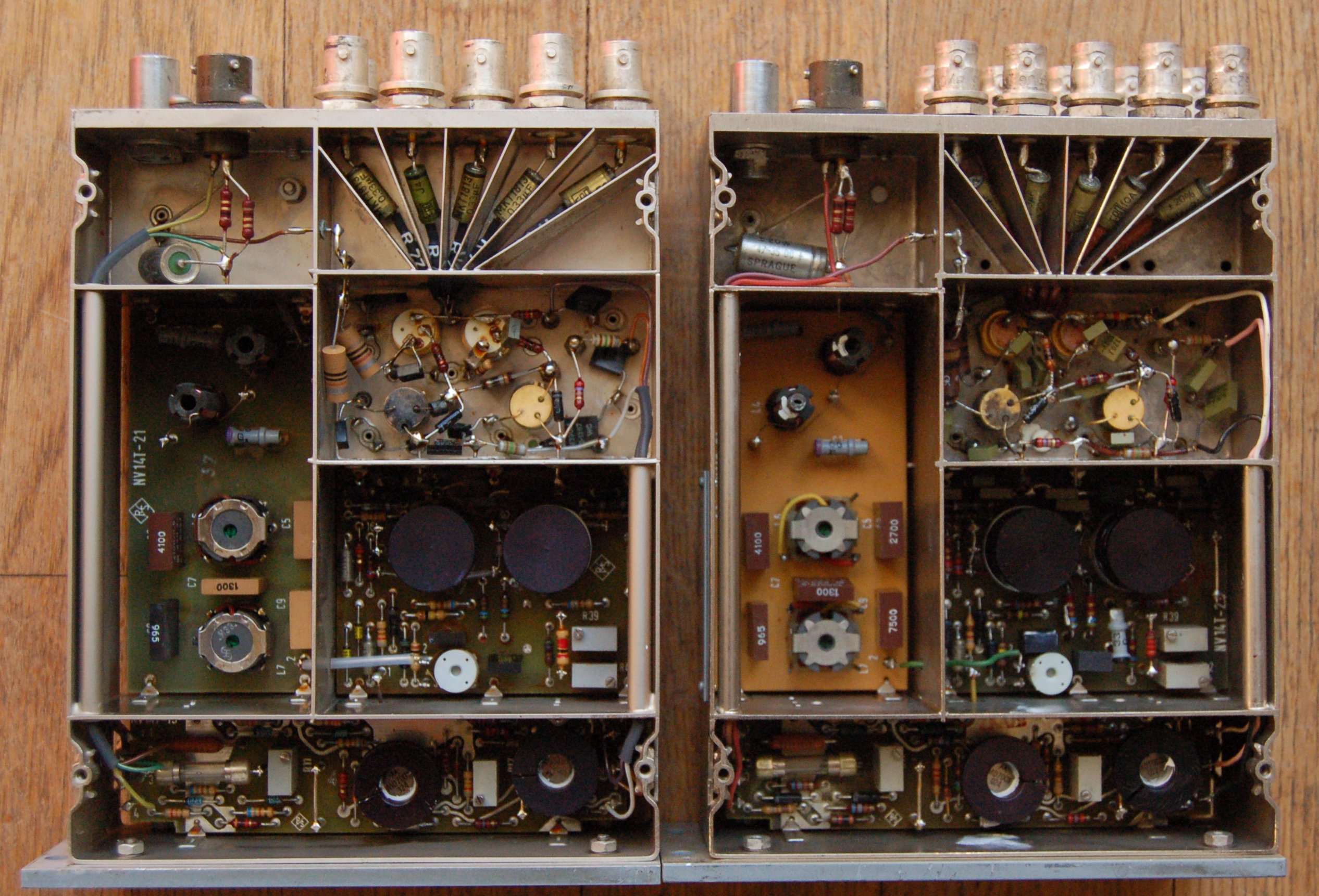

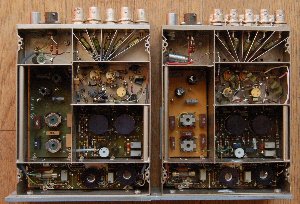

Multicouplers side view Multicouplers side view

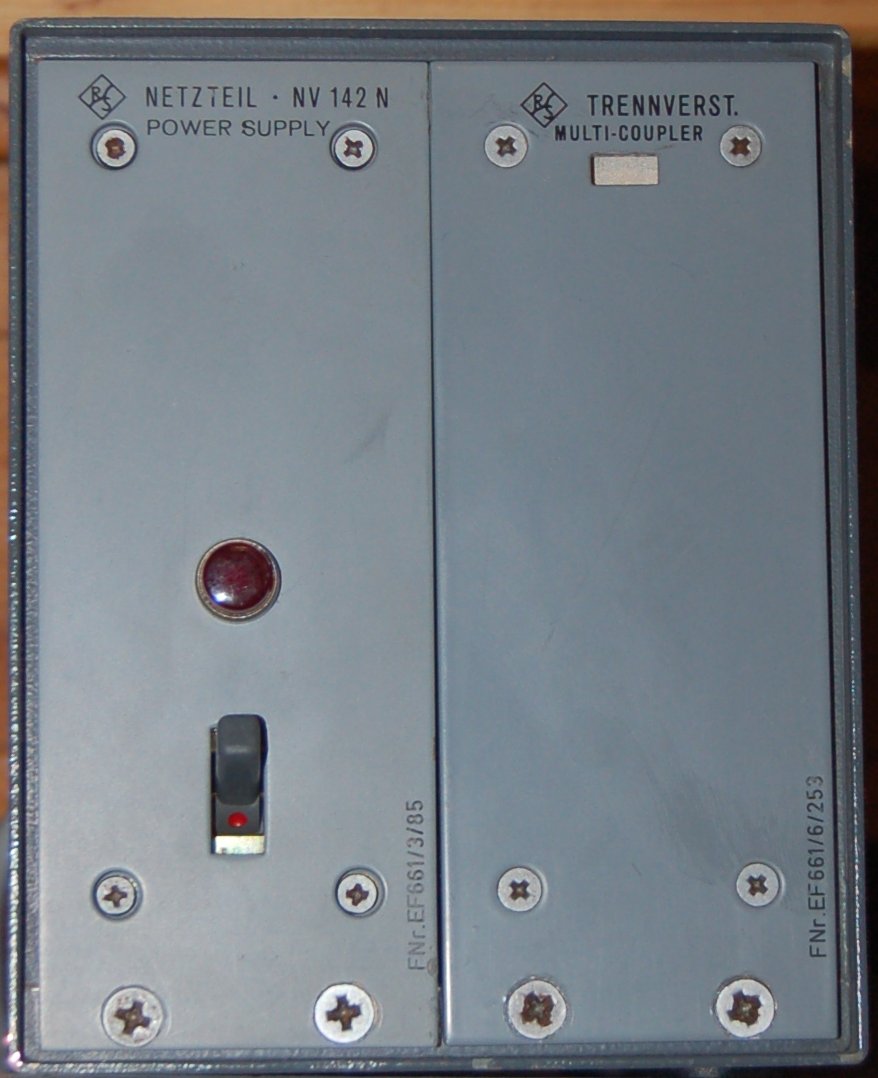

Multicoupler single unit rack

Last revision: 2006/04/03
