Rohde & Schwarz SHF antenna AC090

Technical data

This is only part of the full AC090 SHF antenna setup as it lacks the source antenna and the motorized position mounting.
I used part of the AC008 manual mounting to get a functional set which only needs an heavy tripod and the R&S ad-hoc source.
I'm now looking for these two items...

Here are some figures:
- Dish diameter D:900mm
- Depth from plane p:125mm
- Mounting ring planem:665mm
- Focal point f:405mm (D*D/16*p)

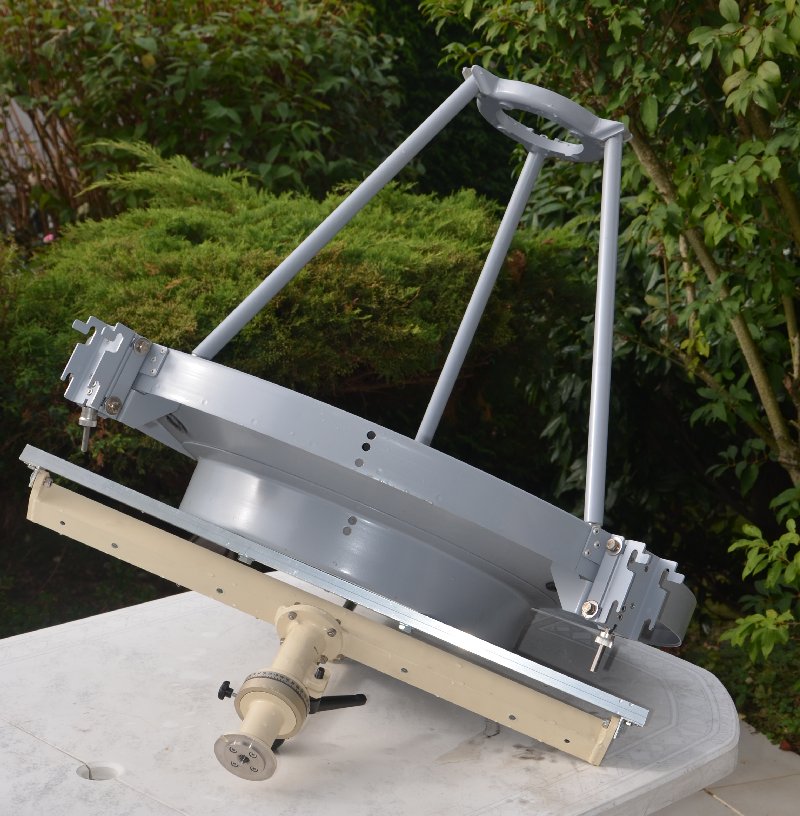

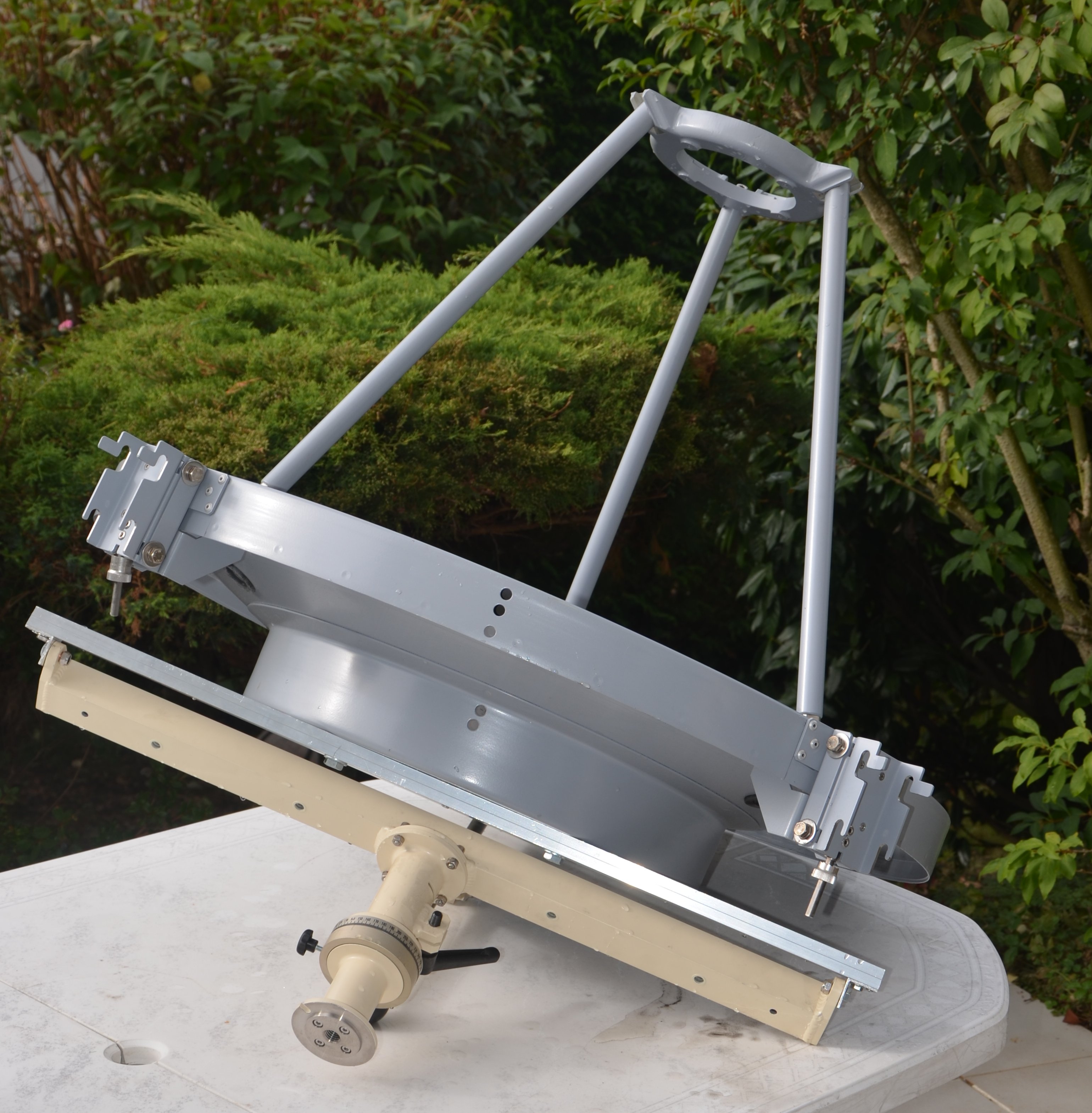

AC090 Unit

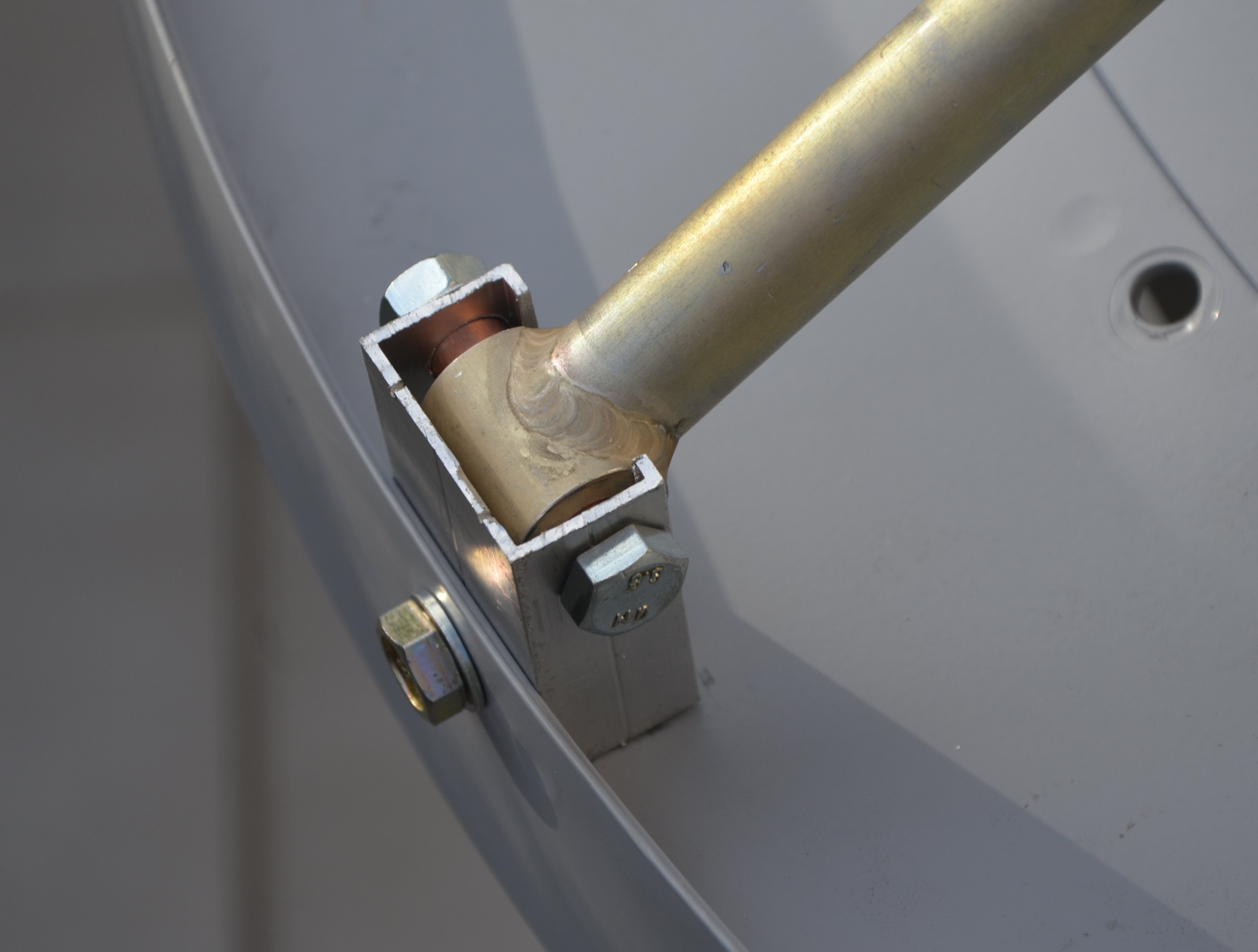

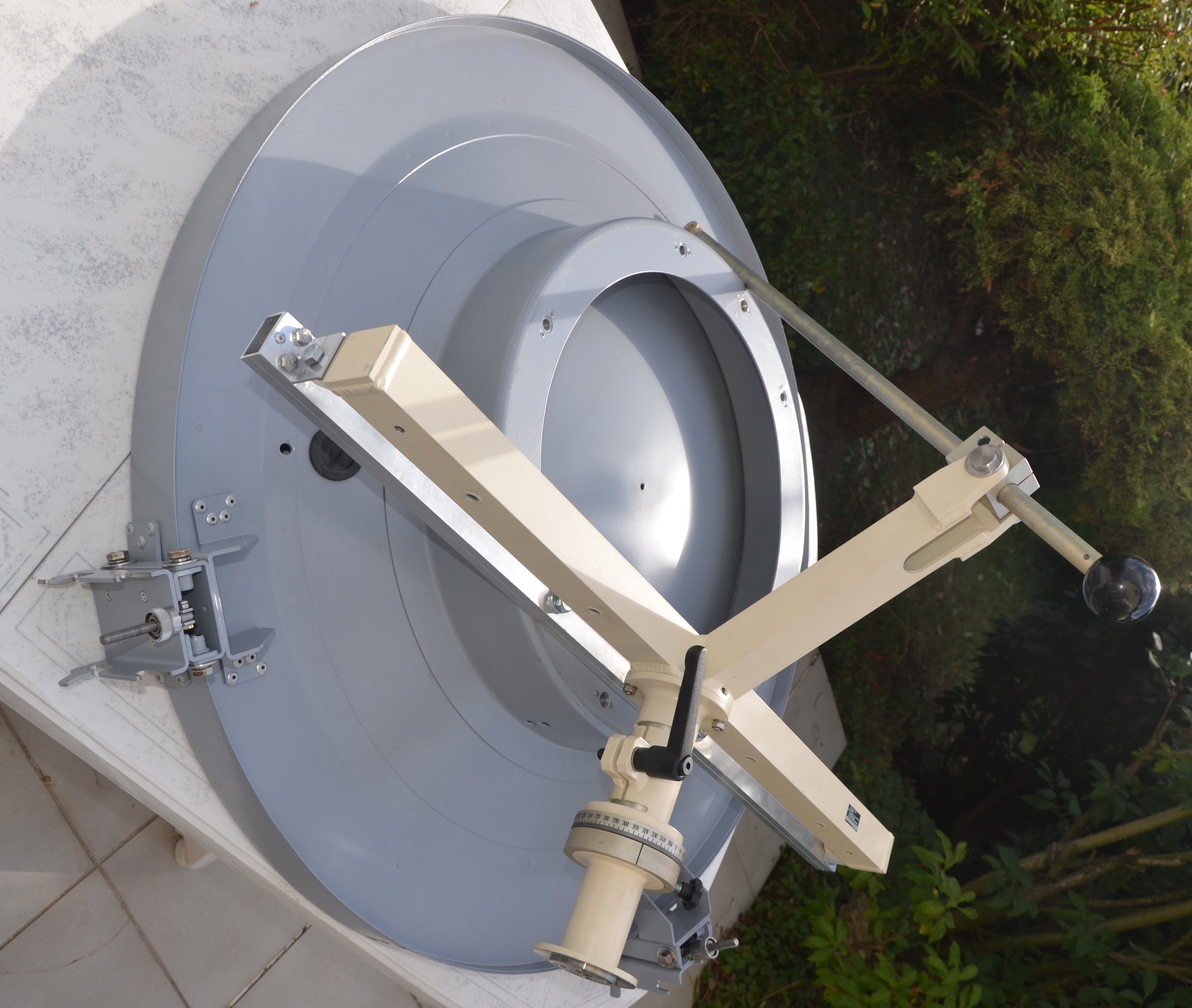

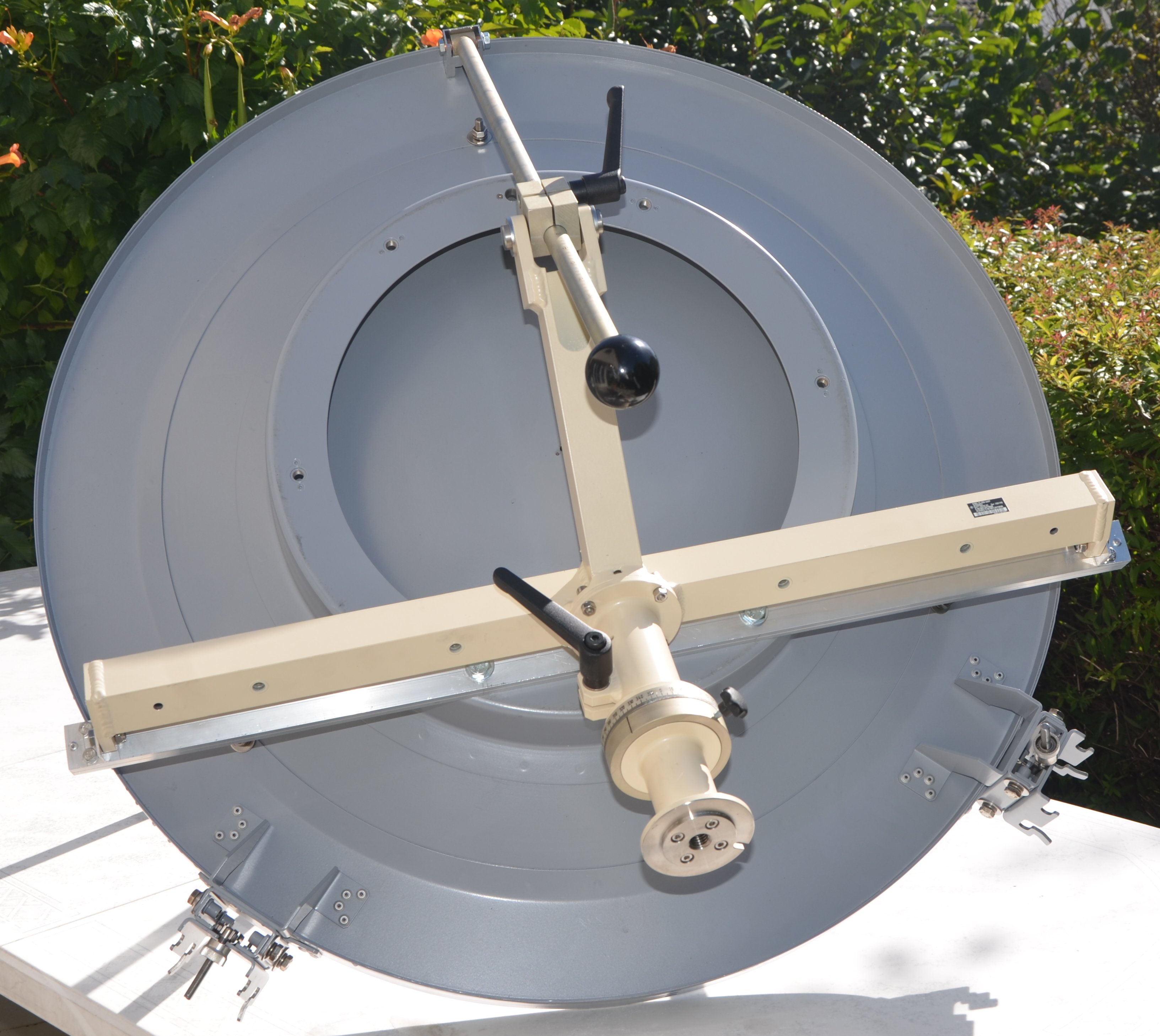

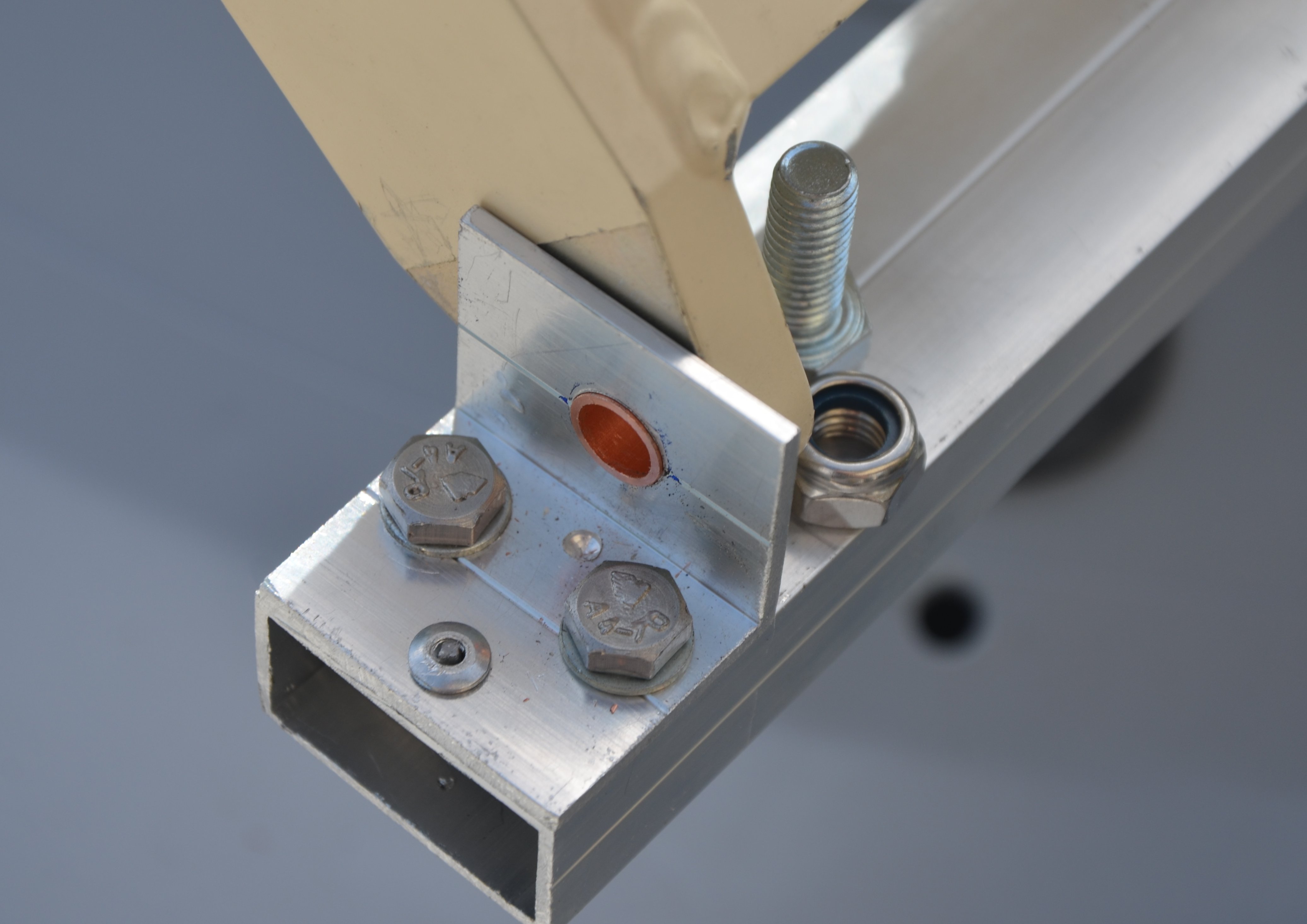

Home made mounting

Last revision: 2016/10/01
